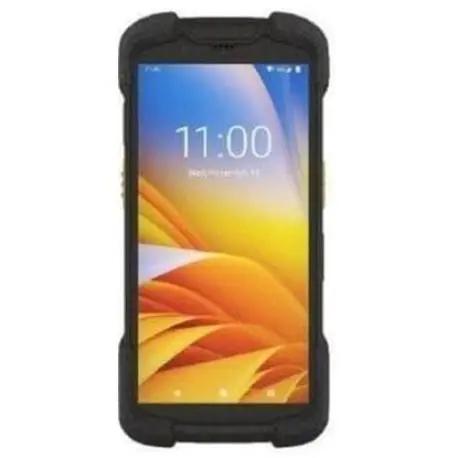

Zebra TC78 - Premium - data collection terminal - rugged - Android - 128 GB - 6" colour (1080 x 2160) - rear camera + front camera - barcode reader - (2D imager) - USB host - microSD slot - Bluetooth, NFC, Wi-Fi 6E - 5G, 4G - LTE - TAA Compliant
Zebra TC78 - Premium - data collection terminal - rugged - Android - 128 GB - 6" colour (1080 x 2160) - rear camera + front camera - barcode reader - (2D imager) - USB host - microSD slot - Bluetooth, NFC, Wi-Fi 6E - 5G, 4G - LTE - TAA Compliant
Manufacturer
•ZEBRA
Reference
•TC78B1-3T1K6E2E8A-A6
Article
•3220599
Intrastat
•84713000
Shipping weight
•0.349 kg
Product Type
Data collection terminal - rugged
Operating System
Android
Type
6" colour - LED backlight
Resolution
1080 x 2160
Touchscreen
Multi-Touch
Features
Optical bonding, Corning Gorilla glass, anti-fingerprint, anti-smudge, capacitive touch screen, glove touch mode
Processor
Qualcomm Snapdragon QCM6490
Processor Clock Speed
2.7 GHz
Number of Cores
8-core
Storage
128 GB
RAM
8 GB
Supported Flash Memory Cards
microSD
Max Supported Capacity
2 TB
Cellular Technology
5G, 4G
Cellular Protocols
5G, LTE
Band
LTE B1/B2/B3/B4/B5/B7/B8/B17/B20/B28/B38/B39/B40/B41/B42/B43/B66/B71 / 5G FR1 n1/n2/n3/n5/n7/n8/n20/n28/n38/n40/n41/n66/n71/n77/n78
Wireless Connectivity
Bluetooth 5.2 LE, NFC, 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
Security Protocols & Features
IPv6 support, AES, EAP-AKA, EAP-GTC, EAP-MSCHAPv2, EAP-PWD, EAP-SIM, EAP-TLS, EAP-TTLS, GCMP, LEAP, PEAPv0, PEAPv1, TKIP, WEP, WPA, WPA2, WPA2-Enterprise, WPA3-Enterprise, WPA3-OWE, WPA3-SAE, WPA-Enterprise, EAP-MSCHAP, IPv4 support
Sensor Resolution
16 Megapixel
Focus Adjustment
Automatic
Light Source
LED flash
Features
Torch mode, HDR video recording, OIS (Optical Image Stabilization)
Sensor Resolution
8 Megapixel
Receiver
GPS/A-GPS/Galileo/GLONASS/BeiDou/QZSS
Audio
Three microphones, stereo speakers
Barcode Reader
Yes
Scan Element Type
2D imager
RFID Specification
ISO 14443A, ISO 14443B, Felica, ISO 15693
Preloaded Software
Google Mobile Services
Expansion Slots
1 x microSD ¦ 1 x Nano-SIM card
Interfaces
1 x USB 2.0 ¦ 1 x USB-C 3.0
USB Host
Yes
Technology
PowerPrecision+ - Lithium Ion
Capacity
7000 mAh
Wireless Charging
Yes
Wireless Charging Standards
Qi
Sensors
Light sensor, magnetometer, pressure sensor, proximity sensor, 3-axis accelerometer with MEMS gyro
Features
Multi-colour LEDs, haptic feedback, warm swap, microphone with noise-cancellation, hot-swappable battery, 3.05 m drop to concrete resistant, Interactive Sensor Technology (IST), SE55 Advanced Range Scan Engine with IntelliFocus technology, 2x2 MiMo function, ESD protection up to 15 kV (air), ESD protection up to 8 kV (direct), ESD protection up to 8 kV (indirect), Qi Wireless Charging
Vibrating Alert
Yes
Compliant Standards
IP68, IP65, RoHS 2011/65/EU Amendment 2015/863, EN/IEC 63000:2018, FIPS 140-2, IEEE 802.11d, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11mc, IEEE 802.11r, IEEE 802.11v, IEEE 802.11w
Localisation
Rest of World
TAA Compliant
Yes
Width
8.58 cm
Depth
2.84 cm
Height
17.68 cm
Weight
349 g
Service & Support
Limited warranty - 1 year
Min Operating Temperature
-20 °C
Max Operating Temperature
50 °C
Humidity Range Operating
5 - 95% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
