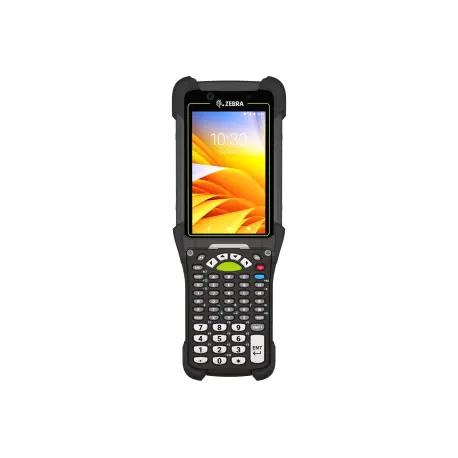

Zebra MC9000 Series MC9400 - Data collection terminal - rugged - Android 17 - 128 GB - 4.3\" colour (800 x 480) - barcode reader - (2D imager) - USB host - microSD slot - Wi-Fi 6E, Bluetooth, NFC
Zebra MC9000 Series MC9400 - Data collection terminal - rugged - Android 17 - 128 GB - 4.3\" colour (800 x 480) - barcode reader - (2D imager) - USB host - microSD slot - Wi-Fi 6E, Bluetooth, NFC
Manufacturer
•ZEBRA
Reference
•MC9401-0G1M6DSS-NA
Article
•4249995
Intrastat
•84713000
Manufacturer price
•3089.45 €
Product Type
Data collection terminal - rugged
Operating System
Android 17
Type
Touch-screen, alphanumeric keypad
Resolution
800 x 480
Features
Drop-resistant, cold-resistant, ESD protection, dustproof, water-proof, scratch-resistant, shatter-resistant, 2x2 MiMo function, Interactive Sensor Technology (IST), push-to-talk speaker, SE58 Extended Range Scan Engine with IntelliFocus technology
Processor
Qualcomm 4490
Processor Clock Speed
2.4 GHz
Number of Cores
8-core
Storage
128 GB
RAM
6 GB
Supported Flash Memory Cards
microSD, microSDHC, microSDXC
Max Supported Capacity
2 TB
Wireless Connectivity
802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3, NFC
Security Protocols & Features
WEP, WPA3-OWE, WPA, WPA2, TKIP, AES, WPA3-SAE, EAP-TTLS, PAP, MS-CHAP, MS-CHAPv2, EAP-TLS, PEAPv0, PEAPv1, EAP-GTC, LEAP, EAP-PWD, WPA3-Enterprise, GCMP
Audio
Microphone, speaker
Keys Qty
58
Barcode Reader
Yes
Scan Element Type
2D imager
RFID Specification
ISO 14443A, ISO 14443B, Felica, ISO 15693
Preloaded Software
Google Mobile Services
Expansion Slots
1 x microSD
Interfaces
1 x USB 2.0
USB Host
Yes
Technology
PowerPrecision+ - Lithium Ion
Capacity
7000 mAh
Sensors
3-axis accelerometer with MEMS gyro, eCompass, light sensor
Vibrating Alert
Yes
Compliant Standards
FIPS 140-2, MIL-STD-810H, Directive 2011/65/EU, EN/IEC 63000:2018
Localisation
North America
Width
8.8 cm
Depth
18.9 cm
Height
24 cm
Weight
743 g
Service & Support
Limited warranty - 1 year
Min Operating Temperature
-20 °C
Max Operating Temperature
50 °C
Humidity Range Operating
5 - 95% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
