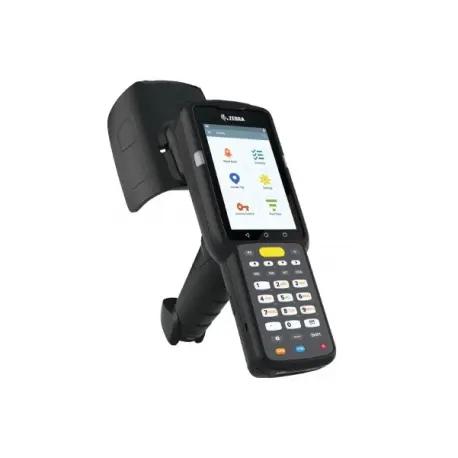

Zebra MC3330XR - Data collection terminal - rugged - Android 11 - 32 GB - 4\" colour (800 x 480) - barcode reader - (2D imager \/ RFID) - USB host - microSD slot - Wi-Fi 5, Bluetooth, Bluetooth, NFC - TAA Compliant
Zebra MC3330XR - Data collection terminal - rugged - Android 11 - 32 GB - 4\" colour (800 x 480) - barcode reader - (2D imager \/ RFID) - USB host - microSD slot - Wi-Fi 5, Bluetooth, Bluetooth, NFC - TAA Compliant
Manufacturer
•ZEBRA
Reference
•MC333U-GJ4EG4FTD2
Article
•4146217
Intrastat
•84713000
Product Type
Data collection terminal - rugged
Operating System
Android 11
Type
Alphanumeric keypad
Resolution
800 x 480
Features
Integrated circular polarised aerial, Interactive Sensor Technology (IST), Gun Form Factor, push-to-talk speaker, SE4770 Standard Range Array Imager, ESD protection, drop-resistant, Zebra Proprietary Radio Technology, vibration-resistant, 2x2 MiMo function, circular aerial
Processor
Qualcomm Snapdragon 660
Processor Clock Speed
2.2 GHz
Number of Cores
8-core
Storage
32 GB
RAM
4 GB
Supported Flash Memory Cards
microSD, microSDHC, microSDXC
Max Supported Capacity
512 GB
Wireless Connectivity
802.11a/b/g/n/ac, Bluetooth 5.0 EDR, Bluetooth 5.0 LE, NFC
Security Protocols & Features
LEAP, WEP, WPA-PSK, WPA2-PSK, TKIP, AES, EAP-TTLS, EAP-TLS, WPA2-Enterprise, PAP, PEAPv0, PEAPv1, EAP-MSCHAPv2, EAP-MSCHAP, EAP-PWD, WPA-Enterprise, GCMP, WPA3
Audio
Speaker
Keys Qty
47
Barcode Reader
Yes
Scan Element Type
2D imager / RFID
RFID Specification
UHF EPC Gen 2 V2, EPC Class 1 Generation 2, ISO/IEC 18000-63
Preloaded Software
Google Mobile Services
Expansion Slots
1 x microSD
Interfaces
1 x USB 2.0
USB Host
Yes
Technology
PowerPrecision+ - Lithium Ion
Capacity
7000 mAh
Recharge Time
5 hour(s)
Sensors
3-axis accelerometer with MEMS gyro
Included Accessories
Power adapter
Compliant Standards
IP54, FCC-15 (Class B), ICES-003 Class B, EN 301 489-1, EN 301 489-3, EN55024, EN 55032 Class B, UL 60950-1, CAN/CSA C22.2 No. 60950-1, IEC 60950-1, EN 60950-1, EN 50364, EN 62369-1, EN 50566, EN 62311, FCC Part 2, FCC OET Bulletin 65c, RSS-102, RoHS 2011/65/EU Amendment 2015/863, REACH 2006/1907, FIPS
Localisation
United States
TAA Compliant
Yes
Width
7.5 cm
Depth
21.1 cm
Height
16.4 cm
Weight
680 g
Service & Support
Limited warranty - 1 year
Min Operating Temperature
-20 °C
Max Operating Temperature
50 °C
Humidity Range Operating
5 - 95% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
