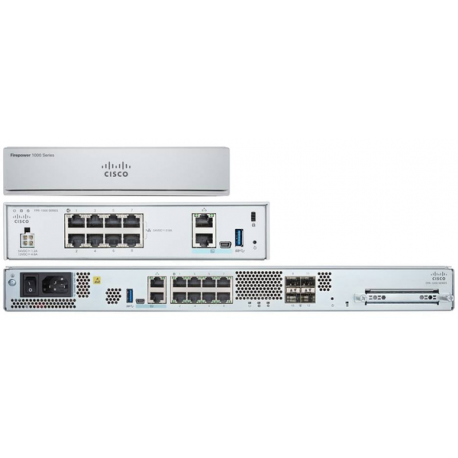

Cisco FirePOWER 1150 Next-Generation Firewall - Firewall - front to back airflow - 1U - rack-mountable
Cisco FirePOWER 1150 Next-Generation Firewall - Firewall - front to back airflow - 1U - rack-mountable
Ražotājs
•CISCO
Ražotāja kods
•FPR1150-NGFW-K9
Artikuls
•3125723
Intrastat
•85176990
Pakas svars
•3.63 kg
Device Type
Firewall
Height (Rack Units)
1U
Width
43.69 cm
Depth
26.87 cm
Height
4.37 cm
Weight
3.63 kg
Processors Installed
1 x Intel
RAM
32 GB DDR4 SDRAM
Hard Drive
SSD 200 GB x 1
Form Factor
Rack-mountable
Airflow Direction
Front to back airflow
Connectivity Technology
Wired
Performance
Firewall and Application Visibility and Control (AVC) throughput (1024B): 3 Gbps ¦ Firewall and Application Visibility and Control (AVC) and Intrusion Prevention System (IPS) throughput (1024B): 3 Gbps ¦ Transport Layer Security (TLS) throughput: 1.4 Gbps ¦ NGIPS throughput (1024B): 3 Gbps ¦ IPSec VPN throughput (1024B TCP w/Fastpath): 1.4 Gbps ¦ Maximum inspection throughput: 7.5 Gbps ¦ IPsec VPN throughput (450B UDP L2L test): 1.7 Gbps
Capacity
Maximum concurrent sessions with AVC: 600000 ¦ New connections per second with AVC: 28000 ¦ VPN peers: 800 ¦ Concurrent firewall connections: 600000 ¦ New connections per second: 150000
Features
1 fan
Interfaces
8 x 1000Base-T - RJ-45 ¦ 2 x 1000Base-X - SFP+ ¦ 1 x 1000Base-T (management) - RJ-45 ¦ 1 x serial - RJ-45 ¦ 1 x USB 3.0 - Type A ¦ 2 x 10GBase-X - SFP (mini-GBIC)
Included Accessories
Mounting brackets
Compliant Standards
CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, GB 4943, Directive 2004/108/EC, VCCI Class A, KN24, KN22 Class A, EN 55022 Class A, FCC CFR47 Part 15 A, CNS 13438 Class A, EN 300 386, TVCN 7317, Directive 2006/108/EC, TCVN 7189, CAN/CSA-C22.2 No. 60950-1, AS/NZS CISPR22 Class A
Power Device
Internal power supply
Installed Qty
1
Max Supported Qty
1
Voltage Required
AC 120/230 V (50/60 Hz)
Power Provided
100 Watt
Software Included
Cisco Threat Defense 6.5
Service & Support
Limited warranty - advance hardware replacement - 90 days - response time: 10 days
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
90% (non-condensing)
