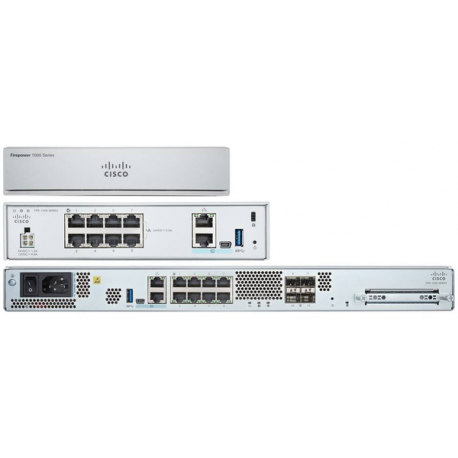

Cisco FirePOWER 1150 Next-Generation Firewall - Firewall - front to back airflow - 1U - rack-mountable
Cisco FirePOWER 1150 Next-Generation Firewall - Firewall - front to back airflow - 1U - rack-mountable
Manufacturer
•CISCO
Reference
•FPR1150-NGFW-K9
Article
•3125723
Intrastat
•85176990
Shipping weight
•3.63 kg
Total quantity in stocks
•2
Nearest delivery
•17.06.2026
Device Type
Firewall
Height (Rack Units)
1U
Width
43.69 cm
Depth
26.87 cm
Height
4.37 cm
Weight
3.63 kg
Processors Installed
1 x Intel
RAM
32 GB DDR4 SDRAM
Hard Drive
SSD 200 GB x 1
Form Factor
Rack-mountable
Airflow Direction
Front to back airflow
Connectivity Technology
Wired
Performance
Firewall and Application Visibility and Control (AVC) throughput (1024B): 3 Gbps ¦ Firewall and Application Visibility and Control (AVC) and Intrusion Prevention System (IPS) throughput (1024B): 3 Gbps ¦ Transport Layer Security (TLS) throughput: 1.4 Gbps ¦ NGIPS throughput (1024B): 3 Gbps ¦ IPSec VPN throughput (1024B TCP w/Fastpath): 1.4 Gbps ¦ Maximum inspection throughput: 7.5 Gbps ¦ IPsec VPN throughput (450B UDP L2L test): 1.7 Gbps
Capacity
Maximum concurrent sessions with AVC: 600000 ¦ New connections per second with AVC: 28000 ¦ VPN peers: 800 ¦ Concurrent firewall connections: 600000 ¦ New connections per second: 150000
Features
1 fan
Interfaces
8 x 1000Base-T - RJ-45 ¦ 2 x 1000Base-X - SFP+ ¦ 1 x 1000Base-T (management) - RJ-45 ¦ 1 x serial - RJ-45 ¦ 1 x USB 3.0 - Type A ¦ 2 x 10GBase-X - SFP (mini-GBIC)
Included Accessories
Mounting brackets
Compliant Standards
CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, GB 4943, Directive 2004/108/EC, VCCI Class A, KN24, KN22 Class A, EN 55022 Class A, FCC CFR47 Part 15 A, CNS 13438 Class A, EN 300 386, TVCN 7317, Directive 2006/108/EC, TCVN 7189, CAN/CSA-C22.2 No. 60950-1, AS/NZS CISPR22 Class A
Power Device
Internal power supply
Installed Qty
1
Max Supported Qty
1
Voltage Required
AC 120/230 V (50/60 Hz)
Power Provided
100 Watt
Software Included
Cisco Threat Defense 6.5
Service & Support
Limited warranty - advance hardware replacement - 90 days - response time: 10 days
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
90% (non-condensing)
