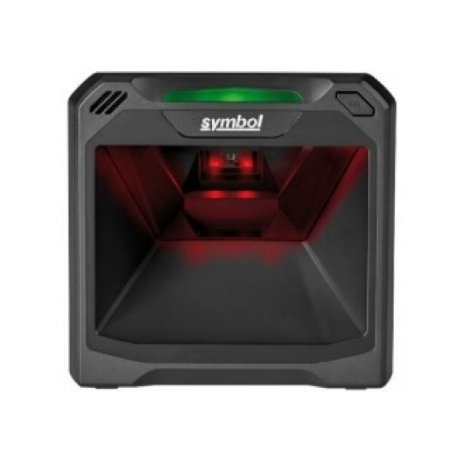

Symbol DS7708-SR - Barcode scanner - desktop - 2D imager - 2540 mm / sec - decoded - RS-232
Symbol DS7708-SR - Barcode scanner - desktop - 2D imager - 2540 mm / sec - decoded - RS-232
Ražotājs
•ZEBRA
Ražotāja kods
•DS7708-SR4R0110TCE
Artikuls
•1387190
Intrastat
•84719000
Pakas svars
•0.5 kg
Type
Barcode scanner - desktop - stationary
Colour
Midnight black
Localisation
EMEA
Interface Type
RS-232
Minimum Bar Width
3 mil
Scan Element Type
2D imager
Sensor Resolution
1280 x 960
Light Source Wave Length
660 nm
Scan Speed
2540 mm / sec
Max Working Distance
26.1 cm
Skew (Degrees)
70
Pitch (Degrees)
70
Print Contrast Signal (PCS)
25%
Decode Capability
EAN/JAN, Code 93, Code 39, NW-7, GS1 DataBar, QR code, MaxiCode, Aztec code, MicroPDF417, Italy Pharmacode, Codabar, Code 128, Code 11, UPC, PDF417, MSI-Plessey, Data Matrix, TLC39, Micro QR code, China Han Xin Code
TTL Decoding
Decoded
Connectivity Technology
Wired
OK Notification
Beeper, LED indicator
Features
Checkpoint Electronic Article Surveillance (EAS)
Interfaces
1 x RS-232
Included Accessories
Table mount kit
Cables Included
1 x serial cable - external - 2.13 m
Compliant Standards
EN 61000-4-2, 256-bit SSL, IP52
Power Device
Power adapter
Width
14.9 cm
Depth
9.7 cm
Height
14.3 cm
Weight
500 g
Service & Support
Limited warranty - parts and labour - 3 years
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
5 - 85% (non-condensing)
