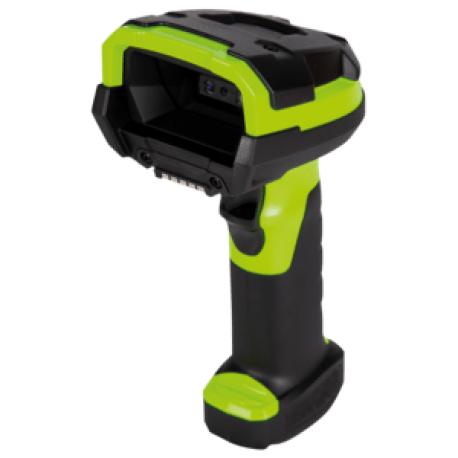

Zebra DS3608-XR - Ethernet Kit - barcode scanner - handheld - ER - 2D imager - decoded - interface cable required - TAA Compliant
Zebra DS3608-XR - Ethernet Kit - barcode scanner - handheld - ER - 2D imager - decoded - interface cable required - TAA Compliant
Ražotājs
•ZEBRA
Ražotāja kods
•DS3608-XR3RF50AZVW
Artikuls
•3464312
Intrastat
•84716070
Pakas svars
•0.308 kg
Ražotāja cena
•1180.00 €
Kopā pieejams (gab.)
•5
Tuvākā piegāde
•23.03.2026
Handheld scanner, industry, 2D, imager (extended range, SE5800), FIPS, vibration, multi-interface (RS232, KBW, USB), cable (RS232), Ethernet Adapter, IP67, black, green
Type
Barcode scanner - handheld
Colour
Industrial green
Interface Type
Interface cable required
Minimum Bar Width
5 mil
Scan Engine Focus Range
Extended Range (ER)
Scan Element Type
2D imager
Sensor Resolution
1920 x 1080
Light Source Wave Length
520 nm
Scan Mode
Single-pass
Skew (Degrees)
60
Pitch (Degrees)
60
Print Contrast Signal (PCS)
25%
Decode Capability
Code 93, Code 39, Code 128, Codabar, NW-7, Code 11, MSI-Plessey, UPC/EAN extension, Industrial 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32, Italy Pharmacode, PDF417, MicroPDF417, Composite Codes, TLC39, Aztec, Data Matrix, MaxiCode, QR code, Micro QR code, Chinese Sensible Code, Han Xin, Postal Code
TTL Decoding
Decoded
Connectivity Technology
Wired
OK Notification
Beeper, LED indicator, vibration
Features
Rugged, Human Interface Device Profile (HID), Serial Port Profile (SPP), 25 kV ESD protection (air discharge), 10 kV ESD protection (direct discharge), 10 kV ESD protection (indirect discharge), Digimarc Barcode Technology
Interfaces
1 x keyboard wedge / USB / RS-232
Included Accessories
Network adapter
Cables Included
1 x serial cable
TAA Compliant
Yes
Compliant Standards
IP67, EN 50581:2012, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+AC:2011, RoHS, IEC 60950-1:2005 + A1:2009 + A2:2013, CAN/CSA C22.2 No. 60950-1-07, UL 60950-1 Second Edition, CU, EN 62471:2008, IEC 62471:2006, UL, VDE, EN 55022:2010/AC:2011, EN 55024:2010, EN 61000-3-2:2006+A1:2009+A2:2009, EN 61000-6-2, EN 60601-1-2:2007, EN 61000-3-3:2013, FCC CFR47 Part 15 B Class B, ICES-003 issue 5 Class B, IEC 60601-1-2:2007, FIPS 140-3
Width
7.6 cm
Depth
13.2 cm
Height
18.5 cm
Weight
308 g
Service & Support
Limited warranty - 3 years
Min Operating Temperature
-30 °C
Max Operating Temperature
50 °C
Humidity Range Operating
5 - 95% (non-condensing)
Drop Specification
2.4 m to concrete
