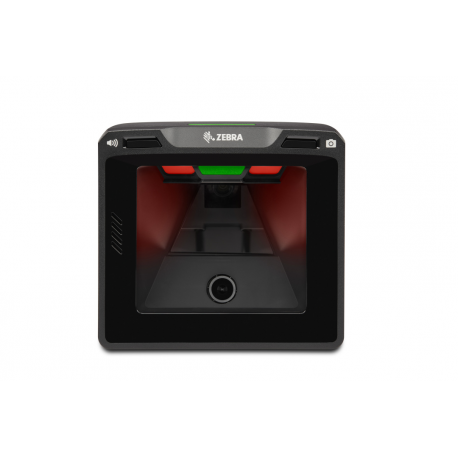

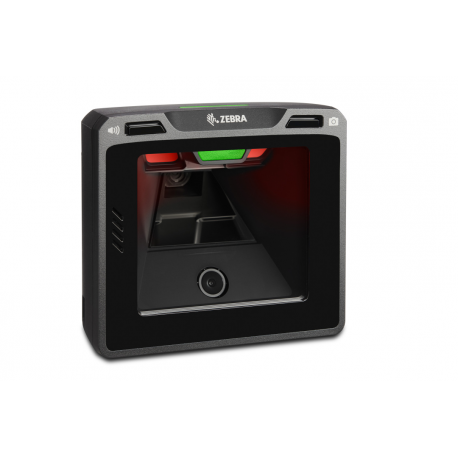

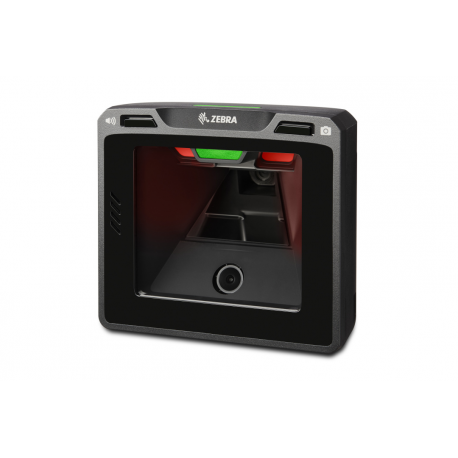

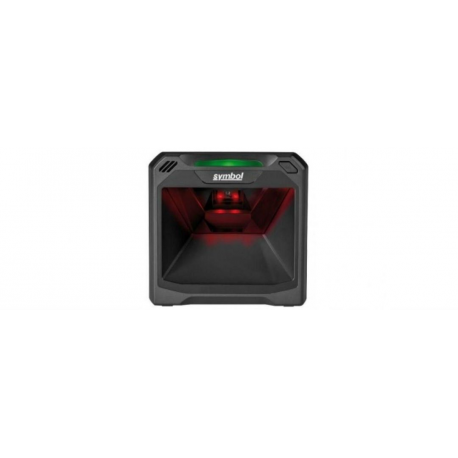

Zebra SP72 Series SP7208-V - USB Kit - barcode scanner - desktop - 2D imager - decoded - RS-232
Zebra SP72 Series SP7208-V - USB Kit - barcode scanner - desktop - 2D imager - decoded - RS-232
Ražotājs
•ZEBRA
Ražotāja kods
•SP7208-SV4U2100TZW
Artikuls
•3213190
Intrastat
•84716070
Pakas svars
•0.577 kg
Kopā pieejams (gab.)
•98
Tuvākā piegāde
•23.03.2026
Type
Barcode scanner - desktop - stationary
Colour
Midnight black
Interface Type
RS-232
Minimum Bar Width
3 mil
Scan Element Type
2D imager - white LED / red LED
Sensor Resolution
1920 x 1080
Light Source Wave Length
660 nm
Scan Mode
Single-pass
Max Working Distance
22.9 cm
Skew (Degrees)
70
Pitch (Degrees)
60
Print Contrast Signal (PCS)
15%
Decode Capability
Code 39, Code 128, Code 93, Codabar, NW-7, Code 11, MSI-Plessey, UPC/EAN supplementals, Korean 3 of 5, Industrial 2 of 5, GS1 DataBar, Base 32, Italy Pharmacode, PDF417, MicroPDF417, Composite Codes, TLC39, Aztec code, Data Matrix, MaxiCode, QR code, Micro QR code, Han Xin, SecurPharm, Postal Code, Digimarc Barcode
TTL Decoding
Decoded
Connectivity Technology
Wired
OK Notification
LED indicator, beeper
Features
15 kV ESD protection (air discharge), 25 kV ESD protection (direct discharge), 8 kV ESD protection (indirect discharge)
Interfaces
1 x RS-232 - RJ-45
Included Accessories
Table mount bracket, riser mount bracket
Cables Included
1 x USB to RJ-45 console cable - external
Compliant Standards
IP52, EN 61000-4-2, CAN/CSA-C22.2 No. 62368-1-14, EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3, EN IEC 63000:2019, EN55024, FCC 47 CFR part 15 B class B, ICES-003 issue 7 Class B, IEC/EN 62368-1, IEC/EN 62471, UL 62368-1
Voltage
DC 5 V
Electric Current Required
480 mA
Width
15.2 cm
Depth
8.4 cm
Height
13.7 cm
Weight
577 g
Service & Support
Limited warranty - 3 years
Min Operating Temperature
0 °C
Max Operating Temperature
50 °C
Humidity Range Operating
20 - 95% RH (non-condensing)
Zebra - Power cableKods: CBL-DC-376A1-01
Zebra - Serial cable - DB-9 (F) to RJ-45 (M) - 2.13 m - for Symbol LS2208Kods: CBA-R08-S07ZBR
Zebra - Data cableKods: CBL-CE0072
Zebra - Serial cable - DB-9 (F) - 2.13 m - for Symbol LS2208Kods: CBA-R01-S07PBR
Zebra - Power adapter - China - for Symbol LS2208; Smart Badge SB1Kods: PWR-WUA5V4W0CN
Zebra - Power adapter - for Symbol LS2208; Zebra LI4278Kods: PWR-WUA5V4W0US
Color Camera Cable for SP72-V, SM72Kods: CBL-CC0072
Zebra - Power adapter - AC 100-240 V - 50 WattKods: PWR-BGA12V50W0WW
Zebra - Glass platterKods: MISC-DG0072
Zebra - Glass platterKods: MISC-SG0072
