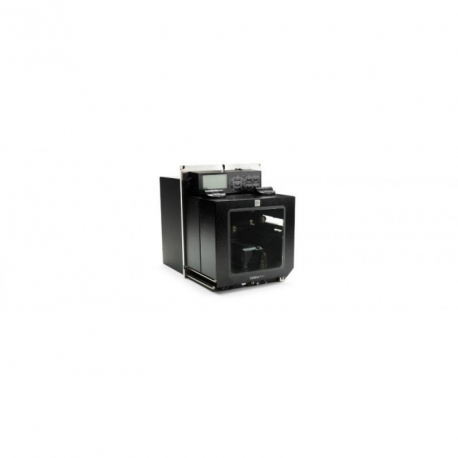

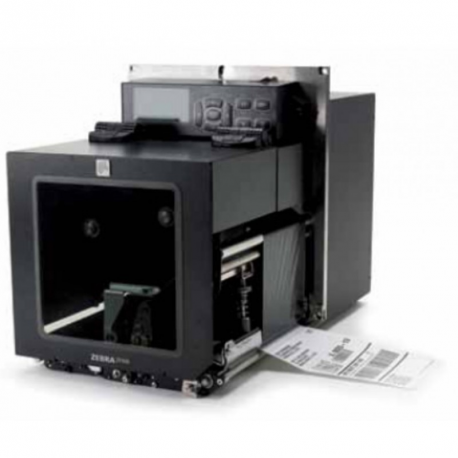

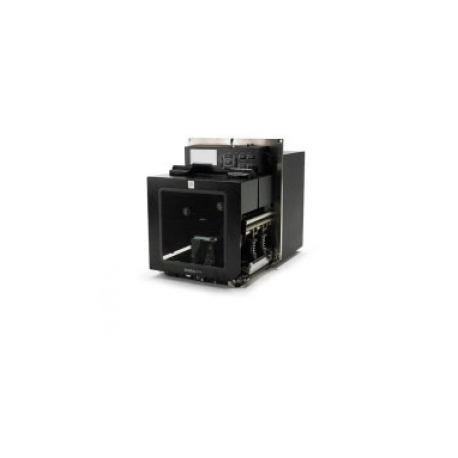

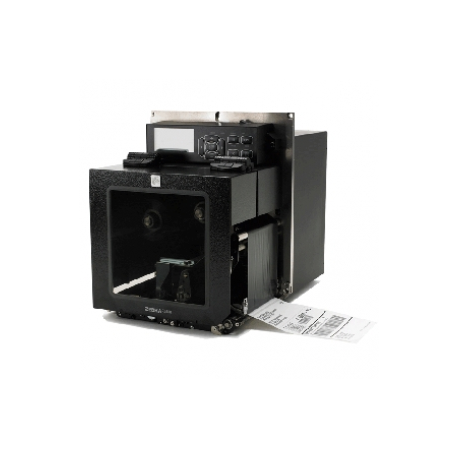

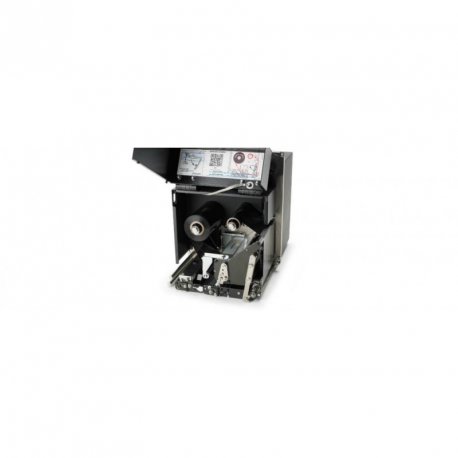

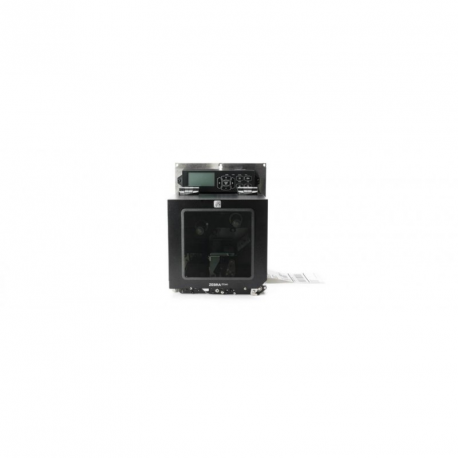

Zebra ZE500-4 - Label printer - direct thermal / thermal transfer - Roll (11.4 cm) - 203 dpi - up to 305 mm / sec - parallel, USB 2.0, LAN, serial
Zebra ZE500-4 - Label printer - direct thermal / thermal transfer - Roll (11.4 cm) - 203 dpi - up to 305 mm / sec - parallel, USB 2.0, LAN, serial
Ražotājs
•ZEBRA
Ražotāja kods
•ZE50042-L0E0000Z
Artikuls
•460927
Intrastat
•84433210
Pakas svars
•15.4 kg
USBParalēlais portsSeriālais portsTiešā pārneseTermālpārnese203 dpi104 mm
Printer Type
Label printer - direct thermal / thermal transfer - monochrome
Localisation
United Kingdom, Europe
Print Speed
Up to 305 mm/sec - B/W - 203 dpi
Built-in Devices
Status LCD, Applicator Interface Port
Connectivity Technology
Wired
Interface
Parallel, USB 2.0, LAN, serial
Max Resolution (B&W)
203 dpi
Language Simulation
ZPL, ZPL II, Extensible Mark-up Language (XML)
Fonts
CG Triumvirate Bold Condensed
Features
Realtime clock
Barcodes
Code 93, Industrial 2 of 5, Code 39, Code 49, CODABLOCK, ISBT 128, QR code, MaxiCode, Aztec code, LOGMARS, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 11, Interleaved 2 of 5, Postnet, PDF417, MSI-Plessey, Data Matrix, PLANET, TLC39, Plessey, Code 128B, Code 128C, Code 128A, Standard 2 of 5
Printer Features
Left-hand orientation, Multi-level Element Energy Equalizer (E3)
Processor
133 MHz
RAM Installed (Max)
16 MB
Technology / Form Factor
SDRAM
Flash Memory
64 MB
Media Type
Continuous forms, die cut labels
Max Media Size
Roll (11.4 cm)
Min Media Size (Custom)
16 mm
Max Media Size (Custom)
114 mm x 991 mm
Media Sizes
Roll (1.6 - 11.4 cm)
Max Printing Width
104 mm
Max Printing Length
3810 mm
Media Thickness Range
0.135 mm - 0.254 mm
Roll Maximum Outer Diameter
101.6 mm
Roll Core Diameter
25.4 mm
Networking
Print server
Network Controller Name
ZebraNet 10/100 Print Server
Connections
1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x LAN - RJ-45 ¦ 1 x USB 2.0 ¦ 1 x parallel
Included Accessories
Reflective media sensor, transmissive media sensor
Compatible with Windows 7
"Compatible with Windows 7" software and devices carry Microsoft’s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7.
Compliant Standards
FCC Class A certified, VCCI, C-Tick, BSMI, EN 61000-3-2, ICES-003, NOM, EN 61000-3-3, EN55024, EN55022 Class A, CCC, IEC 60950-1, KCC, GOST-R, S Mark, NRTL
Power Device
Power supply - internal
Voltage Required
AC 120/230 V
Frequency Required
50/60 Hz
Power Factor Correction
Yes
OS Required
Microsoft Windows Vista / XP / 7, Microsoft Windows 2003, Microsoft Windows Server 2008
Min Operating Temperature
5 °C
Max Operating Temperature
40 °C
Humidity Range Operating
20 - 85% (non-condensing)
Width
24.5 cm
Depth
38 cm
Height
30 cm
Weight
15.4 kg
Zebra 1ROLL Z-PERF 1000D.102X152 MMKods: 87809
Kit Media Guide Posts ZE500-4 RH & LHKods: P1046696-053
Zebra - Printhhead open sensorKods: P1046696-033
Kit Media Guide Posts ZE500-6 RH & LHKods: P1046696-054
Zebra - Dispenser front bezelKods: P1079903-022
Zebra - Window for media coverKods: P1046696-080
Zebra - Media guides kitKods: P1046696-061
Zebra - Media door open sensorKods: P1046696-032
Zebra - Media drive beltsKods: P1046696-146
Zebra - Printer roller plate - for Zebra ZE500-4Kods: P1046696-071
Zebra - Roller platesKods: P1046696-070
Zebra - Printed circuit board assembly voltage regulatorKods: P1046696-020
Zebra - Ribbon sensor kitKods: P1046696-031
Zebra - Media drive beltsKods: P1046696-145
Zebra - Printer toggle kit - for Zebra ZE500-4, ZE500-6Kods: P1046696-011
Zebra - Printer spindle (pack of 2) - for Zebra ZE500-4Kods: P1046696-037
Zebra - Ribbon take-up / supply spindle assembly kitKods: P1046696-038
Zebra Platen Roller Kit - Printer platen roller - for Zebra ZE500-4Kods: P1046696-072
Zebra - Hinge kit (pack of 2)Kods: P1046696-081
Zebra - Printer roller kit - for Zebra ZE500-4Kods: P1046696-055
Zebra - Printer platen roller - for Zebra ZE500-6Kods: P1046696-073
Zebra - Peel bar kitKods: P1046696-074
Zebra - Ribbon rollers right and left handKods: P1046696-042
Zebra - Printer roller kit - for Zebra ZE500-4Kods: P1046696-056
Zebra - Hardware mounting kit - for Zebra ZE500, ZE500-4, ZE500-6Kods: P1046696-045
Zebra - Print mechanism right handKods: P1046696-115
Kit Print Mechanism ZE500-4 LHKods: P1046696-116
Zebra - Peel bar kitKods: P1046696-075
Zebra - Ribbon rollers right and left handKods: P1046696-041
Zebra - Peel bracket assembly - for Zebra ZE500-4Kods: P1046696-109
Zebra - Media sensor left hand kitKods: P1046696-028
Zebra - Printer media sensor - for Zebra ZE500-4Kods: P1046696-027
Zebra - Packaging kitKods: P1046696-095
Zebra - Spare parts kit - for Zebra ZE500-6Kods: P1046696-060
Zebra - Media sensorKods: P1046696-030
ZE500-6, MEDIA SENSOR, RHKods: P1046696-029
Zebra - Electronic cover kitKods: P1046696-084
Zebra - Print mechanism left handKods: P1046696-118
Zebra - Print mechanism right handKods: P1046696-117
Zebra - Media cover kitKods: P1046696-077
Zebra - Media cover right handKods: P1046696-076
Kit Media Cover ZE500-6 RHKods: P1046696-078
Zebra - Media cover left handKods: P1046696-079
Zebra - Assorted hardwareKods: P1046696-096
Zebra - Printer interface kit - for Zebra ZE500-4, ZE500-6Kods: P1046696-018
Zebra - 203 dpi - printhead - for Zebra ZE500-4Kods: P1046696-099
Zebra - Ribbon drive system left handKods: P1046696-138
Zebra - Ribbon drive system right handKods: P1046696-136
Zebra - Ribbon motor control PCBA right handKods: P1046696-135
Zebra - Ribbon drive system left handKods: P1046696-137
Zebra - Printhead conversion kit - for Zebra ZE500-4Kods: P1046696-004
Zebra - Convert 300 to 203dpi RH and LHKods: P1046696-141
Zebra - Media drive motor left handKods: P1046696-126
Zebra - Media drive motor right handKods: P1046696-125
Zebra - Power supply (internal) - for Zebra ZE500-4, ZE500-6Kods: P1046696-021
Zebra - Kit DC power supplyKods: P1046696-132
Zebra - 300 dpi - printhead - for Zebra ZE500-4Kods: P1046696-016
Zebra Extended Life - 203 dpi - printhead - for Zebra ZE500-4Kods: P1079036-005
Zebra - Convert 203 to 300dpi RH and LHKods: P1046696-003
Zebra - Control panel with cableKods: P1046696-082
PRINTHEAD CONVERT 300 TO 203DPI ZE500-6Kods: P1046696-143
Zebra Extended Life - 300 dpi - printhead - for Zebra ZE500-4Kods: P1079036-006
Zebra - Printhead conversion kit - for Zebra ZE500-6Kods: P1046696-006
Zebra - Convert kit 203 to 300 dpi RH and LHKods: P1046696-142
MEDIA DRIVE SYSTEM EXTDED 203DPI ZE500RHKods: P1046696-147
Zebra - Media drive system 300 dpi left handKods: P1046696-149
MEDIA DRIVE SYS EXT LIFE 300DPI ZE500 LHKods: P1046696-150
KIT Drive Sys. Ext. Life 300dpi ZE500 RHKods: P1046696-148
Zebra - Main logic boardKods: P1046696-017
Zebra - Printer RFID upgrade kit - for Zebra ZE500-4Kods: P1046696-500R1
