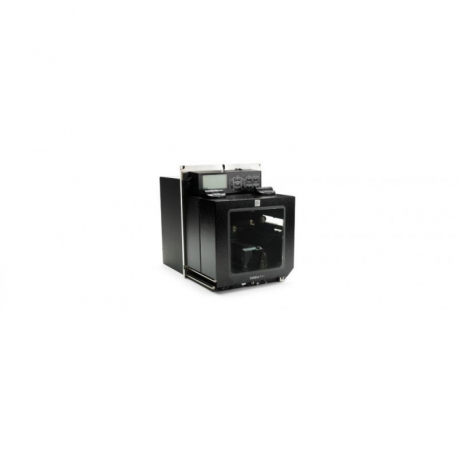

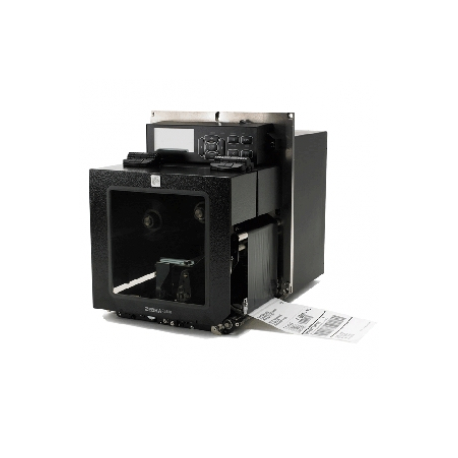

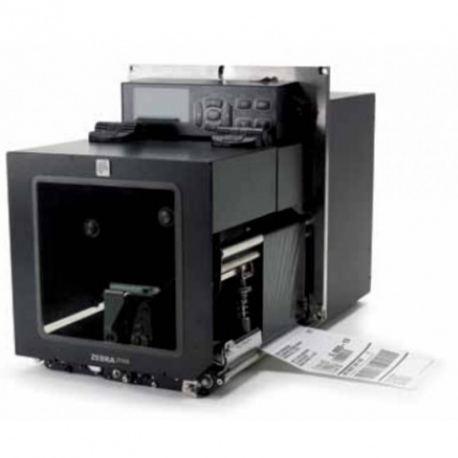

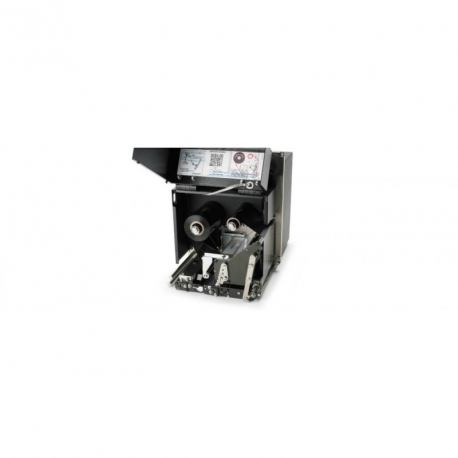

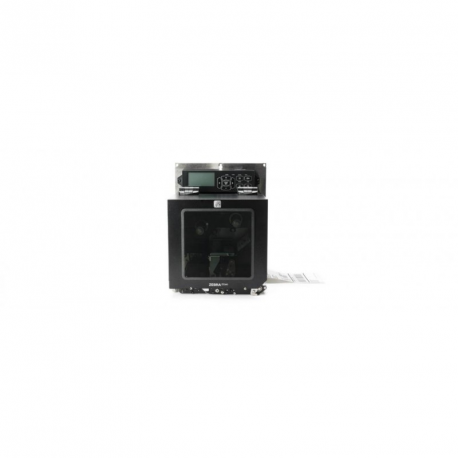

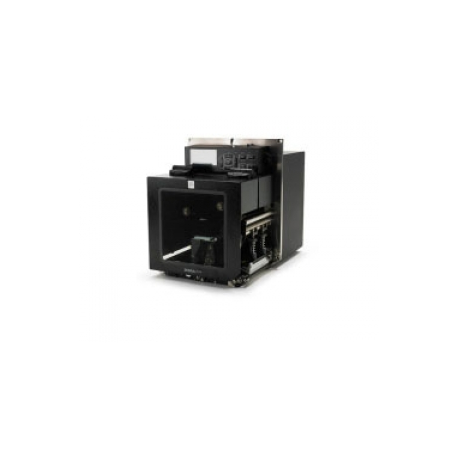

Zebra ZE500-4 - Label printer - direct thermal / thermal transfer - Roll (11.4 cm) - 203 dpi - up to 305 mm / sec - parallel, USB 2.0, LAN, serial
Zebra ZE500-4 - Label printer - direct thermal / thermal transfer - Roll (11.4 cm) - 203 dpi - up to 305 mm / sec - parallel, USB 2.0, LAN, serial
Manufacturer
•ZEBRA
Reference
•ZE50042-L0E0000Z
Article
•460927
Intrastat
•84433210
Shipping weight
•15.4 kg
USBParallel portSerial portDirect thermalThermal transfer203 dpi104 mm
Printer Type
Label printer - direct thermal / thermal transfer - monochrome
Localisation
United Kingdom, Europe
Print Speed
Up to 305 mm/sec - B/W - 203 dpi
Built-in Devices
Status LCD, Applicator Interface Port
Connectivity Technology
Wired
Interface
Parallel, USB 2.0, LAN, serial
Max Resolution (B&W)
203 dpi
Language Simulation
ZPL, ZPL II, Extensible Mark-up Language (XML)
Fonts
CG Triumvirate Bold Condensed
Features
Realtime clock
Barcodes
Code 93, Industrial 2 of 5, Code 39, Code 49, CODABLOCK, ISBT 128, QR code, MaxiCode, Aztec code, LOGMARS, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 11, Interleaved 2 of 5, Postnet, PDF417, MSI-Plessey, Data Matrix, PLANET, TLC39, Plessey, Code 128B, Code 128C, Code 128A, Standard 2 of 5
Printer Features
Left-hand orientation, Multi-level Element Energy Equalizer (E3)
Processor
133 MHz
RAM Installed (Max)
16 MB
Technology / Form Factor
SDRAM
Flash Memory
64 MB
Media Type
Continuous forms, die cut labels
Max Media Size
Roll (11.4 cm)
Min Media Size (Custom)
16 mm
Max Media Size (Custom)
114 mm x 991 mm
Media Sizes
Roll (1.6 - 11.4 cm)
Max Printing Width
104 mm
Max Printing Length
3810 mm
Media Thickness Range
0.135 mm - 0.254 mm
Roll Maximum Outer Diameter
101.6 mm
Roll Core Diameter
25.4 mm
Networking
Print server
Network Controller Name
ZebraNet 10/100 Print Server
Connections
1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x LAN - RJ-45 ¦ 1 x USB 2.0 ¦ 1 x parallel
Included Accessories
Reflective media sensor, transmissive media sensor
Compatible with Windows 7
"Compatible with Windows 7" software and devices carry Microsoft’s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7.
Compliant Standards
FCC Class A certified, VCCI, C-Tick, BSMI, EN 61000-3-2, ICES-003, NOM, EN 61000-3-3, EN55024, EN55022 Class A, CCC, IEC 60950-1, KCC, GOST-R, S Mark, NRTL
Power Device
Power supply - internal
Voltage Required
AC 120/230 V
Frequency Required
50/60 Hz
Power Factor Correction
Yes
OS Required
Microsoft Windows Vista / XP / 7, Microsoft Windows 2003, Microsoft Windows Server 2008
Min Operating Temperature
5 °C
Max Operating Temperature
40 °C
Humidity Range Operating
20 - 85% (non-condensing)
Width
24.5 cm
Depth
38 cm
Height
30 cm
Weight
15.4 kg
Zebra 1ROLL Z-PERF 1000D.102X152 MMCode: 87809
Kit Media Guide Posts ZE500-4 RH & LHCode: P1046696-053
Zebra - Printhhead open sensorCode: P1046696-033
Kit Media Guide Posts ZE500-6 RH & LHCode: P1046696-054
Zebra - Dispenser front bezelCode: P1079903-022
Zebra - Window for media coverCode: P1046696-080
Zebra - Media guides kitCode: P1046696-061
Zebra - Media door open sensorCode: P1046696-032
Zebra - Media drive beltsCode: P1046696-146
Zebra - Printer roller plate - for Zebra ZE500-4Code: P1046696-071
Zebra - Roller platesCode: P1046696-070
Zebra - Printed circuit board assembly voltage regulatorCode: P1046696-020
Zebra - Ribbon sensor kitCode: P1046696-031
Zebra - Media drive beltsCode: P1046696-145
Zebra - Printer toggle kit - for Zebra ZE500-4, ZE500-6Code: P1046696-011
Zebra - Printer spindle (pack of 2) - for Zebra ZE500-4Code: P1046696-037
Zebra - Ribbon take-up / supply spindle assembly kitCode: P1046696-038
Zebra Platen Roller Kit - Printer platen roller - for Zebra ZE500-4Code: P1046696-072
Zebra - Hinge kit (pack of 2)Code: P1046696-081
Zebra - Printer roller kit - for Zebra ZE500-4Code: P1046696-055
Zebra - Printer platen roller - for Zebra ZE500-6Code: P1046696-073
Zebra - Peel bar kitCode: P1046696-074
Zebra - Ribbon rollers right and left handCode: P1046696-042
Zebra - Printer roller kit - for Zebra ZE500-4Code: P1046696-056
Zebra - Hardware mounting kit - for Zebra ZE500, ZE500-4, ZE500-6Code: P1046696-045
Zebra - Print mechanism right handCode: P1046696-115
Kit Print Mechanism ZE500-4 LHCode: P1046696-116
Zebra - Peel bar kitCode: P1046696-075
Zebra - Ribbon rollers right and left handCode: P1046696-041
Zebra - Peel bracket assembly - for Zebra ZE500-4Code: P1046696-109
Zebra - Media sensor left hand kitCode: P1046696-028
Zebra - Printer media sensor - for Zebra ZE500-4Code: P1046696-027
Zebra - Packaging kitCode: P1046696-095
Zebra - Spare parts kit - for Zebra ZE500-6Code: P1046696-060
Zebra - Media sensorCode: P1046696-030
ZE500-6, MEDIA SENSOR, RHCode: P1046696-029
Zebra - Electronic cover kitCode: P1046696-084
Zebra - Print mechanism left handCode: P1046696-118
Zebra - Print mechanism right handCode: P1046696-117
Zebra - Media cover kitCode: P1046696-077
Zebra - Media cover right handCode: P1046696-076
Kit Media Cover ZE500-6 RHCode: P1046696-078
Zebra - Media cover left handCode: P1046696-079
Zebra - Assorted hardwareCode: P1046696-096
Zebra - Printer interface kit - for Zebra ZE500-4, ZE500-6Code: P1046696-018
Zebra - 203 dpi - printhead - for Zebra ZE500-4Code: P1046696-099
Zebra - Ribbon drive system left handCode: P1046696-138
Zebra - Ribbon drive system right handCode: P1046696-136
Zebra - Ribbon motor control PCBA right handCode: P1046696-135
Zebra - Ribbon drive system left handCode: P1046696-137
Zebra - Printhead conversion kit - for Zebra ZE500-4Code: P1046696-004
Zebra - Convert 300 to 203dpi RH and LHCode: P1046696-141
Zebra - Media drive motor left handCode: P1046696-126
Zebra - Media drive motor right handCode: P1046696-125
Zebra - Power supply (internal) - for Zebra ZE500-4, ZE500-6Code: P1046696-021
Zebra - Kit DC power supplyCode: P1046696-132
Zebra - 300 dpi - printhead - for Zebra ZE500-4Code: P1046696-016
Zebra Extended Life - 203 dpi - printhead - for Zebra ZE500-4Code: P1079036-005
Zebra - Convert 203 to 300dpi RH and LHCode: P1046696-003
Zebra - Control panel with cableCode: P1046696-082
PRINTHEAD CONVERT 300 TO 203DPI ZE500-6Code: P1046696-143
Zebra Extended Life - 300 dpi - printhead - for Zebra ZE500-4Code: P1079036-006
Zebra - Printhead conversion kit - for Zebra ZE500-6Code: P1046696-006
Zebra - Convert kit 203 to 300 dpi RH and LHCode: P1046696-142
MEDIA DRIVE SYSTEM EXTDED 203DPI ZE500RHCode: P1046696-147
Zebra - Media drive system 300 dpi left handCode: P1046696-149
MEDIA DRIVE SYS EXT LIFE 300DPI ZE500 LHCode: P1046696-150
KIT Drive Sys. Ext. Life 300dpi ZE500 RHCode: P1046696-148
Zebra - Main logic boardCode: P1046696-017
Zebra - Printer RFID upgrade kit - for Zebra ZE500-4Code: P1046696-500R1
