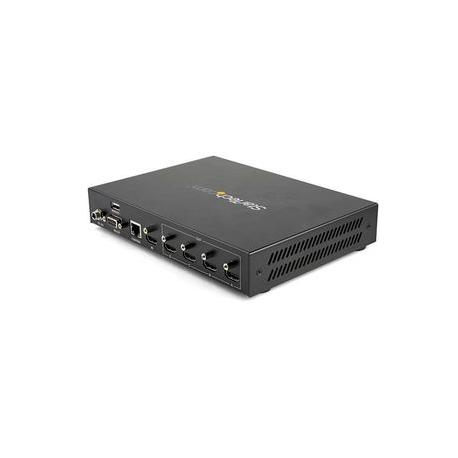

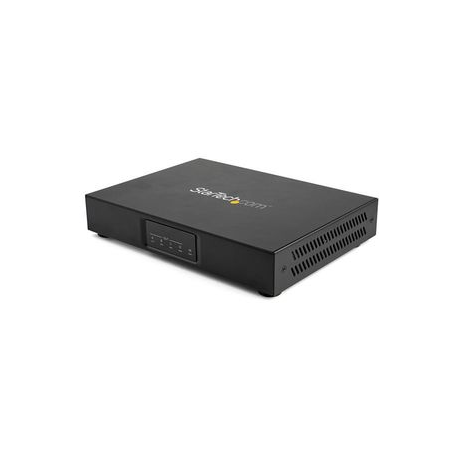

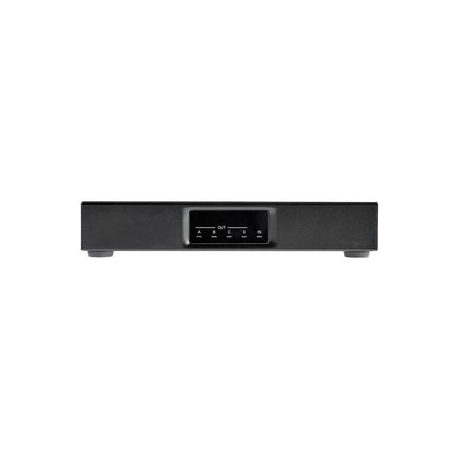

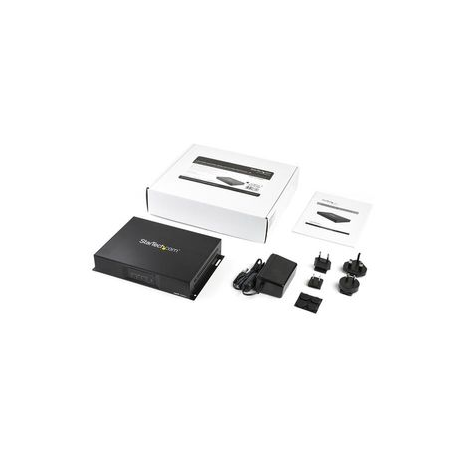

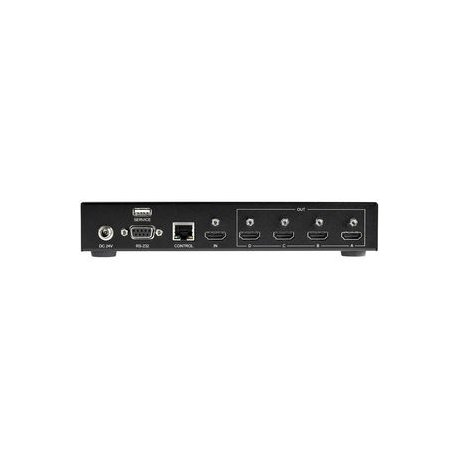

StarTech.com 2x2 HDMI Video Wall Controller, 4K 60Hz HDMI 2.0 Video Input to 4x 1080p Output, Video Wall Processor for Multi Screen Display, Video Wall Splitter, RS232/Ethernet Control - Remote configuration (ST124HDVW) - Video/audio splitter - 4 x HDMI - desktop
StarTech.com 2x2 HDMI Video Wall Controller, 4K 60Hz HDMI 2.0 Video Input to 4x 1080p Output, Video Wall Processor for Multi Screen Display, Video Wall Splitter, RS232/Ethernet Control - Remote configuration (ST124HDVW) - Video/audio splitter - 4 x HDMI - desktop
Manufacturer
•STARTECH
Reference
•ST124HDVW
Article
•1834230
Shipping weight
•1.6 kg
Video port type
HDMI
HDMI version
2.0
HDMI in
1
Number of HDMI outputs
4
USB port type
USB Type-A
RJ-45 input ports
1
RS-232 ports
1
DC-in jack
Y
Product colour
Black
Extended display identification data (EDID)
Y
HDCP
Y
Material
Metal
Maximum refresh rate
60 Hz
Supported graphics resolutions
4096 x 2160
LED indicators
Y
Audio output channels
7.1 channels
HDCP version
2.2
AC input voltage
100 - 240 V
AC adapter input current
1 A
AC adapter output voltage
24 V
AC adapter output current
1.25 A
Certification
CE, FCC, REACH
Width
165 mm
Depth
230 mm
Height
45 mm
Weight
1 kg
Package width
260 mm
Package depth
300 mm
Package height
70 mm
Package weight
1.6 kg
Manual
Y
AC adapter included
Y
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
20 - 90%
Sustainability certificates
RoHS
Master (outer) case width
31.5 cm
Master (outer) case length
54.5 cm
Master (outer) case height
38 cm
