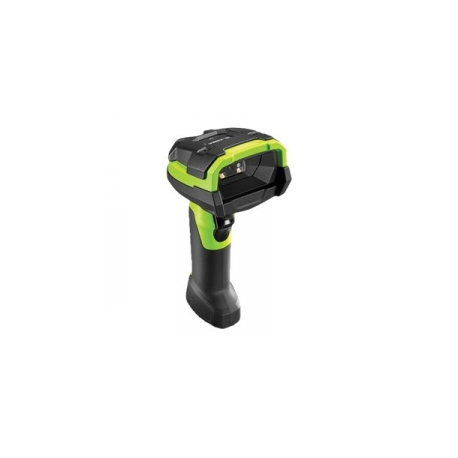

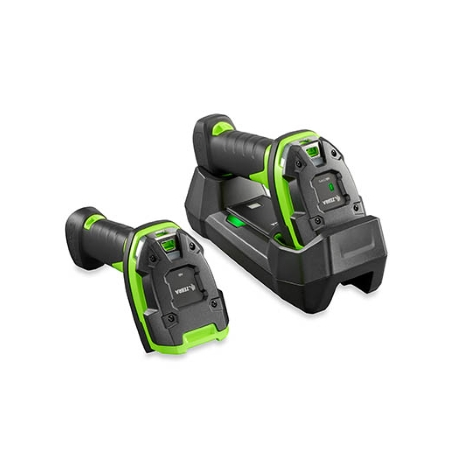

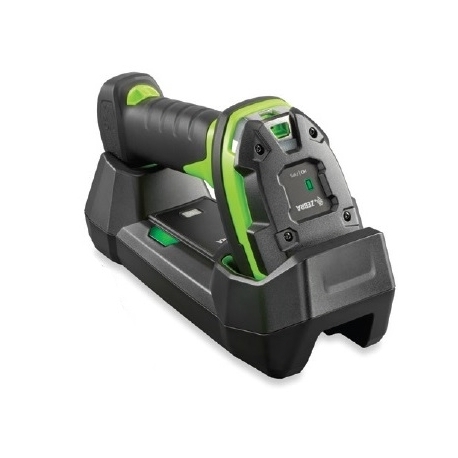

Zebra DS3678-HP - Barcode scanner - portable - decoded - Bluetooth 4.0

  • Zebra DS3678 SCNR 2D HP BT RUGGED FIPS
  • Zebra DS3678 SCNR 2D HP BT RUGGED FIPS
  • Zebra DS3678 SCNR 2D HP BT RUGGED FIPS
  • Zebra DS3678 SCNR 2D HP BT RUGGED FIPS
images are for illustrative purposes only

New

Article: 1330895 Intrastat: 84716070 SKU: DS3678-HP2F003VZWW
Pricing and stock details are available to registered users only.
 Add to compare
Zebra DS3678-HP - Barcode scanner - portable - decoded - Bluetooth 4.0
TypeBarcode scanner - portable
ColourIndustrial green
Interface TypeBluetooth 4.0
Minimum Bar Width5 mil
Sensor Resolution1280 x 960
Max Working Distance2.1 m
Skew (Degrees)60
Pitch (Degrees)60
Decode CapabilityCode 93, Industrial 2 of 5, Code 39, NW-7, GS1 DataBar, QR code, MaxiCode, Aztec code, MicroPDF417, Code 3 of 5, Italy Pharmacode, Codabar, Code 128, Code 11, PDF417, MSI-Plessey, Data Matrix, TLC39, OCR-A, OCR-B, MICR E-13B, Micro QR code, China Han Xin Code, UPC/EAN supplementals
TTL DecodingDecoded
Connectivity TechnologyWireless
OK NotificationBeeper, LED indicator, vibration
Wireless ConnectivityBluetooth 4.0 LE
Compliant StandardsUL, VDE, EN 61000-6-2, RoHS, UL 60950-1 Second Edition, IP67, CAN/CSA C22.2 No. 60950-1-07, EN 61000-3-2:2006+A1:2009+A2:2009, IEC 60601-1-2:2007, EN 50581:2012, ICES-003 issue 5 Class B, IEC 62471:2006, EN 62471:2008, EN 60601-1-2:2007, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+AC:2011, EN 61000-3-3:2013, EN 55024:2010, EN 55022:2010/AC:2011, IEC 60950-1:2005 + A1:2009 + A2:2013, CU, FCC CFR47 Part 15 B Class B
Battery1 x Lithium Ion
Width7.6 cm
Depth14.2 cm
Height18.5 cm
Weight411 g
Service & SupportLimited warranty - 3 years
Min Operating Temperature-20 °C
Max Operating Temperature50 °C
Humidity Range Operating5 - 95% (non-condensing)
Drop Specification2.4 m to concrete
