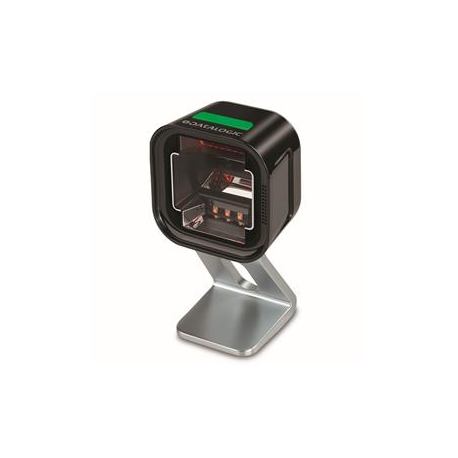

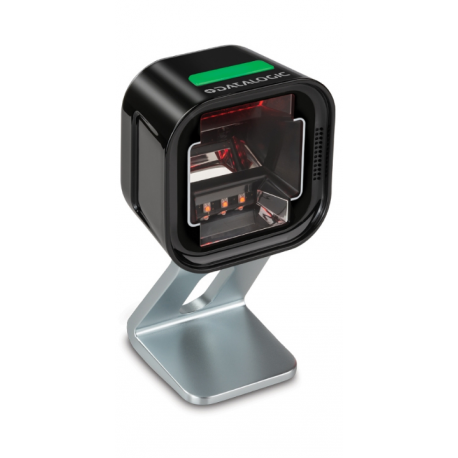

Datalogic Magellan 1500i - Standard Configuration - barcode scanner - stationary - 2D imager - 1500 mm / sec - decoded - USB 2.0
Datalogic Magellan 1500i - Standard Configuration - barcode scanner - stationary - 2D imager - 1500 mm / sec - decoded - USB 2.0
Manufacturer
•DATALOGIC
Reference
•MG1501-10210-0200
Article
•1569699
Intrastat
•84716070
Shipping weight
•0.5821 kg
Manufacturer price
•426.00 €
Total quantity in stocks
•760
Nearest delivery
•23.03.2026
Presentation scanner, retail, 2D, imager, Green Spot, targeting mode, USB (type A), multi-interface (RS232, USB, IBM), IP52, incl.: cable (USB), stand (tilt stand), colour: black
Type
Barcode scanner - stationary - stationary
Colour
Black
Interface Type
USB 2.0
Minimum Bar Width
5 mil
Scan Field Width
30 cm
Scan Element Type
2D imager
Sensor Resolution
1280 x 800
Scan Mode
Fixed projection
Scan Speed
1500 mm / sec
Max Working Distance
25 cm
Skew (Degrees)
75
Pitch (Degrees)
65
Print Contrast Signal (PCS)
25%
Decode Capability
GS1 DataBar, QR code, MaxiCode, Aztec code, MicroPDF417, PDF417, Data Matrix, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked
TTL Decoding
Decoded
Connectivity Technology
Wired
OK Notification
Beeper, LED indicator
Features
ESD (electrostatic discharge) safe, Green Spot technology
Interfaces
1 x USB - Type A
Included Accessories
Tilting stand
Cables Included
USB cable
Compliant Standards
RoHS, JavaPOS, OPOS, IEC 60825-1, IP52
Electric Current Required
300 mA (standby), 500 mA (operating)
Width
6 cm
Depth
7.5 cm
Height
15 cm
Weight
240 g
Service & Support
Limited warranty - 3 years
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
5 - 95% (non-condensing)
