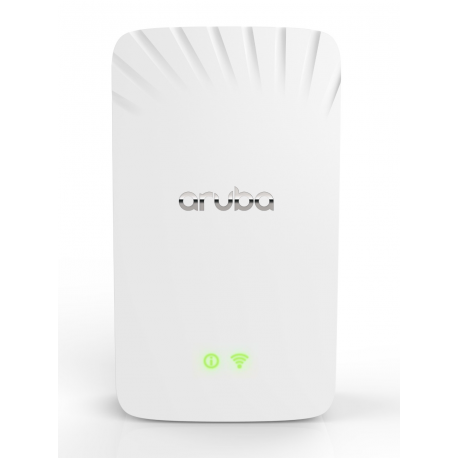

HPE Aruba AP-503HR (EU) Unified Remote - Radio access point - 802.11ac Wave 2, Bluetooth 5.0, 802.11ax - Bluetooth, Wi-Fi - 2.4 GHz, 5 GHz - BTO
HPE Aruba AP-503HR (EU) Unified Remote - Radio access point - 802.11ac Wave 2, Bluetooth 5.0, 802.11ax - Bluetooth, Wi-Fi - 2.4 GHz, 5 GHz - BTO
Ražotājs
•HPE
Ražotāja kods
•R7G96A
Artikuls
•1810644
Intrastat
•85176930
Pakas svars
•1.019 kg
Kopā pieejams (gab.)
•15
Tuvākā piegāde
•08.07.2026
Device Type
Radio access point
Width
8.6 cm
Depth
4.7 cm
Height
15 cm
Weight
360 g
Form Factor
External
Connectivity Technology
Wireless
Data Transfer Rate
1.2 Gbps
Line Coding Format
CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM, 1024 QAM, OFDMA
Data Link Protocol
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, Bluetooth 5.0, IEEE 802.11ax
Spread Spectrum Method
OFDM, DSSS, OFDMA
Network / Transport Protocol
IPSec
Frequency Band
2.4 GHz, 5 GHz
Performance
Maximum data rate (5 GHz): 1.2 Gbps
Maximum data rate (2.4 GHz): 287 Mbps
VPN throughput (IPSec): 100 Mbps
Aggregate throughput: 1.5 Gbps
Capacity
Wireless clients per Wi-Fi radio: 256
BSSIDs per radio: 16
OFDMA units: 8
Status Indicators
Port status, power, system, status, PoE, radio
Features
Auto-uplink (auto MDI/MDI-X), DFS support, deep inspection, IPSec Virtual Private Network (VPN), Wi-Fi Multimedia (WMM) support, Trusted Platform Module (TPM), 2T2R MIMO technology, Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Direct Sequence Spread Spectrum (DSSS), Cyclic Delay Diversity (CDD), Space Time Blocking Code (STBC), Advanced Cellular Coexistence (ACC), ClientMatch, cyclic shift diversity (CSD), Green AP technology, MU-MIMO technology, packet aggregation A-MPDU, packet aggregation A-MSDU, SU-MIMO technology, Intelligent Power Monitoring (IPM), Dynamic Frequency Selection (DFS), High-Throughput (HT) support, Energy-Efficient Ethernet (EEE), Orthogonal Frequency Division Multiplexing (OFDM), 2x2 MIMO technology, Very High Throughput (VHT) support, security slot (Kensington security lock compatible), Orthogonal Frequency Division Multiple Access (OFDMA), High Efficiency (HE) support, Target Wait Time (TWT), HPE SmartRate, Advanced IoT Coexistence
Encryption Algorithm
SSL, WPA, WPA2, WPA3, WPA3-Enterprise, Opportunistic Wireless Encryption (OWE), WPA3-Enhanced Open, Simultaneous Authentication of Equals (SAE), WPA2-MPSK
Compliant Standards
IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.3az, IEEE 802.11ac Wave 2, IEEE 802.3bz, IEEE 802.11ax, Wi-Fi CERTIFIED 6
Antenna
Internal
Antenna Qty
2
Directivity
Directional
Gain Level
5 dBi
Internet of Things (IoT) Compatible
Yes
Communications Technology
Bluetooth Low Energy (LE), Zigbee
Interfaces
2 x 1000Base-T - RJ-45
1 x 1000Base-T (PoE+) - RJ-45
1 x console - micro-USB
Included Accessories
Desk mount kit
Cables Included
Power adapter
Compliant Standards
EN 60950, IEC 60950, FCC, EN 60601-1-2, EN 60601-1-1, EMC 2014/30/EU, LVD 2014/35/EU, EN 62368-1, IEC 62368-1, ETS 300-019, ISED, RED 2014/53/EU
Pricing Type
BTO
Power Over Ethernet (PoE) Supported
PoE Class 3
Power Consumption Operational
6.2 Watt
OS Required
ArubaOS, InstantOS
Shipping Width
11.1 cm
Shipping Depth
5.4 cm
Shipping Height
16.7 cm
Shipping Weight
450 g
Service & Support
Limited warranty - lifetime
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
5 - 93% (non-condensing)
