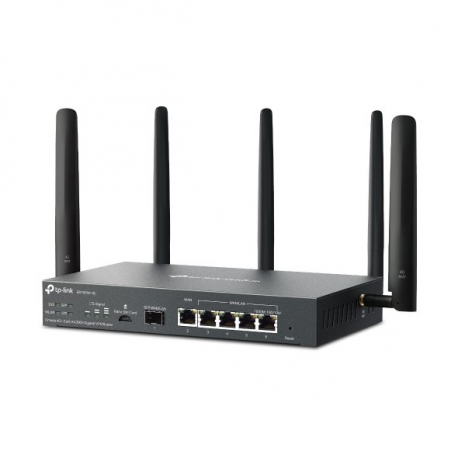

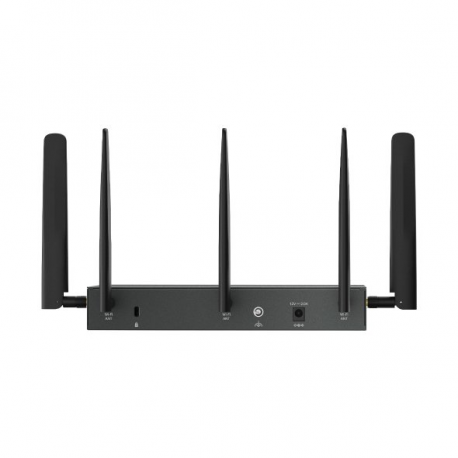

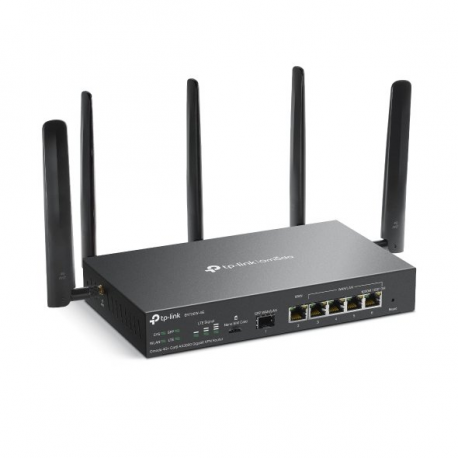

Wireless router - 5-port switch (integrated)

Desktop, wall-mountable

Wired, wireless

Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6)

2.4 GHz / 5 GHz

Maximum throughput (5 GHz): 2402 Mbps ¦ Maximum throughput (2.4 GHz): 574 Mbps ¦ Channel bandwidth (5 GHz): 160 MHz ¦ NAT upload throughput (Static IP): 947.1 Mbps ¦ NAT download throughput (Static IP): 940.1 Mbps ¦ NAT upload throughput (DHCP): 949.2 Mbps ¦ NAT download throughput (DHCP): 941.1 Mbps ¦ NAT upload throughput (PPPoE): 942.6 Mbps ¦ NAT download throughput (PPPoE): 941.1 Mbps ¦ NAT upload throughput (L2TP): 875.4 Mbps ¦ NAT download throughput (L2TP): 892.0 Mbps ¦ NAT upload throughput (PPTP): 881.2 Mbps ¦ NAT download throughput (PPTP): 895.8Mbps ¦ Upload forwarding rate (66-byte packet size): 1453489 pps ¦ Download forwarding rate (66-byte packet size): 1453488 pps ¦ Upload forwarding rate (1518-byte packet size): 81274 pps ¦ Download forwarding rate (1518-byte packet size): 91275 pps ¦ VPN throughput (256-bit AES+SHA1 IPSec): 652.2 Mbps ¦ VPN throughput (256-bit AES+SHA256 IPSec): 654.4 Mbps ¦ VPN throughput (256-bit AES+SHA384 IPSec): 646.5 Mbps ¦ VPN throughput (256-bit AES+SHA512 IPSec): 67

Concurrent sessions: 150000 ¦ New sessions per second: 5100 ¦ SSIDs total: 16 ¦ SSIDs per radio: 8 ¦ OpenVPN servers: 5 ¦ PPTP/L2TP VPN servers: 10 ¦ IPSec VPN tunnels: 100 ¦ PPTP VPN clients: 10 ¦ PPTP VPN tunnels: 50 ¦ L2TP VPN clients: 10 ¦ L2TP VPN tunnels: 50 ¦ SSL VPN tunnels: 50 ¦ OpenVPN clients: 5 ¦ OpenVPN tunnels: 55

WireGuard, OpenVPN, IPSec, PPTP, L2TP, TCP, DHCP, PPPoE, HTTP, HTTPs, DNS, DHCPv6, FTP, UDP, DDNS, NTP

GRE, static IP routing, IGMPv2, IGMPv3, OSPF, RIP

DHCP, ICMP, NTP, HTTP, HTTPS, DNS, SLAAC, SNMP 1, SNMP 2c, SNMP 3, CLI, Syslog

SSL, WPA-Personal, WPA2-Personal, WPA3-Personal, WPA-Enterprise, WPA2-Enterprise, WPA3-Enterprise, DES, 3DES, 128-bit AES, 192-bit AES, 256-bit AES, IKEv1, IKEv2, MD5, SHA-1, 384-bit SHA-2, 512-bit SHA-2, MPPE

Radio Service Set ID (SSID), Extensible Authentication Protocol (EAP), RADIUS, LDAP

AX3000

Captive Portal, Guest Network, load balancing, bandwidth control, ACL support, 4KV Surge protection, SDN, cloud managed, Hassle Free, NAT support, reset button, schedule reboot, event notification, network monitoring, device discovery, dynamic IP mode, DHCP server, Address Reservation, MAC clone, IPTV support, bridge mode, mDNS, QoS, bridged/routed VLAN, SMS, wireless radio enable/disable, SSID broadcast, seamless roaming, Mesh networking, beamforming technology, MU-MIMO technology, rate limit, Airtime Fairness, band steering, MAC address authentication, Wireless Scheduler, port triggering, virtual server support, DMZ support, ALG support, policy based routing, IPsec failover, IPSec NAT-T, DPD, PFS, URL filtering, Web Filtering, DNSSEC support, ARP inspection, IP-MAC binding

Wi-Fi CERTIFIED 6, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, UPnP, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, FCC, RoHS

ARM Cortex-A53

512 MB DDR4 SDRAM

128 MB

System, WLAN, SFP, LTE, link/activity

OFDMA, 1024 QAM

Wireless cellular modem

H.323

LTE, FDD LTE, TDD LTE, DC-HSDPA, HSPA+, HSDPA, HSUPA, WCDMA

4G

DC-HSPA+ B1, DC-HSPA+ B3, DC-HSPA+ B5, DC-HSPA+ B8, LTE B1, LTE B20, LTE B28, LTE B3, LTE B32, LTE B38, LTE B40, LTE B41, LTE B5, LTE B7, LTE B8

300 Mbps

WAN / LAN: 1 x 1000Base-X - SFP (mini-GBIC) ¦ WAN: 1 x 1000Base-T - RJ-45 ¦ WAN / LAN: 4 x 1000Base-T - RJ-45

1 (total) / 1 (free) x Nano-SIM

External detachable

5

External power adapter

Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/8.1/10/11, UNIX, Apple MacOS, Novell NetWare, Linux

22.6 cm

13.1 cm

3.5 cm

0 °C

40 °C

10 - 90% (non-condensing)
