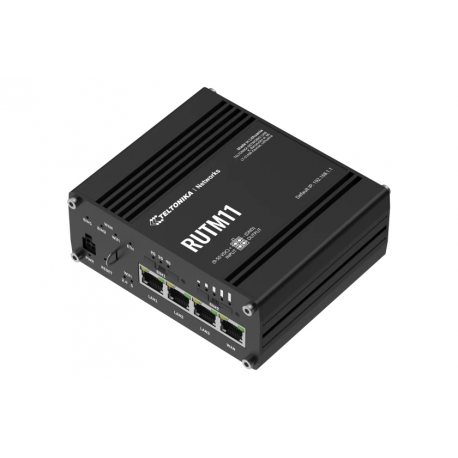

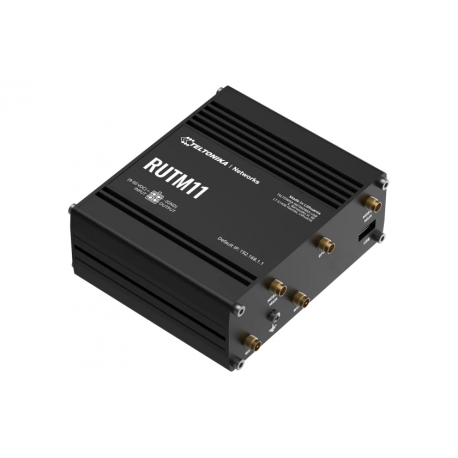

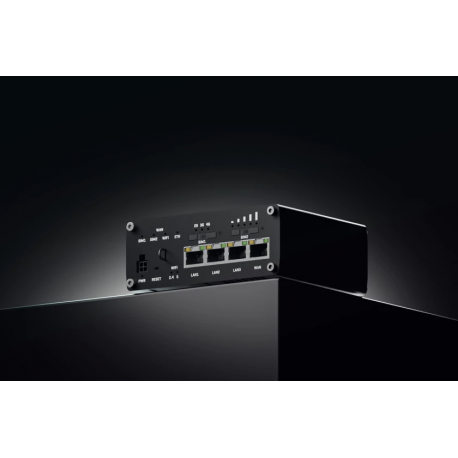

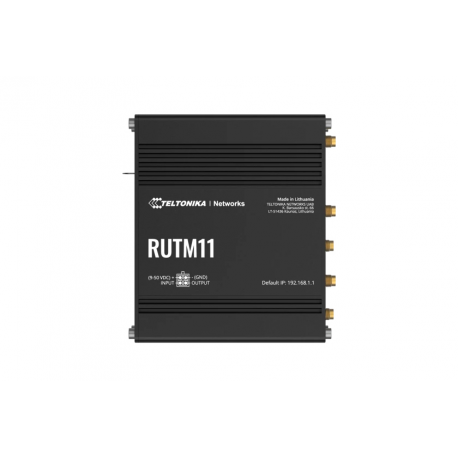

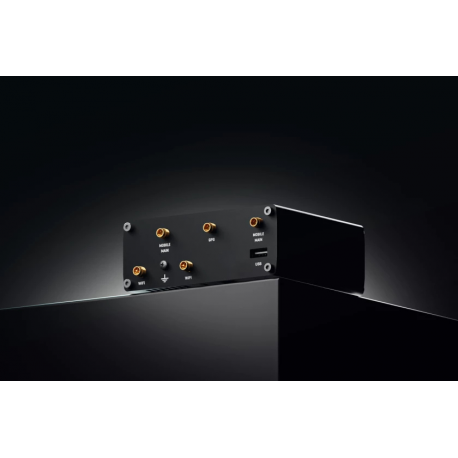

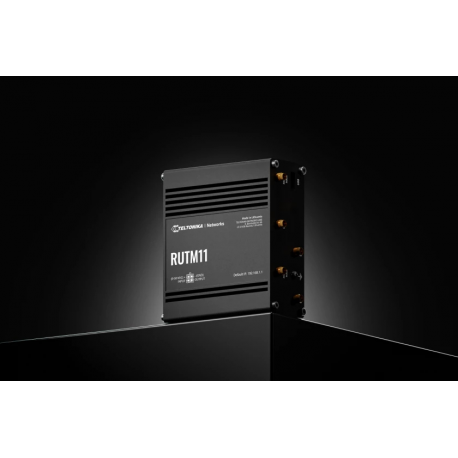

Teltonika RUTM11 - Wireless router - WWAN 4-port switch - 1GbE, PPP - Wi-Fi 5 - Dual Band - 3G, 4G - DIN rail mountable, wall-mountable, surface-mountable
Teltonika RUTM11 - Wireless router - WWAN 4-port switch - 1GbE, PPP - Wi-Fi 5 - Dual Band - 3G, 4G - DIN rail mountable, wall-mountable, surface-mountable
Ražotājs
•TELTONIKA
Ražotāja kods
•RUTM11000000
Artikuls
•4172909
Intrastat
•85176930
Pakas svars
•0.91 kg
Kopā pieejams (gab.)
•15
Tuvākā piegāde
•18.03.2026
Device Type
Wireless router - 4-port switch (integrated)
Enclosure Type
DIN rail mountable, wall-mountable, surface-mountable
Connectivity Technology
Wired, wireless
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, PPP
Frequency Band
2.4 GHz / 5 GHz
Capacity
Maximum WiFi user capacity: 150
Network / Transport Protocol
TCP, UDP, IPv4, IPv6, ICMP/IP, NTP, DNS, HTTP, HTTPs, FTP, SMTP, ARP, PPPoE, DHCP, Telnet
Routing Protocol
BGP, OSPFv2, RIP-1, RIP-2, EIGRP, NHRP, VRRP, policy-based routing (PBR)
Remote Management Protocol
SSH, Telnet, SMPP, SMNP, MQTT, HTTP, HTTPS, CLI, SSH-2, TR-069, SNMP 1, SNMP 2, SNMP 3, JSON-RPC, Modbus
Encryption Algorithm
WPA3-EAP, WPA3-SAE, WPA2-Enterprise, PEAP, WPA2-PSK, WEP, AES-CCMP, TKIP, IKEv1, IKEv2, 3DES, 128-bit AES, 192-bit AES, 256-bit AES, 192-bit AES-GCM, 256-bit AES-GCM, 128-bit AES-GCM, DES, CBC, RC2, CAST5, 128-bit AES-CBC, 192-bit AES-CBC, 256-bit AES-CBC
Authentication Method
X.509 certificates, TACACS+, RADIUS
Features
USSD support, white list, black list, multiple PDN, band management, auto APN, bridge mode, Access Point operational mode, 2x2 MIMO technology, MAC address filtering, auto-uplink (auto MDI/MDI-X), WOL, H.323 Pass-Through, SIP ALG, DHCP relay, SQM, port forwarding, load balancing, SSHFS support, PSK, DMZ support, IPSec NAT-T, CLI management, port-based VLAN, tagged VLAN, DDoS Protection, mobile quota control, Web Filtering, GRE tunneling, DMVPN, SSTP client instance support, Modbus compatible, DNP3 outstation, DNP3 station, DLMS support, Teltonika RMS, aluminium housing, FOTA, GPS/GLONASS/Galileo/BeiDou/QZSS support
Compliant Standards
UPnP, IEEE 802.3, IEEE 802.3u, IEEE 802.3az, IEEE 802.1r, IEEE 802.1s, IEEE 802.11e, IP30, WEEE, ESD, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN 61000-4-2:2009, EN 61000-4-4:2012, EN 61000-4-5:2014+A1:2017, EN 61000-4-6:2014, EN IEC 61000-3-2:2019+A1:2021, EN IEC 61000-4-11:2020, EN IEC 61000-4-3:2020, EN IEC 62368-1:2020+A11:2020, IEC 62368-1:2018, RCM, AS/NZS 62368.1:2022
Processor
1 x MediaTek MIPS 1004Kc 880 MHz
RAM
256 MB DDR3 SDRAM
Flash Memory
16 MB
Status Indicators
WAN, LAN, signal strength, connection status, power, Wi-Fi
Type
Wireless cellular modem
Mobile Communication Protocol
FDD LTE, TDD LTE
Generation
3G, 4G
Cellular Band
LTE B1, LTE B3, LTE B5, LTE B7, LTE B8, LTE B20, LTE B28, LTE B32, LTE B38, LTE B40, LTE B41
Max Transfer Rate
300 Mbps
VoIP Protocols
H.323, SIP
Internet of Things (IoT) Compatible
Yes
Platform
Clouds of Things, ThingWorx, Cumulocity, Azure IoT Hub, AWS IoT Core

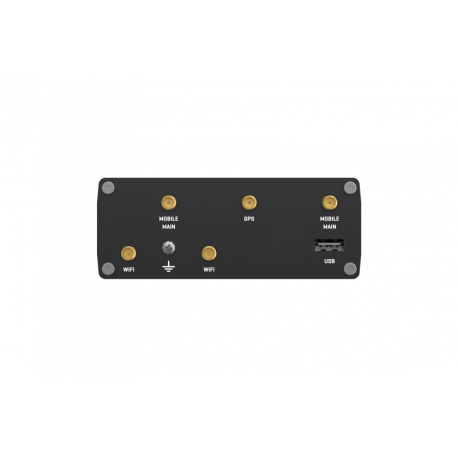

Interfaces
WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45
LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45
Antenna: 2 x SMA - LTE
Antenna: 2 x RP-SMA - Wi-Fi
Antenna: 1 x SMA - GNSS aerial
Expansion Slots
2 (total) / 2 (free) x Mini-SIM
Aerial
External detachable
Antenna Qty
5
Power Device
External power adapter - 18 Watt
Included Accessories
4 x aerials, 2 x WiFi aerials, GNSS aerial, SIM card adapter kit
Cables Included
1 x network cable - 1.5 m
OS Provided
RutOS
Width
11.5 cm
Depth
9.51 cm
Height
4.42 cm
Weight
460 g
Min Operating Temperature
-40 °C
Max Operating Temperature
75 °C
Humidity Range Operating
10 - 90% (non-condensing)
