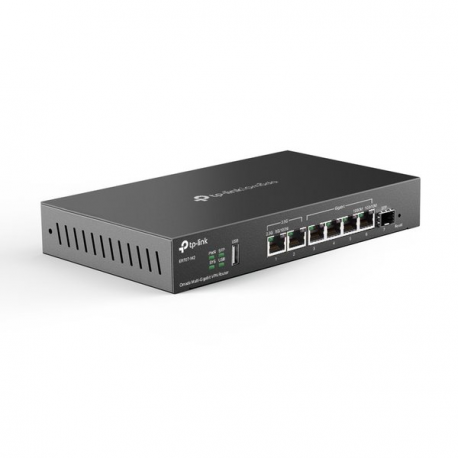

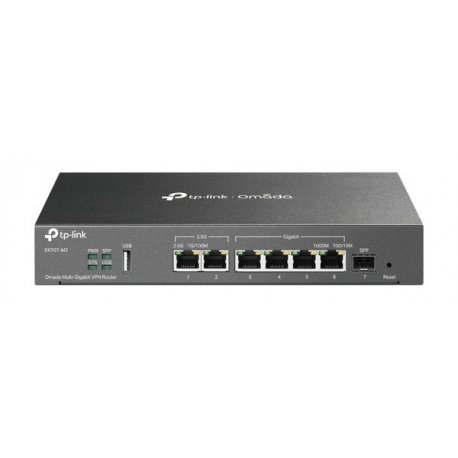

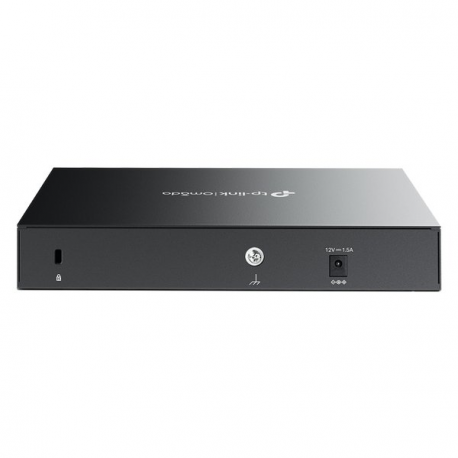

TP-Link Omada ER707-M2 V1 - Router 1GbE - wall-mountable
TP-Link Omada ER707-M2 V1 - Router 1GbE - wall-mountable
Ražotājs
•TP-LINK
Ražotāja kods
•ER707-M2
Artikuls
•3367105
Intrastat
•85176200
Pakas svars
•1.59 kg
Kopā pieejams (gab.)
•53
Tuvākā piegāde
•16.03.2026
Device Type
Router
Enclosure Type
Desktop, wall-mountable
Connectivity Technology
Wired
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet
Performance
NAT upload throughput (Static IP): 2364.45 Mbps / 2343.28 Mbps ¦ NAT upload throughput (DHCP): 2364.24 Mbps / 2326.21 Mbps ¦ NAT (PPPoE) throughput: 2350.93 Mbps / 2125.83 Mbps ¦ NAT upload throughput (L2TP): 1249.04 Mbps / 831.12 Mbps ¦ NAT upload throughput (PPTP): 1169.23 Mbps / 1175.52 Mbps ¦ VPN throughput (IPSec): 537.12 Mbps ¦ VPN throughput (IPSec): 754.65 Mbps ¦ VPN unencrypted throughput (L2TP): 1442.65 Mbps ¦ VPN encrypted throughput (L2TP): 346.43 Mbps ¦ VPN throughput (SSL): 142.99 Mbps ¦ Upload/download forwarding rate (66-byte packet size): 1832.69 Mbps / 1741.84 Mbps ¦ Upload/download forwarding rate (1518-byte packet size): 2461.18 Mbps / 2457.32 Mbps
Capacity
New sessions per second: 5500 ¦ Concurrent connections: 150000
Network / Transport Protocol
TCP/IP, PPTP, L2TP, NTP, IPSec, PPPoE, DHCP, DNS, HTTP, HTTPs
Routing Protocol
IGMPv2, static IP routing, IGMPv3
Remote Management Protocol
SNMP 1, SNMP 3, SNMP 2c, ICMP
Encryption Algorithm
MD5, MPPE, SHA-1, 128-bit AES, 192-bit AES, 256-bit AES, IKEv2, IKEv1, 3DES-168
Authentication Method
RADIUS
Features
NAT support, Syslog support, URL filtering, DPD, IPSec NAT-T, virtual server support, DHCP server, reset button, bandwidth control, port triggering, IP-MAC binding, GARP, Captive Portal, ARP inspection, 4KV Surge protection, network diagnostics, Web Filtering, policy based routing, PFS, ZTP, L2TP support, DynDNS, schedule reboot, OpenVPN server, Block TCP Flood, Black UDP Flood
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, UPnP, FCC, RoHS
RAM
1 GB DDR4 SDRAM
Flash Memory
128 MB
Status Indicators
Power, system, link/activity, speed
VoIP Protocols
H.323, SIP
Interfaces
WAN: 1 x 2.5G Gigabit Ethernet - RJ-45 ¦ WAN / LAN: 1 x 2.5G Gigabit Ethernet - RJ-45 ¦ WAN / LAN: 1 x SFP (mini-GBIC) ¦ WAN / LAN: 4 x RJ-45 ¦ USB 2.0: 1 x
Power Device
Internal power supply
Installed Qty
1
Voltage Required
(50/60 Hz)
OS Required
UNIX, Apple MacOS, Novell NetWare, Linux, Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/8.1/10
Width
22.6 cm
Depth
13.1 cm
Height
3.5 cm
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
10 - 90% (non-condensing)
