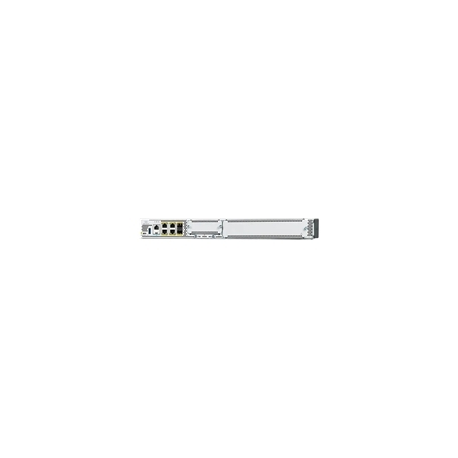

Cisco Catalyst 8300-1N1S-6T - Router - GigE - rack-mountable
Cisco Catalyst 8300-1N1S-6T - Router - GigE - rack-mountable
Ražotājs
•CISCO
Ražotāja kods
•C8300-1N1S-6T
Artikuls
•1861106
Intrastat
•85176200
Pakas svars
•11.648 kg
Kopā pieejams (gab.)
•7
Tuvākā piegāde
•20.04.2026
Device Type
Router
Enclosure Type
Rack-mountable - 1U
Connectivity Technology
Wired
Data Link Protocol
Gigabit Ethernet
Performance
VPN throughput (IMIX IPSec): 5 Gbps
VPN throughput (1400 B IPSec): 1.9 Gbps
IPv4 forwarding throughput (1400-byte packet size): 19.7 Gbps
Capacity
Maximum overlay tunnels: 6000
ACL: 4000
Access Control Entries (ACEs) per system (IPv4): 72000
IPv4 routes: 1600000
IPv6 routes: 1500000
Queues: 16000
NAT sessions: 1200000
Firewall sessions: 512000
Virtual Routing and Forwarding (VRF) entries: 4000
Network / Transport Protocol
RSVP, NTP, IPSec, PPPoE, DHCP, DNS, L2TPv3, RTCP
Routing Protocol
OSPF, RIP, IS-IS, RIP-2, BGP, EIGRP, HSRP, DVMRP, VRRP, IGMPv3, GRE, OSPFv3, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD)
Remote Management Protocol
SNMP, SCP, OMP
Encryption Algorithm
DES, Triple DES, MD5, IKE, TLS, SHA-1, PKI, 128-bit AES, SHA-2, 1024-bit RSA, 2048-bit RSA, 256-bit SHA, 256-bit AES-GCM, 256-bit AES-CBC, 512-bit SHA, ESP, 748-bit RSA, 384-bit SHA, ECDSA 256-bit, ECDSA 384-bit, HMAC
Authentication Method
Secure Shell (SSH), RADIUS
Features
NAT support, PAT support, Syslog support, URL filtering, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Access Control List (ACL) support, Quality of Service (QoS), DHCP server, Bidirectional Forwarding Detection (BFD), DHCP client, Forward Error Correction (FEC), Class of Service (CoS), Call Admission Control (CAC), Flexible NetFlow (FNF), Application Visibility and Control (AVC), Source-Specific Multicast (SSM), Authentication, Authorization and Accounting (AAA), Hierarchical Quality of Service (HQoS), Encapsulated Remote SPAN (ERSPAN), Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), Ethernet Virtual Connections (EVC), Cisco IOS IP Service-Level Agreements (IPSLA), Network-Based Application Recognition (NBAR), Datagram Transport Layer Security (DTLS), Point-to-Point Protocol (PPP), High-Level Data Link Control (HDLC), Multilink Point-to-Point Protocol (MLPPP), Multilink Frame Relay (MLFR), Application Aware Routing (AAR), Interactive Voice Response (IV
Compliant Standards
IEEE 802.1Q, IEEE 802.3ah, IEEE 802.1ag, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, FDA, FCC CFR47 Part 15 B Class A, CNS 13438 Class A, EN 300 386, KN35, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, AS/NZS CISPR 32 Class A, KN32 Class A, IEC/EN 61000-4-11, IEC/EN 61000-4-2, EN 55032 Class A, EN 55032, CISPR 32 Class A, EN 55035, IEC/EN 60825, CAN/CSA C22.2 No. 60950-1
Processor
Intel
RAM
8 GB
Flash Memory
8 GB
Hard Drive
16 GB
VoIP Protocols
SRTP
Interfaces
WAN / LAN: 6 x Ethernet 1000
USB: 1 x
Expansion Slots
1 (total) / 1 (free) x service module (SM)
1 (total) / 1 (free) x NIM
Installed Modules Qty (Max)
0 (installed) / 2 (max)
Power Device
Internal power supply
Installed Qty
1 (max)
MTBF
536,060 hours
OS Required
Cisco IOS XE 17.3.2
Width
44.5 cm
Depth
41.3 cm
Height
4.39 cm
Weight
9.07 kg
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
5 - 85% (non-condensing)
