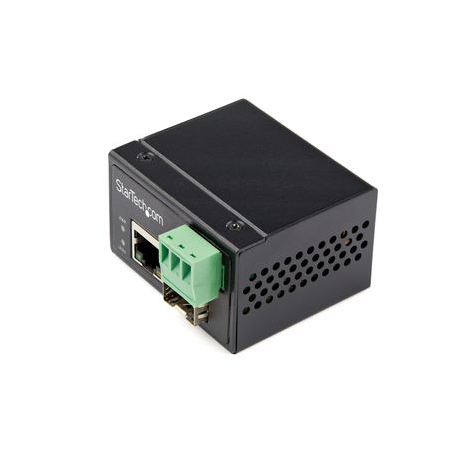

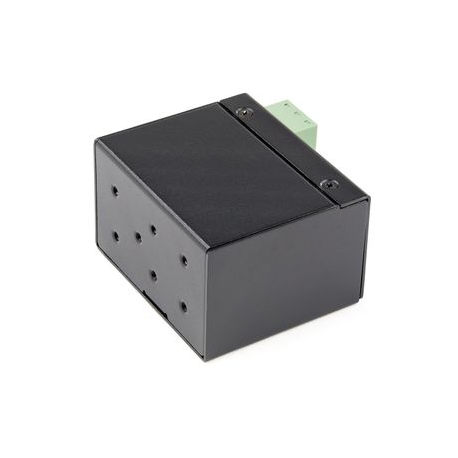

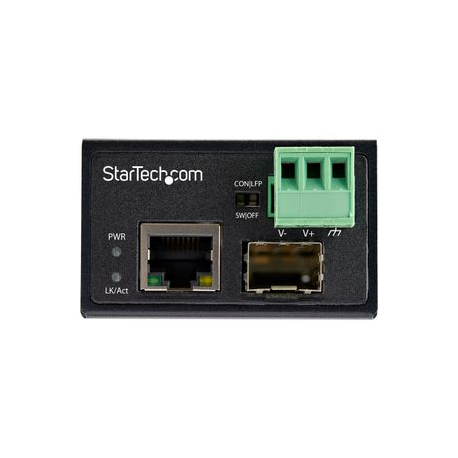

StarTech.com Industrial Fiber to Ethernet Media Converter - 100Mbps SFP to RJ45 / Cat6 - Singlemode / Multimode Optical Fiber to Copper Network - 12-56V DC - IP-30 / -40 to +75C - Fibre media converter - 100Mb LAN - 100Base-FX, 100Base-TX - RJ-45 / SFP (mini-GBIC)
StarTech.com Industrial Fiber to Ethernet Media Converter - 100Mbps SFP to RJ45 / Cat6 - Singlemode / Multimode Optical Fiber to Copper Network - 12-56V DC - IP-30 / -40 to +75C - Fibre media converter - 100Mb LAN - 100Base-FX, 100Base-TX - RJ-45 / SFP (mini-GBIC)
Ražotājs
•STARTECH
Ražotāja kods
•IMC100MSFP
Artikuls
•1834144
Intrastat
•85176990
Pakas svars
•0.2 kg
Kopā pieejams (gab.)
•78
Tuvākā piegāde
•08.07.2026
Device Type
Fibre media converter
Form Factor
DIN rail mountable
Colour
Black
Connectivity Technology
Wired
Cabling Type
100Base-FX, 100Base-TX
Data Link Protocol
10Mb LAN, 100Mb LAN
Data Transfer Rate
100 Mbps
Status Indicators
Port status, active, link
Features
Flow control, auto-uplink (auto MDI/MDI-X), full duplex mode, Back Pressure Support, 2KV Surge protection
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3x
Interfaces
1 x Ethernet 100Base-TX - RJ-45 female ¦ 1 x Ethernet 100Base-FX - SFP female
Included Accessories
Power terminal block
Mounting Kit
Included
MTBF
534,482 hours
Compliant Standards
IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5, FCC, RoHS, EN 60950-1, WEEE, MSA, IP30, EN 60068-2-27, EN 60068-2-32, EN 60068-2-6
Power Device
External power adapter
Voltage Required
AC 18 - 36 V / DC 12 - 56 V
Power Consumption Operational
1.92 Watt
Width
3.2 cm
Depth
5.9 cm
Height
5 cm
Weight
81.4 g
Shipping Width
15.5 cm
Shipping Depth
10.5 cm
Shipping Height
6.4 cm
Shipping Weight
200 g
Service & Support
Limited warranty - 2 years
Min Operating Temperature
-40 °C
Max Operating Temperature
75 °C
Humidity Range Operating
5 - 95% (non-condensing)
