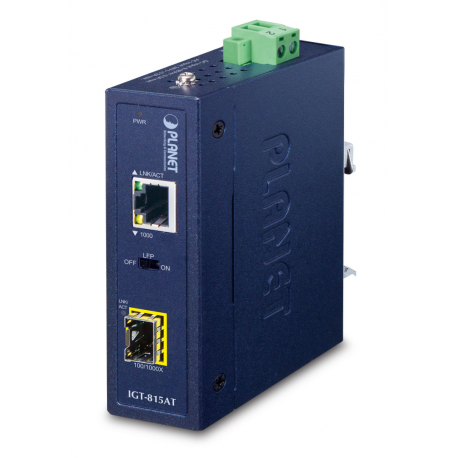

PLANET IGT-815AT - Fibre media converter - GigE - 10Base-T, 1000Base-LX, 1000Base-SX, 100Base-FX, 100Base-TX, 1000Base-T, 1000Base-BX - RJ-45 / SFP (mini-GBIC)
PLANET IGT-815AT - Fibre media converter - GigE - 10Base-T, 1000Base-LX, 1000Base-SX, 100Base-FX, 100Base-TX, 1000Base-T, 1000Base-BX - RJ-45 / SFP (mini-GBIC)
Ražotājs
•PLANET
Ražotāja kods
•IGT-815AT
Artikuls
•3009818
Intrastat
•85176990
Pakas svars
•0.221 kg
Kopā pieejams (gab.)
•53
Tuvākā piegāde
•30.03.2026
Device Type
Fibre media converter
Form Factor
DIN rail mountable
Connectivity Technology
Wired
Cabling Type
10Base-T, 1000Base-LX, 1000Base-SX, 100Base-FX, 100Base-TX, 1000Base-T, 1000Base-BX
Data Link Protocol
10Mb LAN, 100Mb LAN, GigE
Data Transfer Rate
1 Gbps
Status Indicators
Power, link/activity
Features
Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), Far End Fault (FEF), half duplex mode, full duplex mode, Link Fault Pass Through function (LFP), Jumbo Frames support, built-in DIP switch, 6KV ESD Protector, metal housing, Energy-Efficient Ethernet (EEE)
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az
Interfaces
1 x Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45
1 x Ethernet 1000Base-X - SFP
Compliant Standards
FCC Class A certified, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, IP30
Power Device
External power adapter
Voltage Required
AC 24 V / DC 9 - 48 V
Width
3 cm
Depth
7 cm
Height
10.4 cm
Weight
221 g
Min Operating Temperature
-40 °C
Max Operating Temperature
75 °C
Humidity Range Operating
5 - 95% (non-condensing)
