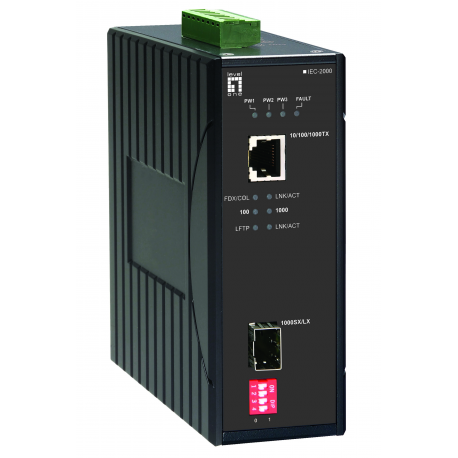

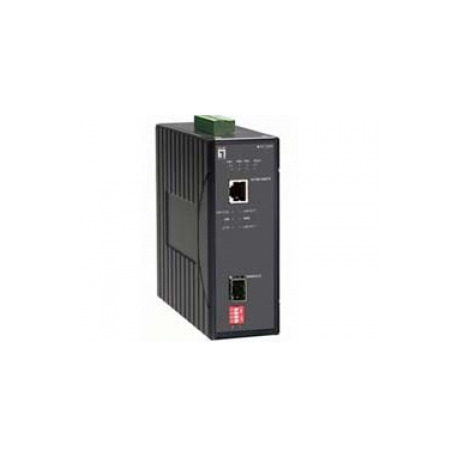

Levelone INDUSTRIAL MEDIA CONVERTER (Konform mit NEMA TS1- und TS2-Umgebungsanforderungen fuer Verkehrsleittechnik/ SFP-Steckpla
Levelone INDUSTRIAL MEDIA CONVERTER (Konform mit NEMA TS1- und TS2-Umgebungsanforderungen fuer Verkehrsleittechnik/ SFP-Steckpla
Ražotājs
•LEVELONE
Ražotāja kods
•IEC-2000
Artikuls
•1119543
Intrastat
•85176990
Pakas svars
•1 kg
Kopā pieejams (gab.)
•8
Tuvākā piegāde
•30.03.2026
Maximum data transfer rate
1000 Mbit/s
Converter input interface
10Base-T, 100Base-TX, 1000Base-TX
Converter output interface
1000Base-LX, 1000Base-SX
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ethernet interface type
Gigabit Ethernet
Ethernet LAN data rates
10,100,1000 Mbit/s
Packet forwarding rate (1 Gbps)
1488100 pps
Auto MDI/MDI-X
Y
Auto-negotiation
Y
Duplex system
Full, Half
Fiber optic connector
SFP
Connectivity technology
Wired
Ethernet LAN (RJ-45) ports
1
Fiber ports quantity
1
Mean time between failures (MTBF)
665760 h
Internal
N
LED indicators
Activity, Link, Power, Status
Product colour
Black
Housing material
Aluminium
International Protection (IP) code
IP30
DIN rail mounting
Y
Country of origin
Taiwan
Safety
UL508
Certification
- ISO9001
- FCC Part 15, Class A
- EN61000-6-3
- EN55022
- EN61000-3-2
- EN61000-3-3
- EN61000-6-2
- EN61000-4-2
- EN61000-4-3
- EN61000-4-4
- EN61000-4-5
- EN61000-4-6
- EN61000-4-8
- IEC60068-2-6 Fc
- IEC60068-2-27 Ea
- FED STD 101C Method 5007.1
Input voltage
12 - 48 V
Output current (48V)
0.16 A
Power consumption (max)
7.68 W
Width
50 mm
Depth
110 mm
Height
135 mm
Weight
800 g
Operating temperature (T-T)
-40 - 75 °C
Storage temperature (T-T)
-40 - 85 °C
Operating relative humidity (H-H)
5 - 95%
Package width
198 mm
Package depth
92 mm
Package height
236 mm
Package weight
1 kg
Package type
Box
Quick installation guide
Y
Harmonized System (HS) code
85176990
