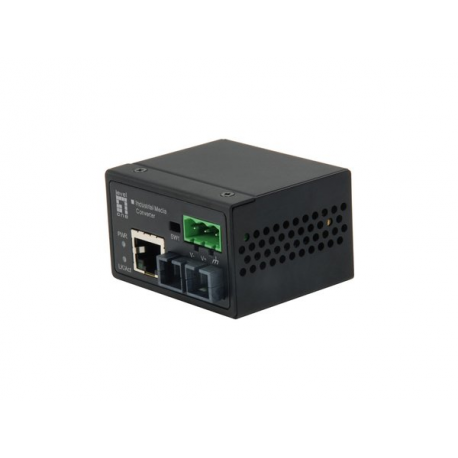

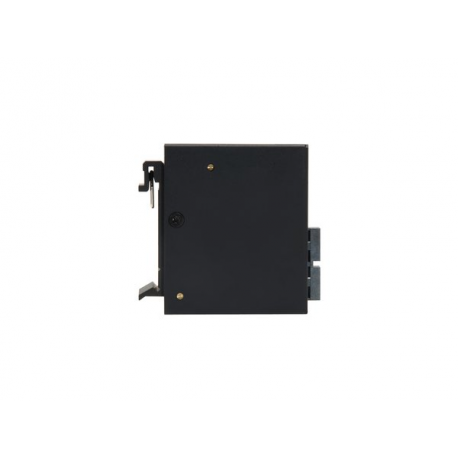

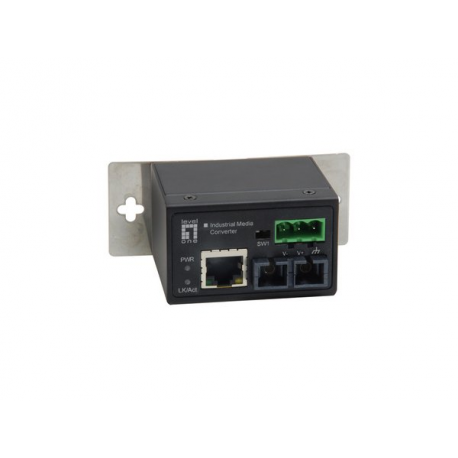

LevelOne IEC-4301 - Media converter - 100Mb LAN - 10Base-T, 100Base-FX, 100Base-TX - RJ-45 / SC single-mode - up to 30 km
LevelOne IEC-4301 - Media converter - 100Mb LAN - 10Base-T, 100Base-FX, 100Base-TX - RJ-45 / SC single-mode - up to 30 km
Ražotājs
•LEVELONE
Ražotāja kods
•IEC-4301
Artikuls
•2218534
Intrastat
•85176990
Pakas svars
•0.26 kg
Kopā pieejams (gab.)
•31
Tuvākā piegāde
•30.03.2026
Maximum data transfer rate
100 Mbit/s
Converter input interface
10Base-T, 100Base-TX
Converter output interface
100Base-FX
Networking standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Ethernet interface type
Fast Ethernet
Ethernet LAN data rates
10,100 Mbit/s
Auto MDI/MDI-X
Y
Auto-negotiation
Y
Store-and-forward
Y
Duplex system
Full, Half
Fiber optic connector
SC
Connectivity technology
Wired
Ethernet LAN (RJ-45) ports
1
Fiber ports quantity
1
Maximum transfer distance
30000 m
Fiber mode structure
Single-mode
Internal
N
LED indicators
Activity, Link, Power
Product colour
Black
Housing material
Aluminium
Country of origin
Taiwan
Certification
FCC Part 15 Subpart B Class A
CE EN 55022 Class A
FCC Part 15 Subpart B Class A,
CE EN 55022 Class A
EN61000-4-2 (ESD) Level 3
EN61000-4-3 (RS) Level 2
EN61000-4-4 (EFT) Level 2
EN61000-4-5 (Surge) Level 2
EN61000-4-6 (CS) Level 2
EN 61000-4-8 (PFMF) Level 1
UL508 (Pending)
EN 50121-4 (Pending)
IEC 60068-2-27
IEC 60068-2-32
IEC 60068-2-6
Input voltage
12 - 60 V
Power consumption (typical)
1.44 W
Width
59 mm
Depth
49 mm
Height
36 mm
Weight
90 g
Operating temperature (T-T)
-40 - 75 °C
Storage temperature (T-T)
-40 - 75 °C
Operating relative humidity (H-H)
5 - 95%
Package width
160 mm
Package depth
105 mm
Package height
65 mm
Package weight
260 g
Package type
Box
Quick installation guide
Y
Sustainability certificates
RoHS
Harmonized System (HS) code
85176990
