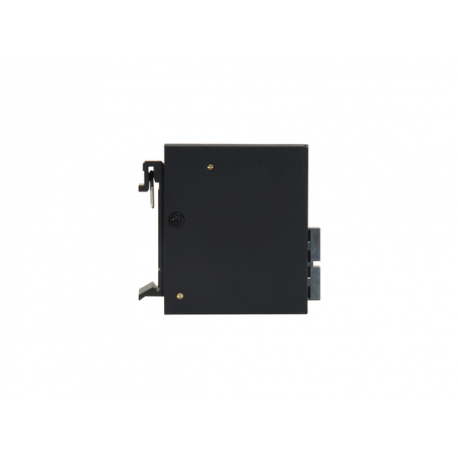

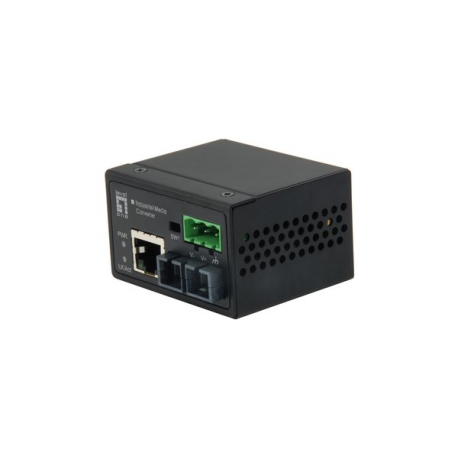

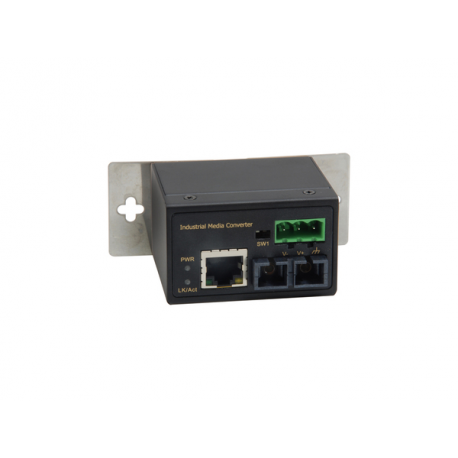

LevelOne IEC-4001 - Media converter - 100Mb LAN - 10Base-T, 100Base-FX, 100Base-TX - RJ-45 / SC multi-mode - up to 2 km
LevelOne IEC-4001 - Media converter - 100Mb LAN - 10Base-T, 100Base-FX, 100Base-TX - RJ-45 / SC multi-mode - up to 2 km
Ražotājs
•LEVELONE
Ražotāja kods
•IEC-4001
Artikuls
•2218536
Intrastat
•85176990
Pakas svars
•0.26 kg
Device Type
Media converter
Form Factor
DIN rail mountable
Connectivity Technology
Wired
Cabling Type
10Base-T, 100Base-FX, 100Base-TX
Data Link Protocol
10Mb LAN, 100Mb LAN
Data Transfer Rate
100 Mbps
Max Transfer Distance
2 km
Status Indicators
Power, link/activity
Features
Auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, half duplex mode, full duplex mode, Link Fault Pass Through function (LFP)
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Interfaces
1 x Ethernet 10Base-T/100Base-TX - RJ-45 female ¦ 1 x Ethernet 100Base-FX - SC multi-mode female x 2
Compliant Standards
EN55022 Class A, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, RoHS, EN 61000-4-8, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, UL 508, REACH, FCC Part 15 B Class A, EN 50121-4
Power Device
External power adapter
Voltage Required
DC 12 - 60 / 18 - 36 V
Power Consumption Operational
1.44 Watt
Width
5.9 cm
Depth
4.9 cm
Height
3.6 cm
Weight
260 g
Min Operating Temperature
-40 °C
Max Operating Temperature
75 °C
Humidity Range Operating
5 - 95% (non-condensing)
