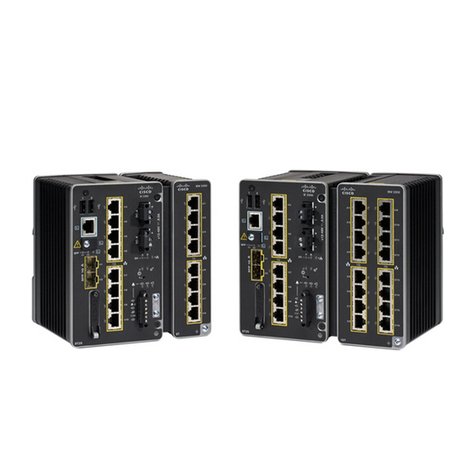

Cisco Catalyst IE3300 Rugged Series - Switch - Managed - 10 x 10/100/1000 (8 PoE+) + 2 x SFP - DIN rail mountable - PoE+ (360 W) - DC power
Cisco Catalyst IE3300 Rugged Series - Switch - Managed - 10 x 10/100/1000 (8 PoE+) + 2 x SFP - DIN rail mountable - PoE+ (360 W) - DC power
Ražotājs
•CISCO
Ražotāja kods
•IE-3300-8P2S-E
Artikuls
•3133295
Intrastat
•85176200
Pakas svars
•1.7 kg
Kopā pieejams (gab.)
•7
Tuvākā piegāde
•30.03.2026
Device Type
Switch - 10 ports - Managed
Enclosure Type
DIN rail mountable
Subtype
Gigabit Ethernet
Ports
10 x 10/100/1000 (8 PoE+) + 2 x SFP
Power Over Ethernet (PoE)
PoE+
PoE Budget
360 W
Capacity
Queues: 8
IGMP multicast groups: 1000
VLAN IDs: 256
STP instances: 128
Routing Protocol
IGMPv2, IGMP, IGMPv3
Remote Management Protocol
SNMP, SNMP 3, SSH, SCP, NTP, DHCP
Authentication Method
RADIUS, TACACS+
Features
IGMP snooping, Syslog support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Dying Gasp support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, DHCP server, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), Uni-Directional Link Detection (UDLD), LLDP support, Remote Switch Port Analyzer (RSPAN), Flexible NetFlow (FNF), IGMP filtering, Storm Control, IP source guard, Resilient Ethernet Protocol (REP), SmartPort technology, rate limit, IGMP querier, Voice VLAN, Guest VLAN, Inter-VLAN Routing, Switched Port Analyzer (SPAN), VLAN Trunking Protocol (VTP) v.3, BPDU Guard, VLAN Trunking Protocol (VTP) v.2
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 1588v2
RAM
2 GB
Flash Memory
1.5 GB
Built-in Devices
SD card reader
Interfaces
10 x 10/100/1000 Base-T RJ-45 8 ports (PoE+)
2 x SFP
3 x alarm
1 x serial (RS-232) RJ-45 console
1 x console mini-USB
Power Device
Internal power supply
Voltage Required
DC 9.6 - 60 V (non-PoE) / 54 V (PoE+) / 48 V (PoE)
Power Consumption Operational
35 Watt
MTBF
611,350 hours
Compliant Standards
EN55024, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-6-2, EN 61000-4-8, IEC 60950-1, EN 61000-6-4, IEC 60068-2-30, IEC 60068-2-27, EN 61326-1, EN 61000-4-16, EN 61000-4-29, IEC 60068-2-14, IEC 60068-2-78, MIL-STD-810, EN 50121-4, IP30, VCCI Class A, CISPR 11 class A, EN 61000-4-10, EN 61000-4-18, IEC 61850-3, FCC CFR47 Part 15 B Class A, IEEE 1613, CNS 13438 Class A, EN 300 386, KN35, UL/CSA60950-1, AS/NZS CISPR 32 Class A, KN32 Class A, IEC 62368-1, IEEE 1588, EN 60068-2-52, EN 60068-2-60, UL 62368-1, EN 60079-15, IEC 60079-0, IEC 60079-15, EN 60079-0, EN 55032/CISPR 32 Class A, CISPR 35, EN 61000-4-17, UL 121201, EN 61850-3, UL/CSA 61010-2-201, IEC/EN 61010-2-201, UL/CSA 60079-0, UL/CSA 60079-15
Width
9.14 cm
Depth
13.5 cm
Height
15.2 cm
Weight
1.7 kg
Service & Support
Limited warranty - 5 years
Min Operating Temperature
-40 °C
Max Operating Temperature
60 °C
Min Storage Temperature
-40 °C
Max Storage Temperature
85 °C
