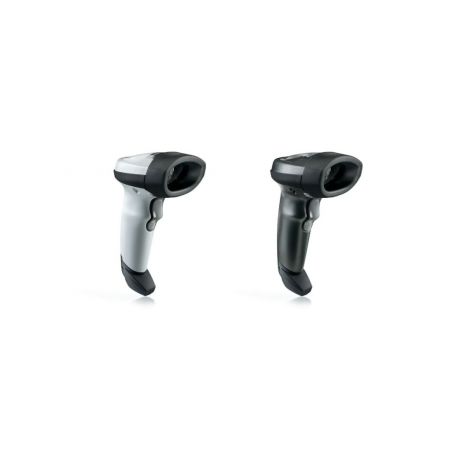

Zebra LI2208 - Barcode scanner - handheld - linear imager - 547 scan / sec - decoded - USB
Zebra LI2208 - Barcode scanner - handheld - linear imager - 547 scan / sec - decoded - USB
Ražotājs
•ZEBRA
Ražotāja kods
•LI2208-SR6U2100SGN
Artikuls
•2966841
Intrastat
•84716070
Pakas svars
•0.14 kg
Type
Barcode scanner - handheld
Colour
Nova white
Localisation
North America
Interface Type
USB
Minimum Bar Width
3 mil
Scan Field Width
2.5 cm - 78.7 cm
Scan Element Type
Linear imager
Light Source Wave Length
617 nm
Scan Mode
Single-pass
Scan Speed
547 scan / sec
Max Working Distance
6 m
Skew (Degrees)
65
Pitch (Degrees)
65
Print Contrast Signal (PCS)
15%
Decode Capability
EAN/JAN, Code 93, Matrix 2 of 5, Code 39, UCC/EAN-128, ISBT 128, NW-7, ISBN, GS1 DataBar, Bookland, Code 32, Code 39 Full ASCII, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, Discrete 2 of 5, Italy Pharmacode, Codabar, Code 128, Code 11, UPC, Interleaved 2 of 5, ITF, IATA 2 of 5, UPC-E1, GS1 DataBar-14, Code 39 Trioptic, GS1 DataBar Expanded, GS1 DataBar Limited
TTL Decoding
Decoded
Connectivity Technology
Wired
Interfaces
1 x USB - Type A
Included Accessories
Stand
Cables Included
1 x USB cable - 2.1 m
Compliant Standards
IEC 60601-1-2, ICES-003 Class B, FCC Part 15 B, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60950-1, IP42
Electric Current Required
40 mA (standby), 165 mA (operating)
Software Included
Drivers & Utilities
Width
9.9 cm
Depth
16 cm
Height
6.7 cm
Weight
140 g
Service & Support
Limited warranty - 5 years
Min Operating Temperature
0 °C
Max Operating Temperature
50 °C
Humidity Range Operating
5 - 95% (non-condensing)
Drop Specification
1.8 m to concrete
