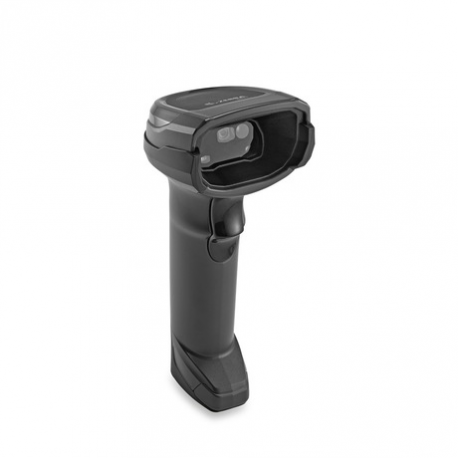

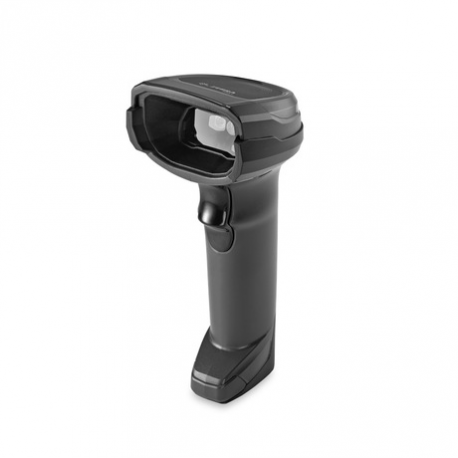

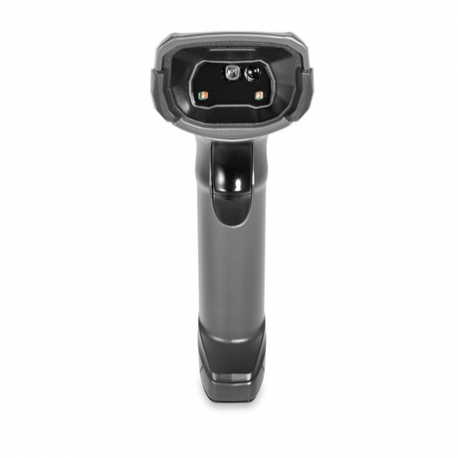

Zebra DS8108-DL - USB Kit - barcode scanner - handheld - 2D imager - decoded - USB
Zebra DS8108-DL - USB Kit - barcode scanner - handheld - 2D imager - decoded - USB
Ražotājs
•ZEBRA
Ražotāja kods
•DS8108-DL7U2100AZW
Artikuls
•1494223
Intrastat
•84716070
Type
Barcode scanner - handheld
Colour
Twilight black
Interface Type
USB
Minimum Bar Width
3 mil
Scan Element Type
2D imager
Sensor Resolution
1280 x 960
Light Source Wave Length
617 nm
Scan Mode
Single-pass
Skew (Degrees)
60
Pitch (Degrees)
60
Print Contrast Signal (PCS)
16%
Decode Capability
Code 39, QR code, Code 128, Data Matrix
TTL Decoding
Decoded
Connectivity Technology
Wired
OK Notification
Beeper, LED indicator
Features
PRZM Intelligent Imaging technology, driving licence parsing
Clock Speed
800 MHz
Interfaces
1 x USB
Included Accessories
Stand
Cables Included
1 x USB cable - external
Compliant Standards
EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class B, RoHS, FIPS 140-2, UL 60950-1, CAN/CSA C22.2 No. 60950-1-07, IP42, EN 50581, IEC 62471, EN 55032 Class B, ICES-003 issue 6 Class B, EN60950-1 (2nd Edition) + A11 + A1 + A12 + A2:2013, EN60950-1 (2nd Edition) + A1 + A2
Width
6.6 cm
Depth
10.7 cm
Height
16.8 cm
Service & Support
Limited warranty - 5 years
Min Operating Temperature
0 °C
Max Operating Temperature
50 °C
Humidity Range Operating
5 - 95% (non-condensing)
Drop Specification
1.8 m to concrete
