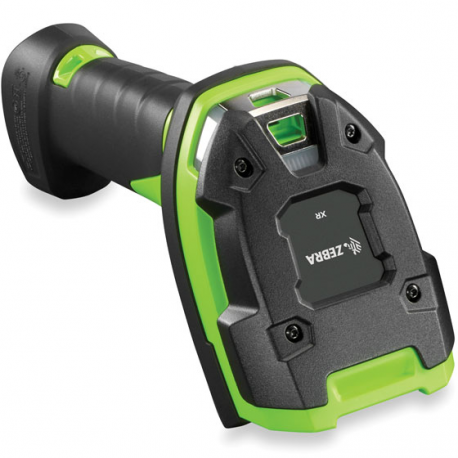

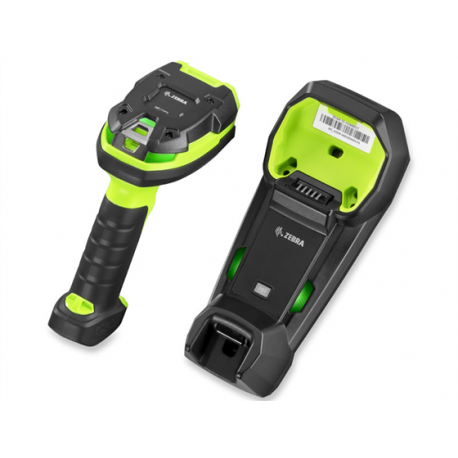

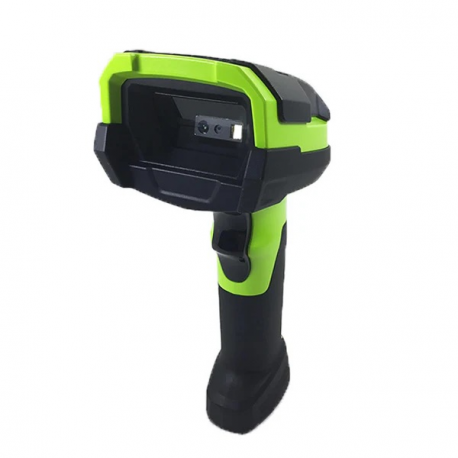

Zebra DS3678-XR - Barcode scanner - portable - ER - 2D imager - decoded - Bluetooth 4.0
Zebra DS3678-XR - Barcode scanner - portable - ER - 2D imager - decoded - Bluetooth 4.0
Ražotājs
•ZEBRA
Ražotāja kods
•DS3678-XR6F003VZWW
Artikuls
•3462337
Intrastat
•84716070
Pakas svars
•0.41 kg
Ražotāja cena
•1057.84 €
Kopā pieejams (gab.)
•624
Tuvākā piegāde
•23.03.2026
Bluetooth scanner, industry, 2D, imager (extended range, SE5800), FIPS, vibration, order separately: power cable, power supply unit, charging/transmitter cradle, IP65, IP68, colour: black, green
Type
Barcode scanner - portable
Colour
Industrial green
Interface Type
Bluetooth 4.0
Minimum Bar Width
5 mil
Scan Engine Focus Range
Extended Range (ER)
Scan Element Type
2D imager
Sensor Resolution
1920 x 1080
Light Source Wave Length
520 nm
Scan Mode
Single-pass
Skew (Degrees)
60
Pitch (Degrees)
60
Print Contrast Signal (PCS)
25%
Decode Capability
Code 93, Code 39, Code 128, Codabar, NW-7, Code 11, MSI-Plessey, UPC/EAN extension, Industrial 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32, Italy Pharmacode, PDF417, MicroPDF417, Composite Codes, TLC39, Aztec, Data Matrix, MaxiCode, QR code, Micro QR code, Chinese Sensible Code, Han Xin, Postal Code
TTL Decoding
Decoded
Connectivity Technology
Wireless
Features
Rugged, Human Interface Device Profile (HID), Serial Port Profile (SPP), 25 kV ESD protection (air discharge), 10 kV ESD protection (direct discharge), 10 kV ESD protection (indirect discharge), Digimarc Barcode Technology
Wireless Connectivity
Bluetooth 4.0 LE, Bluetooth 4.0
Interfaces
1 x USB ¦ 1 x keyboard wedge ¦ 1 x RS-232 ¦ 1 x Ethernet - RJ-45
Compliant Standards
IP67, EN 50581:2012, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+AC:2011, RoHS, IEC 60950-1:2005 + A1:2009 + A2:2013, CAN/CSA C22.2 No. 60950-1-07, UL 60950-1 Second Edition, CU, EN 62471:2008, IEC 62471:2006, UL, VDE, EN 55022:2010/AC:2011, EN 55024:2010, EN 61000-3-2:2006+A1:2009+A2:2009, EN 61000-6-2, EN 60601-1-2:2007, EN 61000-3-3:2013, FCC CFR47 Part 15 B Class B, ICES-003 issue 5 Class B, IEC 60601-1-2:2007, Bluetooth Class 1, IP68
Battery
1 x Lithium Ion
Width
7.7 cm
Depth
14.2 cm
Height
18.5 cm
Weight
410 g
Service & Support
Limited warranty - 3 years
Min Operating Temperature
-20 °C
Max Operating Temperature
50 °C
Humidity Range Operating
5 - 95% (non-condensing)
Drop Specification
3 m to concrete
