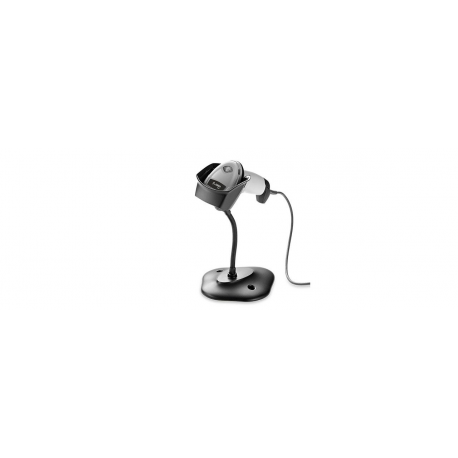

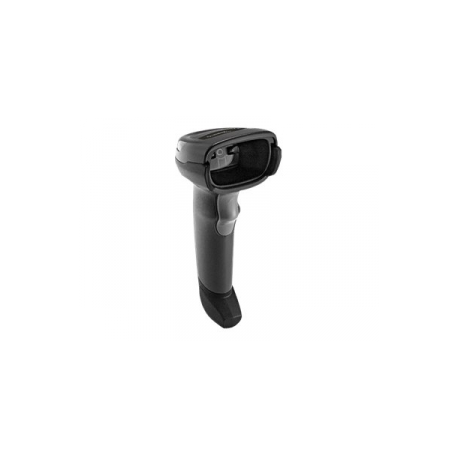

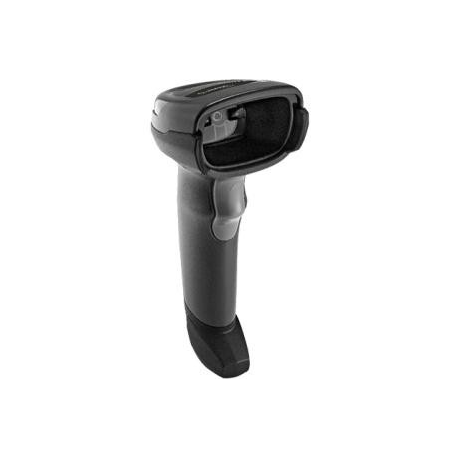

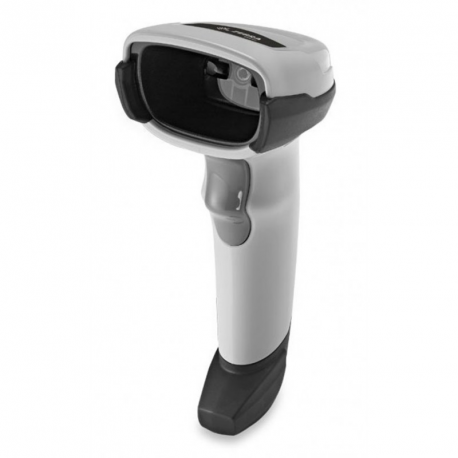

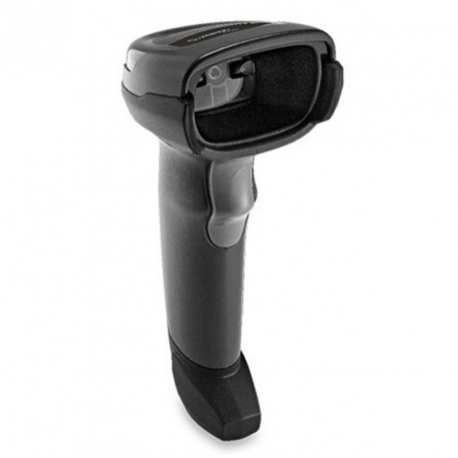

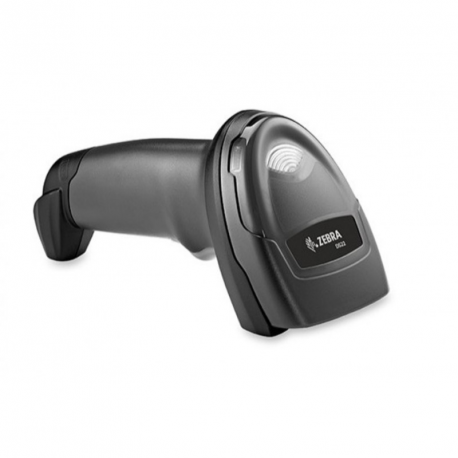

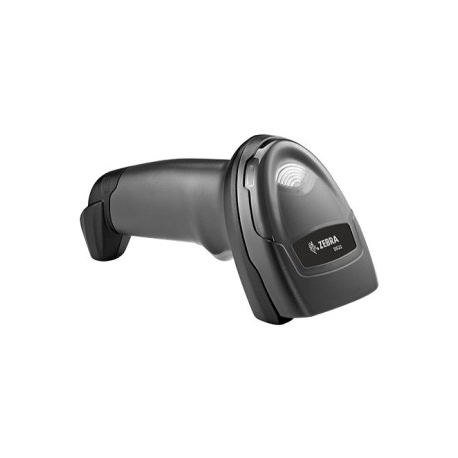

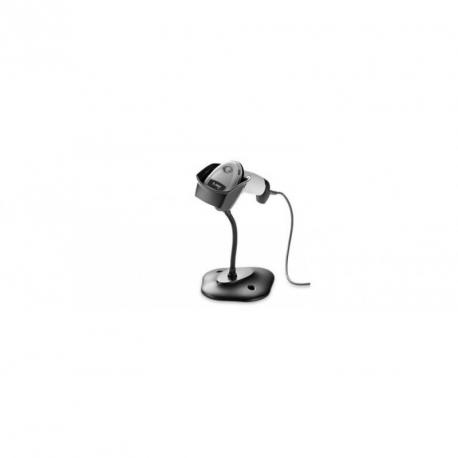

Zebra DS2208 - USB Kit - barcode scanner - handheld - 2D imager - 762 mm / sec - decoded - keyboard wedge, RS-232, USB
Zebra DS2208 - USB Kit - barcode scanner - handheld - 2D imager - 762 mm / sec - decoded - keyboard wedge, RS-232, USB
Ražotājs
•ZEBRA
Ražotāja kods
•DS2208-SR7U2100SGW
Artikuls
•1353076
Intrastat
•84716070
Pakas svars
•0.62 kg
Ražotāja cena
•166.78 €
Kopā pieejams (gab.)
•4229
Tuvākā piegāde
•17.03.2026
Handheld scanner, retail, 2D, imager, multi-interface (RS232, KBW, USB), protection class: IP52, incl.: cable (USB), stand, colour: black
Type
Barcode scanner - handheld
Colour
Twilight black
Interface Type
Keyboard wedge, RS-232, USB
Minimum Bar Width
4 mil
Scan Element Type
2D imager
Sensor Resolution
640 x 480
Light Source Wave Length
624 nm
Scan Mode
Single-pass
Scan Speed
762 mm / sec
Max Working Distance
36.8 cm
Skew (Degrees)
65
Pitch (Degrees)
65
Print Contrast Signal (PCS)
25%
Decode Capability
Code 93, Industrial 2 of 5, Code 39, NW-7, GS1 DataBar, QR code, MaxiCode, Aztec code, Italy Pharmacode, Codabar, Code 128, Code 11, UPC, PDF417, MSI-Plessey, Data Matrix, TLC39, Micro QR code, China Han Xin Code
TTL Decoding
Decoded
Connectivity Technology
Wired
OK Notification
Beeper, LED indicator
Interfaces
1 x USB ¦ 1 x RS-232 ¦ 1 x keyboard wedge
Included Accessories
Cradle
Cables Included
1 x USB cable - external
Compliant Standards
UL, VDE, EN 61000-6-2, RoHS, UL 60950-1 Second Edition, CAN/CSA C22.2 No. 60950-1-07, IP42, EN 61000-3-2:2006+A1:2009+A2:2009, IEC 60601-1-2:2007, EN 50581:2012, ICES-003 issue 5 Class B, IEC 62471:2006, EN 62471:2008, EN 60601-1-2:2007, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+AC:2011, EN 61000-3-3:2013, EN 55024:2010, EN 55022:2010/AC:2011, IEC 60950-1:2005 + A1:2009 + A2:2013, CU, FCC CFR47 Part 15 B Class B
Width
6.6 cm
Depth
9.9 cm
Height
16.5 cm
Weight
161.6 g
Service & Support
Limited warranty - 5 years
Min Operating Temperature
0 °C
Max Operating Temperature
50 °C
Humidity Range Operating
5 - 95% (non-condensing)
Drop Specification
1.5 m to concrete
