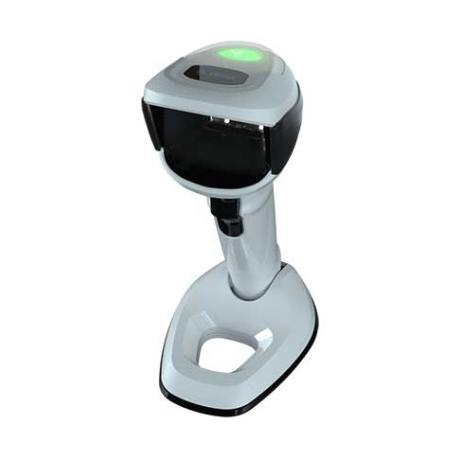

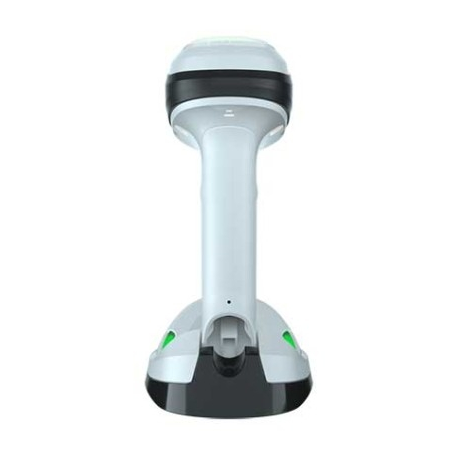

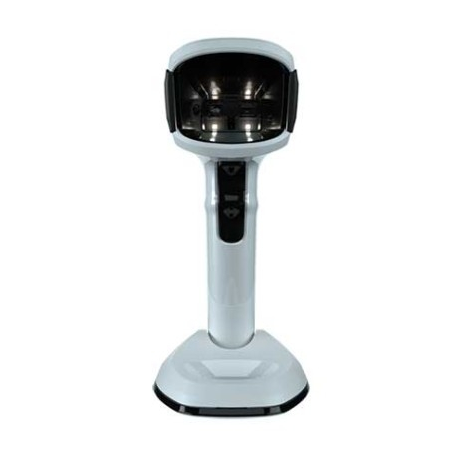

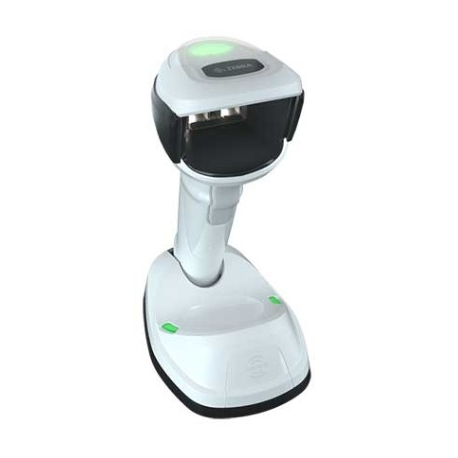

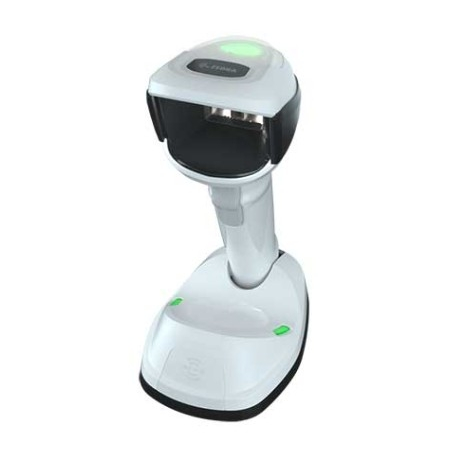

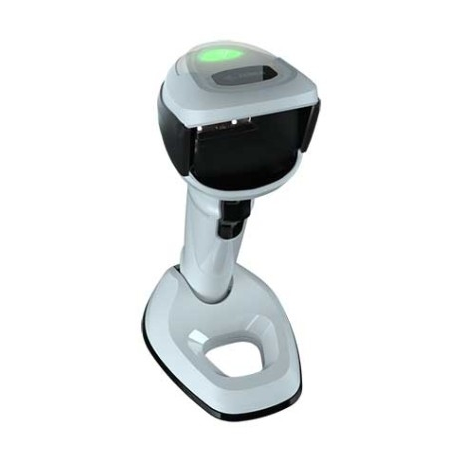

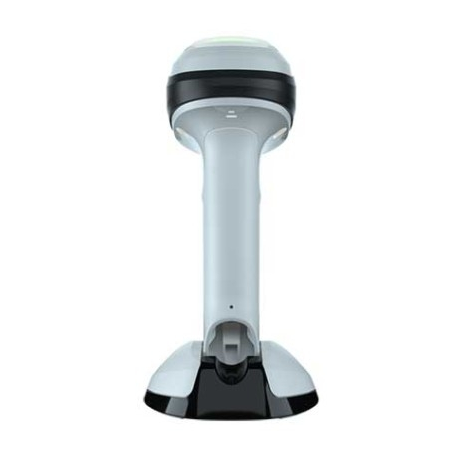

Zebra DS9908-HD - Barcode scanner - handheld - 2D imager - decoded - interface cable required
Zebra DS9908-HD - Barcode scanner - handheld - 2D imager - decoded - interface cable required
Ražotājs
•ZEBRA
Ražotāja kods
•DS9908-HD4000WZZWW
Artikuls
•1573932
Intrastat
•84716070
Pakas svars
•0.45 kg
Ražotāja cena
•481.56 €
Presentation scanner, 2D, imager (high density), multi-interface (RS232, KBW, USB), IP52, order separately: interface cable, colour: white
Type
Barcode scanner - handheld
Colour
Alphine white
Interface Type
Interface cable required
Minimum Bar Width
3 mil
Scan Element Type
2D imager
Sensor Resolution
1280 x 800
Light Source Wave Length
528 nm
Scan Mode
Single-pass
Max Working Distance
45.7 cm
Skew (Degrees)
60
Pitch (Degrees)
60
Print Contrast Signal (PCS)
16%
Decode Capability
Code 93, Code 39, NW-7, GS1 DataBar, QR code, MaxiCode, Aztec code, MicroPDF417, Italy Pharmacode, Codabar, Code 128, Code 11, UPC, PDF417, MSI-Plessey, Data Matrix, TLC39, OCR-A, OCR-B, Micro QR code, China Han Xin Code, Composite, Korean 3 of 5, Base 32
TTL Decoding
Decoded
Connectivity Technology
Wired
OK Notification
Beeper, LED indicator
Features
ESD (electrostatic discharge) safe
Compliant Standards
EN 61000-4-2, IP52, EN 50581:2012, EN 62471:2008, EN 61000-3-3:2013, EN 55024:2010, FCC CFR47 Part 15 B Class B, EN 55024:2010+A1:2015, IEC 62368-1, ICES-003 issue 6 Class B, EN 55032:2012+AC:2013 Class B, EN 62368-1:2014/AC:2015, EN 61000-3-2:2014 Class A, IEC 62471-1:2006, EN 55032:2015+AC:2016 Class B, EN 55035:2017
Electric Current Required
70 mA (standby), 356 mA (operating)
Width
9.4 cm
Depth
13.2 cm
Height
20.3 cm
Weight
330 g
Service & Support
Limited warranty - 5 years
Min Operating Temperature
0 °C
Max Operating Temperature
50 °C
Humidity Range Operating
5 - 95% (non-condensing)
Drop Specification
1.5 m to concrete
