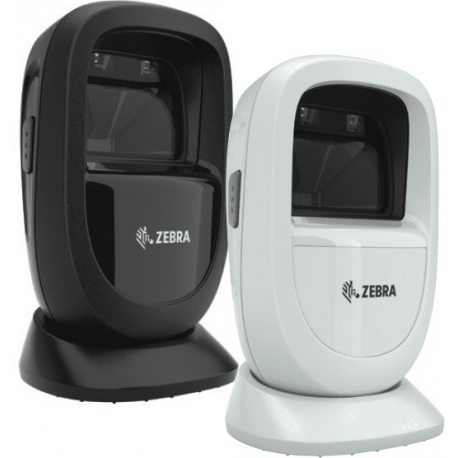

Zebra DS9300 Series DS9308 - Standard Range (SR) - USB Kit - barcode scanner - desktop - 2D imager - 3050 mm / sec - decoded - USB
Zebra DS9300 Series DS9308 - Standard Range (SR) - USB Kit - barcode scanner - desktop - 2D imager - 3050 mm / sec - decoded - USB
Ražotājs
•ZEBRA
Ražotāja kods
•DS9308-SR4U2100AZE
Artikuls
•1673512
Intrastat
•84716070
Pakas svars
•0.502 kg
Ražotāja cena
•422.67 €
Kopā pieejams (gab.)
•3023
Tuvākā piegāde
•23.03.2026
Presentation scanner, retail, 2D, imager (standard range), 0-27.9cm reading distance, multi-interface (RS232, KBW, USB, RS485), protection class: IP52, incl.: cable (USB, cable type: straight, cable length 2 m), colour: black
Type
Barcode scanner - desktop
Colour
Midnight black
Localisation
EMEA
Interface Type
USB
Minimum Bar Width
3 mil
Scan Element Type
2D imager - Red LED
Sensor Resolution
1280 x 800
Light Source Wave Length
617 nm
Scan Mode
Single-pass
Scan Speed
3050 mm / sec
Max Working Distance
27.9 cm
Skew (Degrees)
60
Pitch (Degrees)
60
Print Contrast Signal (PCS)
15%
Decode Capability
Code 93, Matrix 2 of 5, Code 39, UCC/EAN-128, ISBT 128, NW-7, IATA, ISBN, coupon code, GS1 DataBar, MaxiCode, Aztec code, Bookland, Code 39 Full ASCII, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, Discrete 2 of 5, MicroPDF417, Italy Pharmacode, Codabar, Code 128, Code 11, UPC, Interleaved 2 of 5, Postnet, PDF417, MSI-Plessey, ITF, PLANET, TLC39, Australian Post, Japanese Post, Kix (Netherlands) Post, IATA 2 of 5, UPC-E1, UPC-A/EAN-13 with Extended Coupon Code, EAN-UCC Composite, MacroPDF417, ISSN, Code 128 Full ASCII, Code 39 Trioptic, UK Post, Royal Mail, 4-State postal code, CC-B, GS1 DataBar Omnidirectional, GS1 DataBar Expanded Stacked
TTL Decoding
Decoded
Connectivity Technology
Wired
OK Notification
Beeper, LED indicator
Features
ESD (electrostatic discharge) safe, deactivation of EAS tag, standard range scanning
Interfaces
1 x USB
Cables Included
1 x USB cable - external
Compliant Standards
EN 61000-4-2, IP52, EN 50581:2012, EN 62471:2008, EN 61000-3-3:2013, EN 55024:2010, FCC CFR47 Part 15 B Class B, EN 55024:2010+A1:2015, EN 62368-1, IEC 62368-1, ICES-003 issue 6 Class B, EN 55032:2012+AC:2013 Class B, EN 61000-3-2:2014 Class A, IEC 62471-1:2006, EN 55032:2015+AC:2016 Class B, EN 55035:2017
Power Device
Power adapter
Electric Current Required
135 mA (standby), 335 mA (typical)
Width
8.6 cm
Depth
8.3 cm
Height
14.5 cm
Weight
318 g
Service & Support
Limited warranty - 3 years
Min Operating Temperature
0 °C
Max Operating Temperature
50 °C
Humidity Range Operating
5 - 95% (non-condensing)
Drop Specification
1.5 m to concrete
