Eaton 9PX G2 9PX5KIRTNG2 - UPS (rack-mountable / external) - AC 200 / 208 / 220 / 230 / 240 V - 5000 Watt - 5000 VA - 1-phase - 5 Ah - Ethernet 10 / 100 / 1000, RS-232, USB - output connectors: 13 - PFC - 3U - 19" - black, silver
Eaton 9PX G2 9PX5KIRTNG2 - UPS (rack-mountable / external) - AC 200 / 208 / 220 / 230 / 240 V - 5000 Watt - 5000 VA - 1-phase - 5 Ah - Ethernet 10 / 100 / 1000, RS-232, USB - output connectors: 13 - PFC - 3U - 19" - black, silver
Ražotājs
•EATON
Ražotāja kods
•9PX5KIRTNG2
Artikuls
•4459959
Intrastat
•84734080
Pakas svars
•43.1 kg
Kopā pieejams (gab.)
•2
Tuvākā piegāde
•15.05.2026
Device Type
UPS - Power Factor Correction (PFC) - rack-mountable / external
Height (Rack Units)
3U
Rack Size
19"
Colour
Black, silver
UPS Technology
On-line
Input Voltage
AC 200/208/220/230/240 V
Input Voltage Range
AC 100 - 276 V
Frequency Provided
50/60 Hz
Input Wiring
1-phase
Frequency Required
40 - 70 Hz
Input Connectors
1 x hardwire
Power Output Connectors Details
6 x power IEC 60320 C13 ¦ 6 x power IEC 60320 C39 ¦ 1 x hardwire
Output Voltage
AC 200/208/220/230/240 V ± 1% - 50/60 Hz
Power Capacity
5000 Watt / 5000 VA
Output Waveform
Sinewave
Circuit Protection
Circuit breaker
Efficiency
96.5%
Power Factor (PF)
0.99
Type
Expandable
Quantity
15
Technology
Lead Acid
Voltage Provided
12 V
Capacity
5 Ah
Run Time (Up To)
3 min at full load ¦ 9 min at half load
Features
Sealed
Remote Management Interface
Ethernet 10/100/1000, RS-232, USB
Interfaces

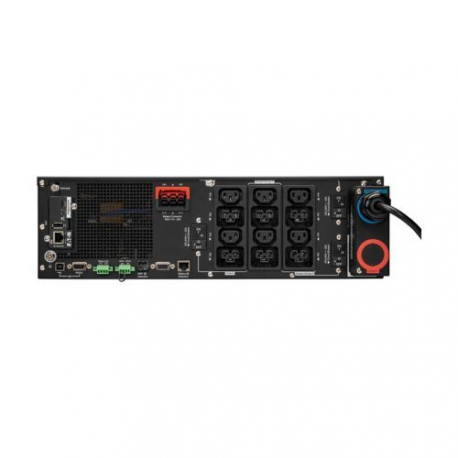

1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x USB - 4 pin USB Type B ¦ 1 x EPO (emergency power off) - mini terminal block ¦ 1 x relay output - mini terminal block ¦ 1 x management (Gigabit Ethernet) - RJ-45
Expansion Slots
1 (total) / 0 (free) x Expansion Slot
Included Accessories
3 cable glands, network management card, tower support stands
Cables Included
2 x power cable (IEC) - external - 1.2 m ¦ USB cable - external - 1.8 m
Rack Mounting Kit
Included
Features
Advance Battery Management+ (ABM+), automatic battery test, deep discharge protection, automatic external battery detection, double conversion, LCD display, internal bypass, automatic shut down, hot-swappable batteries
Compliant Standards
LVD, EMC, RoHS, REACH, WEEE, Packaging Directive, IEC/EN 62040-1, IEC/EN 62040-2, IEC/EN 62040-3, cULus, UKCA, CM, UKR, RCM
ENERGY STAR
Yes
Service & Support
Limited warranty - electronics - 3 years ¦ Limited warranty - battery - 2 years
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
0 - 95% (non-condensing)
Sound Emission
40 dB
Width
44 cm
Depth
68.4 cm
Height
13 cm
Weight
43.1 kg
