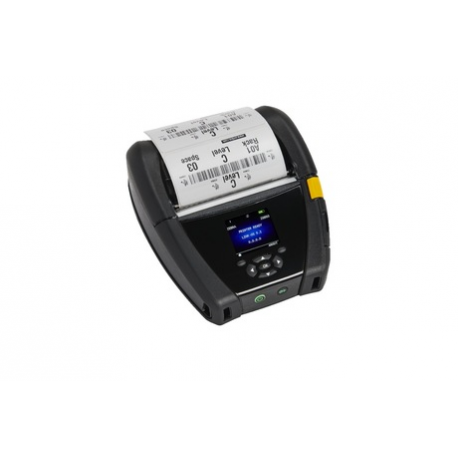

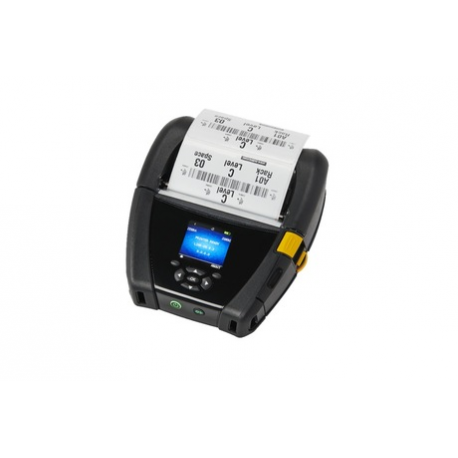

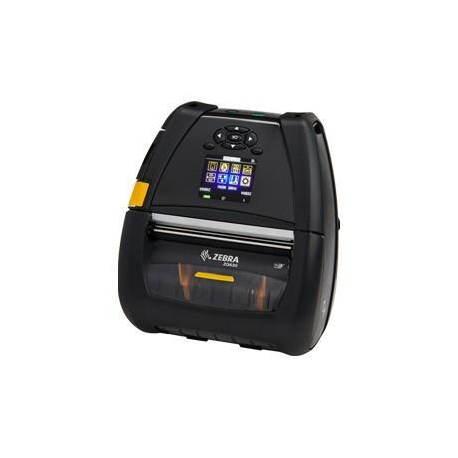

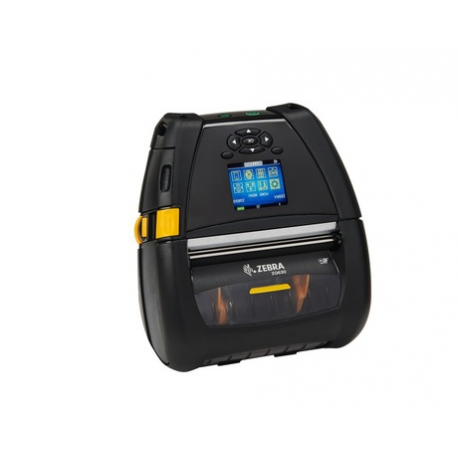

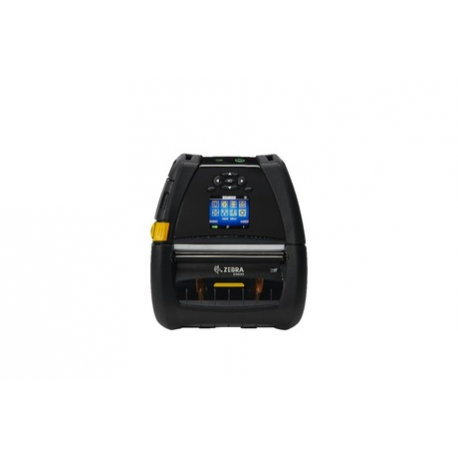

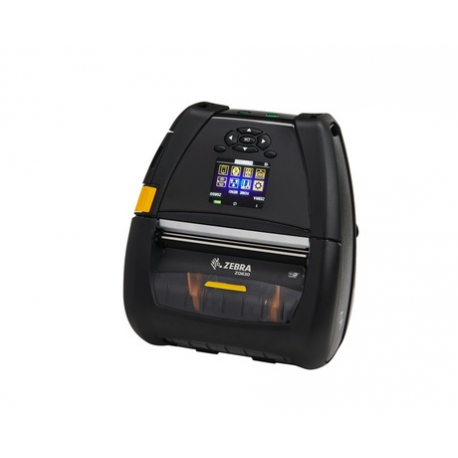

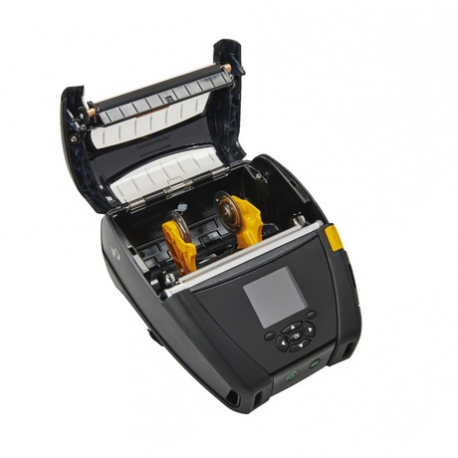

Zebra ZQ600 Series ZQ630 RFID - Label printer - direct thermal - Roll (11.2 cm) - 203 dpi - up to 115 mm / sec - USB, NFC, RS232C, Bluetooth 4.1 LE
Zebra ZQ600 Series ZQ630 RFID - Label printer - direct thermal - Roll (11.2 cm) - 203 dpi - up to 115 mm / sec - USB, NFC, RS232C, Bluetooth 4.1 LE
Ražotājs
•ZEBRA
Ražotāja kods
•ZQ63-AUFAE11-00
Artikuls
•1665251
Intrastat
•84433210
Pakas svars
•1.1 kg
Kopā pieejams (gab.)
•2
Tuvākā piegāde
•23.03.2026
Printer Type
Label printer - direct thermal - monochrome
Print Speed
Up to 115 mm/sec - max speed
Built-in Devices
Status LCD, RFID reader/writer
Connectivity Technology
Wireless
Interface
USB, NFC, RS232C, Bluetooth 4.1 LE
Max Resolution (B&W)
203 dpi
Language Simulation
ZPL, EPL, Extensible Mark-up Language (XML), Comtec Printer Control Language (CPCL), ZBI 2.x
Fonts
CG Triumvirate Bold Condensed
Features
Label Taken Sensor (LTS), Black Mark sensor, gap sensor
Display Resolution
288 x 240
Fonts Included
25 x bitmapped ¦ 1 x scalable
Barcodes
Code 93, Code 39, UCC/EAN-128, NW-7, GS1 DataBar, QR code, MaxiCode, Aztec code, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Interleaved 2 of 5, Postnet, PDF417, Data Matrix, FIM, TLC39, Plessey, EAN-8, EAN-13, MSI, RSS
Printer Features
XML-enabled printing
Processor
400 MHz
RAM Installed (Max)
256 MB
Flash Memory
512 MB
Media Type
Receipt paper, continuous labels, tag labels, die cut labels
Max Media Size
Roll (11.2 cm)
Min Media Size (Custom)
12.7 mm
Max Media Size (Custom)
112 mm x 813 mm
Media Sizes
Roll (5.1 - 11.2 cm)
Max Printing Width
104 mm
Max Printing Length
813 mm
Media Thickness Range
0.058 mm - 0.15 mm
Roll Maximum Outer Diameter
66 mm
Roll Core Diameter
19 mm, 34.9 mm
Media Feeders
1 x manual - 1 roll - Roll (11.2 cm)
Compliant Standards
ISO/IEC 18000-63, UHF EPC Gen 2 V2
Networking
Print server
Connections
1 x USB - mini-USB Type B ¦ 1 x RS-232C
Included Accessories
Belt clip, shoulder strap
Compliant Standards
CSA, TUV, EN 60950, EN55024, EN55022 Class B, FCC Part 15 B, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-5, VCCI Class B, IP43, IEEE 802.11r
Type
Lithium Ion
Included
1
Capacity
6800 mAh
Software Included
Link-OS
Service & Support
Limited warranty - parts and labour - 1 year
Min Operating Temperature
-20 °C
Max Operating Temperature
50 °C
Humidity Range Operating
10 - 90% (non-condensing)
Width
16.5 cm
Depth
18.7 cm
Height
8.25 cm
Weight
1.1 kg
