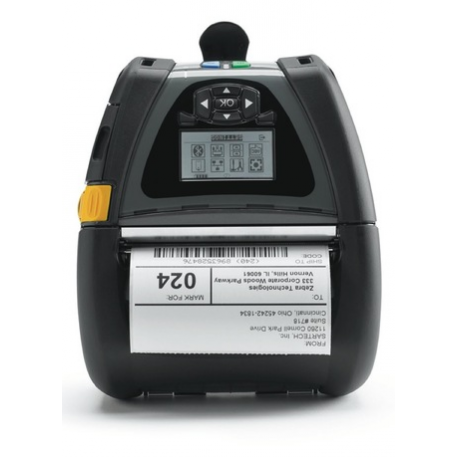

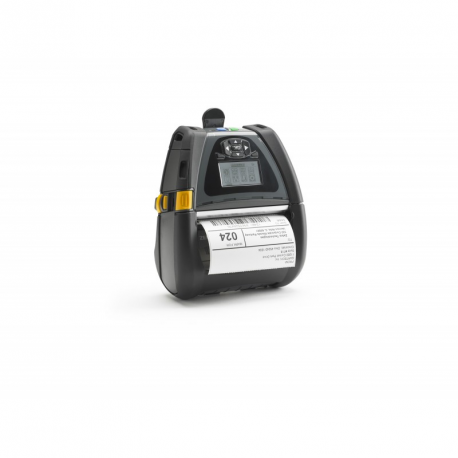

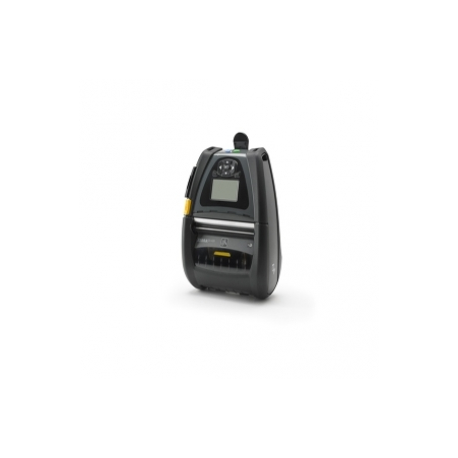

Zebra QLn 420 - Label printer - direct thermal - Roll (11.2 cm) - 203 dpi - up to 102 mm / sec - USB, serial, Wi-Fi(n), NFC, Bluetooth 3.0 - tear bar
Zebra QLn 420 - Label printer - direct thermal - Roll (11.2 cm) - 203 dpi - up to 102 mm / sec - USB, serial, Wi-Fi(n), NFC, Bluetooth 3.0 - tear bar
Ražotājs
•ZEBRA
Ražotāja kods
•QN4-AUNAEM11-00
Artikuls
•1116742
Intrastat
•84433210
Pakas svars
•1.1 kg
Printer Type
Label printer - direct thermal - monochrome
Print Speed
Up to 102 mm/sec - max speed - 203 dpi
Built-in Devices
Status LCD, tear bar
Connectivity Technology
Wireless
Interface
USB, serial, Wi-Fi(n), NFC, Bluetooth 3.0
Max Resolution (B&W)
203 dpi
Language Simulation
ZPL, EPL, Comtec Printer Control Language (CPCL)
Fonts
CG Triumvirate Bold Condensed
Styles & Effects
Rotated text
Features
Fixed gap/bar media sensor, realtime clock, label sensor, Black Mark sensor, tear bar
Display Resolution
240 x 128
Keyboard
7 keys
Fonts Included
25 x bitmapped ¦ 1 x scalable
Barcodes
Code 93, Code 39, UCC/EAN-128, NW-7, GS1 DataBar, QR code, MaxiCode, Aztec code, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Interleaved 2 of 5, Postnet, PDF417, MSI-Plessey, Data Matrix, FIM, TLC39
Processor
400 MHz
RAM Installed (Max)
128 MB
Flash Memory
256 MB
Media Type
Labels, linerless labels, receipt labels, die cut labels
Max Media Size
Roll (11.2 cm)
Min Media Size (Custom)
51 mm
Max Media Size (Custom)
112 mm
Media Sizes
Roll (5.1 - 11.2 cm)
Max Printing Width
104 mm
Max Printing Length
813 mm
Media Thickness Range
0.0813 mm - 0.1905 mm
Roll Maximum Outer Diameter
66 mm
Roll Core Diameter
19 mm, 34.9 mm
Media Feeders
1 x manual - 1 roll - Roll (11.2 cm)
Connections
1 x RS-232 - 14 pin DIN ¦ 1 x USB - mini-USB Type B ¦ 1 x docking
Included Accessories
Belt clip, shoulder strap
Features
Water-resistant, dust-resistant, drop-resistant, built-in battery charger
Compatible with Windows 7
"Compatible with Windows 7" software and devices carry Microsoft’s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7.
Compliant Standards
CSA, UL, TUV, EN 60950, EN55024, EN55022 Class B, FCC Part 15 B, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-5, EN55024 Class B, IEC 60529 IP43, VCCI Class B
Type
Lithium Ion
Required Qty
1
Included
1
Capacity
5000 mAh
Software Included
Drivers & Utilities, Link-OS
Service & Support
Limited warranty - 1 year ¦ Limited warranty - printhead - 6 months
Min Operating Temperature
-20 °C
Max Operating Temperature
50 °C
Humidity Range Operating
10 - 90% (non-condensing)
Width
16.5 cm
Depth
8.25 cm
Height
18.7 cm
Weight
1.1 kg
