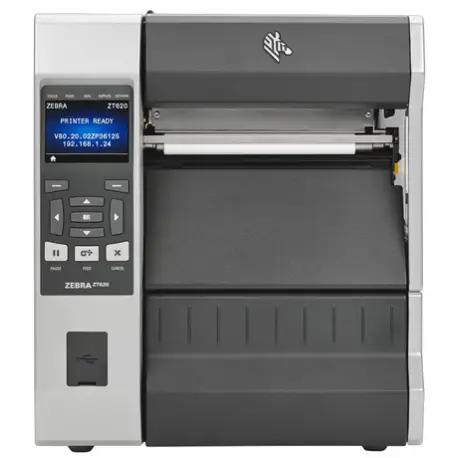

Zebra ZT620 - Label printer - direct thermal \/ thermal transfer - Roll (17 cm) - 203 dpi - up to 305 mm\/sec - USB 2.0, serial, Gigabit LAN, USB host, Bluetooth 5.3 - cutter - tear bar
Zebra ZT620 - Label printer - direct thermal \/ thermal transfer - Roll (17 cm) - 203 dpi - up to 305 mm\/sec - USB 2.0, serial, Gigabit LAN, USB host, Bluetooth 5.3 - cutter - tear bar
Ražotājs
•ZEBRA
Ražotāja kods
•ZT62062-T0EG100Z
Artikuls
•4223594
Intrastat
•84433210
Ražotāja cena
•4253.49 €
Label printer, industrial printer, thermal transfer, 8 dots/mm (203 dpi), media width (max.): 178 mm, print width (max.): 168 mm, roll diameter (max.): 203 mm, speed (max.): 305 mm/s, display (touch screen, colour), real time clock, USB, RS232, Bluetooth (Class 5.3), Ethernet (10/100/1000 Mbit), Wi-Fi (802.11ax), RAM: 1 GB, Flash: 2 GB, emulation: ZPL, ZPLII, XML, incl.: power cable (EU, UK), order separately: interface cable
EthernetTiešā pārneseTermālpārnese203 dpi
Printer Type
Label printer - direct thermal / thermal transfer - monochrome
Print Speed
Up to 305 mm/sec - max speed
Built-in Devices
4.3 inch colour LCD touch screen
Connectivity Technology
Wireless
Interface
USB 2.0, serial, Gigabit LAN, USB host, Bluetooth 5.3
Max Resolution (B&W)
203 dpi
Language Simulation
ZPL, ZPL II, Extensible Mark-up Language (XML)
Features
Clear window
Cutter
Yes
Fonts Included
16 x bitmapped ZPL II
2 x scalable ZPL
Barcodes
Code 11, Code 39, Code 93, Code 128A, ISBT 128, UPC-A, UPC-E, EAN-8, EAN-13, Plessey, Postnet, Standard 2 of 5, Industrial 2 of 5, Interleaved 2 of 5, LOGMARS, MSI, Codabar, PLANET, CODABLOCK, PDF417, Code 49, DataMatrix, MaxiCode, QR code, TLC39, Micropdf, RSS-14, Aztec, Code 128B, Code 128C, 2D, RSS
Printer Features
Multi-level Element Energy Equalizer (E3)
RAM Installed (Max)
1 GB
Flash Memory
2 GB
Media Type
Continuous labels, die cut labels
Max Media Size
Roll (17 cm)
Min Media Size (Custom)
51 mm
Max Media Size (Custom)
178 mm
Media Sizes
Roll (5.1 - 17 cm)
Max Printing Width
168 mm
Max Printing Length
2032 mm
Media Thickness Range
0.058 mm - 0.25 mm
Roll Maximum Outer Diameter
203 mm
Roll Core Diameter
76 mm
Media Feeders
1 x manual - 1 roll - Roll (17 cm)
Networking
Print server
Connections
1 x RS-232 - 9 pin D-Sub (DB-9)
1 x USB 2.0 - 4 pin USB Type B
1 x Gigabit LAN - RJ-45
2 x USB host - 4 pin USB Type A
Included Accessories
Power cable
Compliant Standards
IEC 60950, EN 55022 Class B, EN55024, EN 61000-3-2, EN 61000-3-3, cTUVus, FCC Subpart B, ICES-003, VCCI, C-Tick, NOM, Argentina S-Mark, CCC, CU, BSMI, KCC, SABS, INMETRO
Power Device
Power supply - internal
Voltage Required
AC 90-265 V
Frequency Required
47 - 63 Hz
Power Factor Correction
Yes
ENERGY STAR
Yes
Service & Support
Limited warranty - 1 year
Min Operating Temperature
5 °C
Max Operating Temperature
40 °C
Humidity Range Operating
20 - 85% (non-condensing)
Width
34.145 cm
Depth
50.5 cm
Height
39.568 cm
Weight
26 kg
Kit, Set of Cables, ZT610 Micro Label Printer SKUs starting with ZT61A Kods: P1083320-172
PWRCORD JPN 79 IN DETACHABLEKods: 37609
Zebra - Printhead mounting screw (pack of 5)Kods: P1083320-112
Kit Ruler for Toggle Pos. ZT610, ZT610RKods: P1083320-025
Kit Ground Contact ZT600 SeriesKods: P1083320-024
Kit Cover for USB Port ZT600 SeriesKods: P1083320-003
Kit Strip Plate, Static Brush ZT610/610RKods: P1083320-030
Zebra - Drive beltKods: P1083320-056
Kit, Media Holder Tear, ZT610Kods: P1083320-169
Kit, Peel Plate Tear, ZT610 Micro Label Printer SKUs starting with ZT61A Kods: P1083320-167
Zebra - Spare parts kitKods: P1006121
Kit Feet for the Printer ZT600 SeriesKods: P1083320-095
Zebra - Peel / tear barKods: P1083320-078
Zebra - Media supportKods: P1083320-076
Kit, Peel Roller, ZT610 Micro Label Printer SKUs starting with ZT61A Kods: P1083320-162
Zebra - Head open sensorKods: P1083320-053
Kit Reflective Sensor (black mark) ZT600Kods: P1083320-048
Kit, Media Holder Rewind, ZT610Kods: P1083320-170
Zebra - Printer platen roller - for Zebra ZT610Kods: P1083320-032
Kit USB PCBA & Cover ZT600 SeriesKods: P1083320-045
Zebra - Ribbon out sensorKods: P1083320-051
Zebra - Trim panelsKods: P1083320-008
Kit Window for Media Cover ZT600 SeriesKods: P1083320-007
Kit, Rewind Pinch Roller, ZT610 Micro Label Printer SKUs starting with ZT61A Kods: P1083320-163
Zebra - Platen rollerKods: P1083320-033
Zebra - Media rewind rollerKods: P1083320-103
Kit Retainers for Rollers ZT600 SeriesKods: P1083320-034
Zebra - Hardware for ribbon supply spindleKods: P1083320-067
Kit, Covers for the touch control panel, Qty of 3, ZT600 SeriesKods: P1083320-125
Kit Antenna Replacement N Radi os for TabletopsKods: P1037974-053
Kit, Media Guide, ZT610 Micro Label Printer SKUs starting with ZT61A Kods: P1083320-171
Zebra - Media dancerKods: P1083320-072
Zebra - Take label sensorsKods: P1083320-052
Zebra - Media rewind plateKods: P1083320-090
Kit Toggle ASSY Only (Qty of 2) ZT600Kods: P1083320-029
Zebra - Plates kit - sideKods: P1083320-093
Zebra - CoversKods: P1083320-092
Kit Cable Clamps ZT600 SeriesKods: P1083320-107
Kit Idler Pulleys (Qty 5) ZT600 SeriesKods: P1083320-055
Zebra - Printer rewind roller - for Zebra ZT620Kods: P1083320-104
Zebra - Media rewind plate kitKods: P1083320-091
Kit Support Frame ZT610, ZT610RKods: P1083320-105
Kit, Front Sensor Tear, ZT610 Micro Label Printer SKUs starting with ZT61A Kods: P1083320-160
Zebra - USB board / cardKods: P1083320-094
Kit, Front Sensor Rewind, ZT610 Micro Label Printer SKUs starting with ZT61A Kods: P1083320-159
Zebra - Replacement RFID hardware and cablesKods: P1083320-042
Zebra - Media supply hangerKods: P1083320-059
Kit Media Guide Assembly ZT610, ZT610RKods: P1083320-074
Kit, Rewind Sensor, ZT610 Micro Label Printer SKUs starting with ZT61A Kods: P1083320-166
Zebra - Electronic coverKods: P1083320-004
Zebra - Static brush and guard for cutterKods: P1066613
Kit Ribbon Rollers ZT610, ZT610RKods: P1083320-080
Kit, Catch Tray for Cutter, ZT610, ZT610RKods: P1083320-126
Kit, Spindle Rewind, ZT610 Micro Label Printer SKUs starting with ZT61A Kods: P1083320-164
Zebra - Ribbon supply spindle assembly - for Zebra ZT610Kods: P1083320-064
Kit Pivot Bar, Toggle ASSY ZT610, ZT610RKods: P1083320-027
Kit Drive Motor with Pulley Assy ZT600Kods: P1083320-057
Kit, Catch Tray for Cutter, ZT620, ZT620RKods: P1083320-127
Zebra - Assorted hardwareKods: P1083320-096
Kit Media and Ribbon Path Lights ZT600Kods: P1083320-044
Kit Upper Extrusion ZT610, ZT610RKods: P1083320-110
Kit, Inside Coated Ribbon Supply Spindle, ZT610, ZT610RKods: P1083320-131
Zebra - Ribbon supply spindle assembly - for Zebra ZT620Kods: P1083320-066
Zebra - Media supply hangerKods: P1083320-061
Kit Electronics Cables ZT600 SeriesKods: P1083320-046
KIT PACKAGING MATERIALKods: P1083320-115
Zebra - Media sensorKods: P1083320-047
Kit Packaging Material (Qty of 1) ZT620, ZT620RKods: P1083320-117
Zebra Applicator Interface Card 5V-24V - Printer upgrade kitKods: P1083320-038
Kit, Inside Coated Ribbon Supply Spindle, ZT620, ZT620RKods: P1083320-132
Zebra - Media supply spindle for 40mm ID coresKods: P1083320-113
Zebra - Ribbon take up spindleKods: P1083320-068
Zebra - Connectivity PCBAKods: P1083320-036
Zebra - Ribbon take up spindleKods: P1083320-069
Zebra - Media rewind upgradeKods: P1083320-084
Zebra - Print mechanism hardwareKods: P1083320-022
Zebra - Media rewind spindle replacementKods: P1083320-070
Zebra - Media supply spindleKods: G22253M
Kit Media Rewind Upgrade ZT61A Small Label Printer,Kods: P1141600-001
Zebra - Power supply (internal) - for Zebra ZT610, ZT620Kods: P1083320-043
Zebra - Printer media cover - for Zebra ZT610Kods: P1083320-005
Zebra - Media supply spindle - for Zebra ZT620Kods: P1083320-114
Zebra - Print server - 1000Base-T - for Zebra ZT510, ZT610, ZT620Kods: P1083320-039
Zebra - Media rewind option - for Zebra ZT620Kods: P1083320-085
Zebra - Media coverKods: P1083320-006
Zebra - Network adapter - 802.11ac - for Zebra ZT510, ZT610, ZT620Kods: P1083320-037C
Zebra - Print server - Wi-Fi 5 - for Zebra ZT510, ZT610Kods: P1083320-037A
Zebra - Kit - print server - Bluetooth 5.3, Wi-Fi 5, Wi-Fi 6Kods: P1083320-037G
Zebra - Control panel, standardKods: P1083320-001
Zebra - Touch screen control panelKods: P1083320-122
Zebra - Control panel, standardKods: P1083320-108
Kit Touch Control Panel ZT620 ZT620RKods: P1083320-123
Zebra - Printhead (203 dpi) - for Zebra ZT610Kods: P1083320-010
Zebra - Media supply spindle for 3" ID coresKods: P1083320-060
Zebra - Printhead (300 dpi) - for Zebra ZT610Kods: P1083320-011
Kit Media Spindle for 3"" ID cores ZT620Kods: P1083320-062
Kit Cutter Upgrade ZT610, ZT610R with PCBA P1081294-02 V25 FW Kods: P1083320-134
Zebra - 203 dpi - printhead - for Zebra ZT620Kods: P1083320-015
Kit Cutter Upgrade ZT620, ZT620R with PCBA P1081294-02 V25 FW Kods: P1083320-135
Zebra - 300 dpi - printhead - for Zebra ZT620Kods: P1083320-016
Zebra - Printhead 600dpiKods: P1083320-012
Kit Packaging Material (Qty of 8) ZT610, ZT610RKods: P1083320-116
Kit, Main Logic Board, ZT600 Series EMEA ONLY Kods: P1083320-138
KIT MAIN LOGIC BOARD ZT600Kods: P1083320-124
Zebra - Printer RFID upgrade kit - for Zebra ZT610Kods: P1083320-041C
Zebra - RFID module kit - for Zebra ZT620Kods: P1083320-102C
Kit, RFID Module, USA and Canada, ZE511, ZE521, RH LHKods: P1112750-046A
