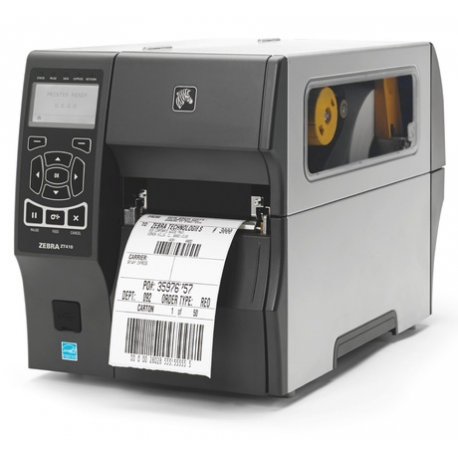

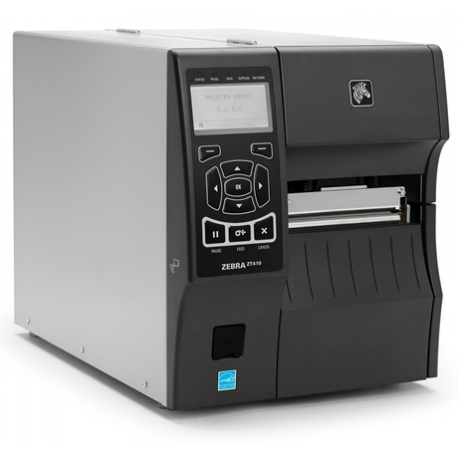

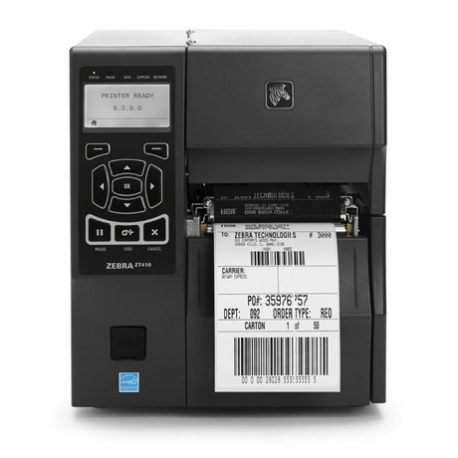

Zebra ZT400 Series ZT421 - Label printer - direct thermal / thermal transfer - Roll (17.8 cm) - 203 dpi - up to 305 mm / sec - USB 2.0, LAN, serial, USB host, Wi-Fi(ac), Bluetooth 4.1
Zebra ZT400 Series ZT421 - Label printer - direct thermal / thermal transfer - Roll (17.8 cm) - 203 dpi - up to 305 mm / sec - USB 2.0, LAN, serial, USB host, Wi-Fi(ac), Bluetooth 4.1
Ražotājs
•ZEBRA
Ražotāja kods
•ZT42162-T0EC000Z
Artikuls
•1674124
Intrastat
•84433210
Pakas svars
•20.8 kg
Ražotāja cena
•4296.36 €
Label printer, midrange printer, thermal transfer, 8 dots/mm (203 dpi), media width (max.): 178 mm, print width (max.): 168 mm, roll diameter (max.): 203mm, speed (max.): 305 mm/s, USB (2x), RS232, Bluetooth, Ethernet, Wi-Fi (802.11ac), emulation: EPL, ZPL, ZPLII, RAM: 256 MB, Flash: 512 MB, display (touch screen, colour), real time clock, incl.: power cable (EU, UK), order separately: interface cable
Printer Type
Label printer - direct thermal / thermal transfer - monochrome
Localisation
United Kingdom, Europe
Print Speed
Up to 305 mm/sec - max speed
Built-in Devices
4.3 inch LCD touch screen
Connectivity Technology
Wireless
Interface
USB 2.0, LAN, serial, USB host, Wi-Fi(ac), Bluetooth 4.1
Max Resolution (B&W)
203 dpi
Language Simulation
ZPL, ZPL II, EZPL, ZBI 2.0
Features
Realtime clock, transmissive media sensor, reflective media sensor
Fonts Included
16 x bitmapped ¦ 2 x scalable
Barcodes
Code 93, Industrial 2 of 5, Code 39, Code 49, CODABLOCK, ISBT 128, QR code, MaxiCode, Aztec code, LOGMARS, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, MicroPDF417, Codabar, Code 11, Interleaved 2 of 5, Postnet, PDF417, MSI-Plessey, Data Matrix, PLANET, TLC39, Plessey, Code 128B, Code 128C, Code 128A, Standard 2 of 5
RAM Installed (Max)
256 MB
Flash Memory
512 MB
Media Type
Continuous labels, die cut labels
Max Media Size
Roll (17.8 cm)
Min Media Size (Custom)
51 mm
Max Media Size (Custom)
178 mm
Media Sizes
Roll (5.1 - 17.8 cm)
Max Printing Width
168 mm
Max Printing Length
2591 mm
Media Thickness Range
0.058 mm - 0.25 mm
Roll Maximum Outer Diameter
203 mm
Roll Core Diameter
76 mm
Media Feeders
1 x manual - 1 roll - Roll (17.8 cm)
Networking
Print server
Connections
1 x RS-232 ¦ 1 x USB 2.0 - 4 pin USB Type B ¦ 1 x LAN - RJ-45 ¦ 2 x USB host - 4 pin USB Type A
Compliant Standards
FCC Class B certified, VCCI, C-Tick, BSMI, EN 61000-3-2, ICES-003, NOM, SABS, IEC 60950, EN 61000-3-3, EN55024, EN55022 Class B, CCC, KCC, S Mark, cTUVus, MFI
Power Device
Power supply - internal
Voltage Required
AC 120/230 V
Frequency Required
50/60 Hz
Power Factor Correction
Yes
ENERGY STAR
Yes
Min Operating Temperature
5 °C
Max Operating Temperature
40 °C
Humidity Range Operating
20 - 85% (non-condensing)
Width
33.6 cm
Depth
49.5 cm
Height
32.4 cm
Weight
18.14 kg
