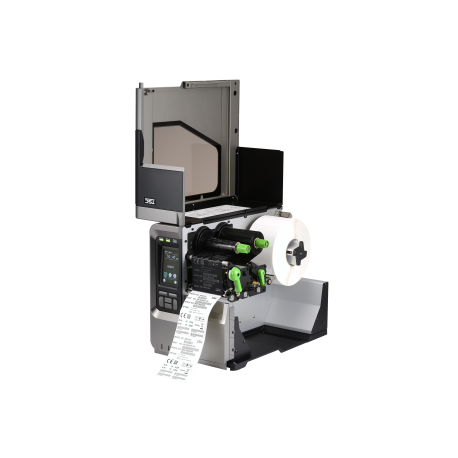

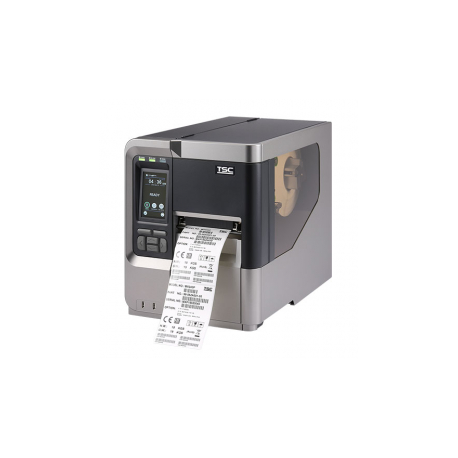

TSC MX341P - Label printer - direct thermal / thermal transfer - Roll (11.4 cm) - 300 dpi - up to 356 mm / sec - USB 2.0, LAN, USB host, RS232
TSC MX341P - Label printer - direct thermal / thermal transfer - Roll (11.4 cm) - 300 dpi - up to 356 mm / sec - USB 2.0, LAN, USB host, RS232
Ražotājs
•TSC
Ražotāja kods
•MX341P-A001-0002
Artikuls
•1771622
Intrastat
•84433210
Pakas svars
•20.964 kg
Ražotāja cena
•3040.00 €
Kopā pieejams (gab.)
•17
Tuvākā piegāde
•23.03.2026
Label printer, thermal transfer, resolution: 12 dots/mm (300 dpi), media width (max.): 114 mm, print width (max.): 104 mm, roll diameter (max.): 203mm, speed (max.): 356 mm/s, USB (type B), USB Host, RS232, Ethernet, Micro SD-Slot, RAM: 512 MB, Flash: 512 MB, display (touch screen), real time clock, Black Mark Sensor, Gap Sensor, incl.: cable (USB), power supply unit, power cable (EU), QSG
Printer Type
Label printer - direct thermal / thermal transfer - monochrome
Print Speed
Up to 356 mm/sec - max speed
Built-in Devices
4.3 inch LCD touch screen
Connectivity Technology
Wired
Interface
USB 2.0, LAN, USB host, RS232
Max Resolution (B&W)
300 dpi
Language Simulation
TSPL-EZD
Fonts
CG Triumvirate Bold Condensed
Styles & Effects
Rotated text
Features
Realtime clock, ribbon end sensor, ribbon encode sensor, open head sensor, transmissive/gap sensor, reflective/black mark sensor, media capacity sensor
Display Resolution
480 x 272
Barcodes
Code 93, Code 39, GS1 DataBar, QR code, MaxiCode, Aztec code, UPC-A, UPC-E, Codabar, Code 11, Interleaved 2 of 5, Postnet, PDF417, Data Matrix, China Post, Plessey, Code 128B, Code 128C, Code 128A, EAN-128, EAN-8, EAN-13, MSI, RSS, UPC-2, UPC-5
Processor
536 MHz
RAM Installed (Max)
512 MB
Technology / Form Factor
SDRAM
Flash Memory
512 MB
Type
Card reader
Supported Flash Memory Cards
microSD
Media Type
Continuous labels, die cut labels, fanfold labels, black mark labels
Max Media Size
Roll (11.4 cm)
Min Media Size (Custom)
20 mm x 3 mm
Max Media Size (Custom)
114 mm x 11430 mm
Media Sizes
Roll (2 - 11.4 cm)
Max Printing Width
104 mm
Max Printing Length
11430 mm
Media Thickness Range
0.076 mm - 0.305 mm
Roll Maximum Outer Diameter
203.2 mm
Roll Core Diameter
76.2 mm
Media Feeders
1 x manual - Roll (11.4 cm)
Networking
Print server
Connections
1 x RS-232 ¦ 1 x USB 2.0 - 4 pin USB Type B ¦ 1 x LAN - RJ-45 ¦ 2 x USB host - 4 pin USB Type A
Cables Included
1 x USB cable ¦ Power cable (EU)
Features
Clear window
Compliant Standards
FCC Class B certified, UL, TUV, cUL, CB, C-Tick Class B, CCC, RoHS, WEEE, EAC, BIS
Power Device
Power supply - internal
Voltage Required
AC 100-240 V
Frequency Required
50/60 Hz
ENERGY STAR
Yes
Service & Support
Limited warranty - 2 years ¦ Limited warranty - printhead - 1 year / 25 km ¦ Limited warranty - platen - 1 year / 50 km
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
25 - 85% (non-condensing)
Width
30 cm
Depth
51 cm
Height
39.3 cm
Weight
18 kg
