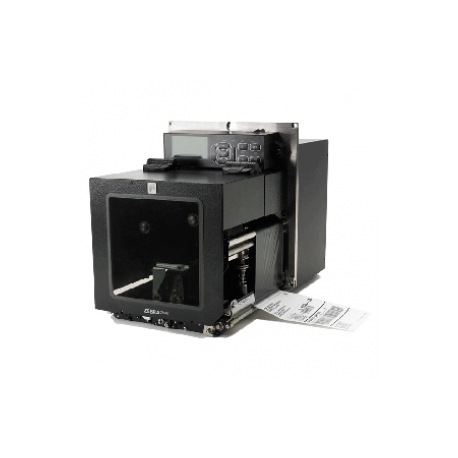

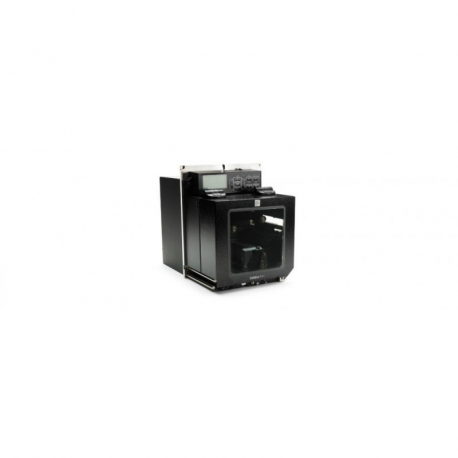

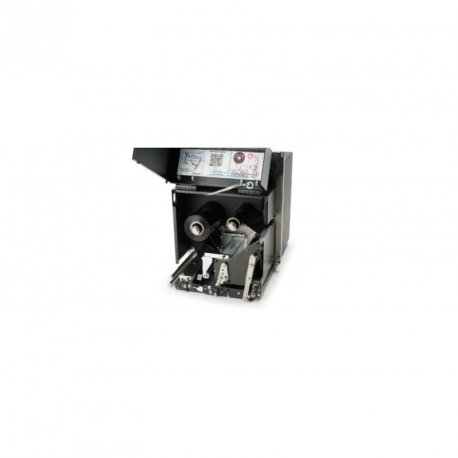

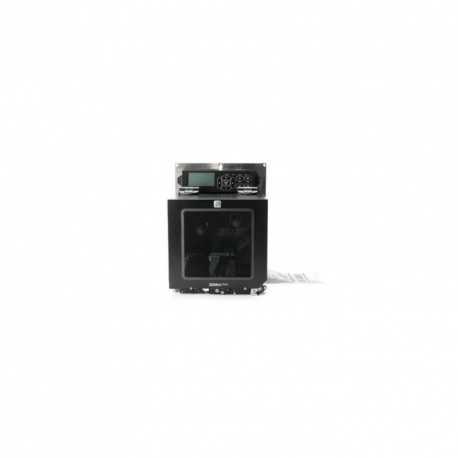

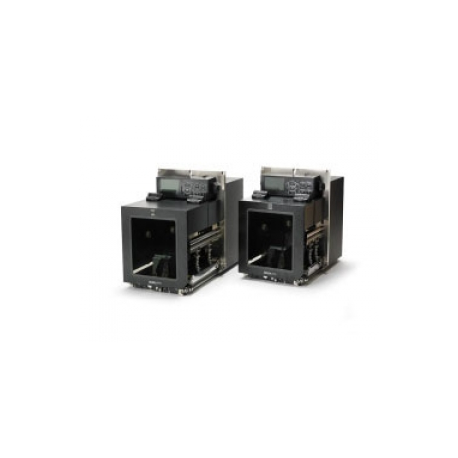

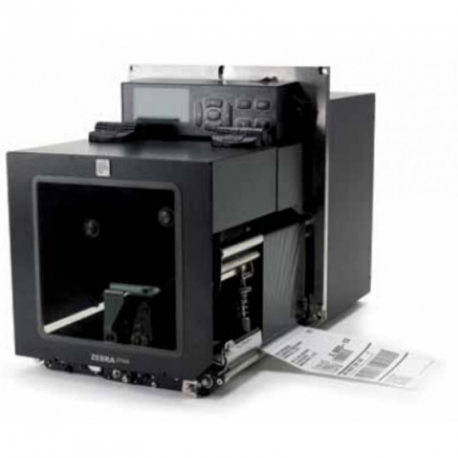

Zebra ZE500-6 - Label printer - direct thermal / thermal transfer - Roll (18 cm) - 203 dpi - up to 305 mm / sec - parallel, USB, LAN, serial
Zebra ZE500-6 - Label printer - direct thermal / thermal transfer - Roll (18 cm) - 203 dpi - up to 305 mm / sec - parallel, USB, LAN, serial
Ražotājs
•ZEBRA
Ražotāja kods
•ZE50062-L0E0000Z
Artikuls
•460928
Intrastat
•84433210
Pakas svars
•17.3 kg
Printer Type
Label printer - direct thermal / thermal transfer - monochrome
Print Speed
Up to 305 mm/sec - B/W - 203 dpi
Built-in Devices
Status LCD, Applicator Interface Port
Connectivity Technology
Wired
Interface
Parallel, USB, LAN, serial
Max Resolution (B&W)
203 dpi
Language Simulation
ZPL, ZPL II
Features
Realtime clock
Barcodes
Code 93, Industrial 2 of 5, Code 39, Code 49, CODABLOCK, ISBT 128, QR code, MaxiCode, Aztec code, LOGMARS, EAN/JAN-8, EAN/JAN-13, UPC-A, MicroPDF417, Codabar, Code 128, Code 11, Code 2 of 5, Interleaved 2 of 5, Postnet, PDF417, MSI-Plessey, Data Matrix, PLANET, TLC39
Printer Features
Left-hand orientation
Processor
133 MHz
RAM Installed (Max)
16 MB
Technology / Form Factor
SDRAM
Flash Memory
64 MB
Media Type
Continuous forms, die cut labels
Max Media Size
Roll (18 cm)
Min Media Size (Custom)
76 mm
Max Media Size (Custom)
180 mm x 991 mm
Media Sizes
Roll (18 cm)
Max Printing Width
168 mm
Max Printing Length
3810 mm
Media Thickness Range
0.076 mm - 0.305 mm
Roll Maximum Outer Diameter
101.6 mm
Roll Core Diameter
25.4 mm
Media Feeders
1 x manual - 1 roll - Roll (18 cm)
Networking
Print server
Network Controller Name
ZebraNet 10/100 Print Server
Connections
1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x LAN - RJ-45 ¦ 1 x USB 2.0 - 4 pin USB Type B ¦ 1 x parallel
Compatible with Windows 7
"Compatible with Windows 7" software and devices carry Microsoft’s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7.
Compliant Standards
FCC Class A certified, VCCI, EN 60950, ICES-003, EN55022 Class A, UL 60950 Third Edition, CCC, FCC Part 15, EN 61000-6-2, CSA C22.2 No. 60950 Third Edition
Power Device
Power supply - internal
Voltage Required
AC 120/230 V
Frequency Required
50/60 Hz
Power Factor Correction
Yes
Software Included
Drivers & Utilities
OS Required
Microsoft Windows Server 2003, Microsoft Windows Vista / XP / 7, Microsoft Windows Server 2008
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
20 - 95% (non-condensing)
Width
24.5 cm
Depth
43.8 cm
Height
30 cm
Weight
17.3 kg
Zebra - Dispenser front bezelKods: P1079903-022
Zebra - Printer toggle kit - for Zebra ZE500-4, ZE500-6Kods: P1046696-011
Zebra - Printer platen roller - for Zebra ZE500-6Kods: P1046696-073
Zebra - Printer roller kit - for Zebra ZE500-6Kods: P1046696-057
Zebra - Hardware mounting kit - for Zebra ZE500, ZE500-4, ZE500-6Kods: P1046696-045
Zebra - Spare parts kit - for Zebra ZE500-6Kods: P1046696-060
Zebra - Printer interface kit - for Zebra ZE500-4, ZE500-6Kods: P1046696-018
Zebra - Printhead conversion kit - for Zebra ZE500-4Kods: P1046696-004
Zebra - Power supply (internal) - for Zebra ZE500-4, ZE500-6Kods: P1046696-021
Zebra - Convert 203 to 300dpi RH and LHKods: P1046696-003
Zebra - Printhead conversion kit - for Zebra ZE500-6Kods: P1046696-006
