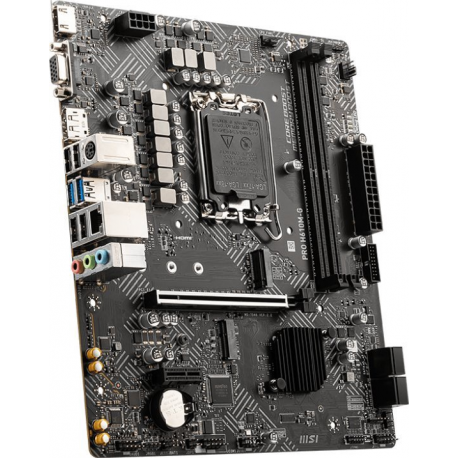

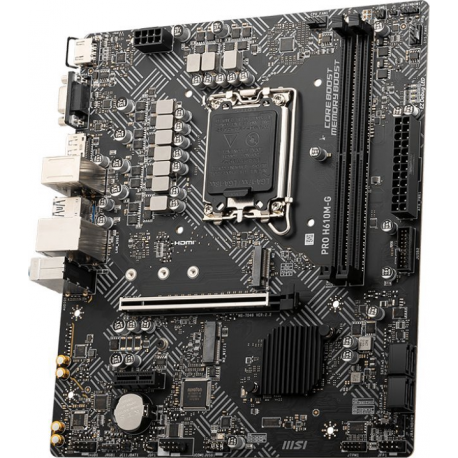

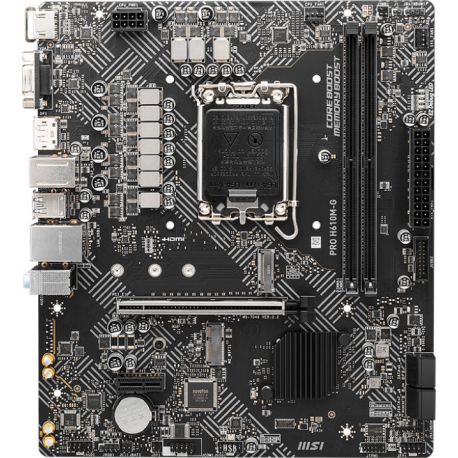

MSI PRO H610M-G - Motherboard - micro ATX - LGA1700 Socket - H610 Chipset - USB 3.2 Gen 1 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
MSI PRO H610M-G - Motherboard - micro ATX - LGA1700 Socket - H610 Chipset - USB 3.2 Gen 1 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Ražotājs
•MSI
Ražotāja kods
•7D46-075R
Artikuls
•3369685
Intrastat
•84717020
Pakas svars
•1.64 kg
Kopā pieejams (gab.)
•100
Tuvākā piegāde
•30.03.2026
Product Type
Motherboard - micro ATX
Chipset Type
Intel H610 / Nuvoton NCT6687
Processor Socket
LGA1700 Socket
Max Processors Qty
1
Compatible Processors
(supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron)
Max Size
96 GB
Technology
DDR5
Supported RAM Integrity Check
Non-ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 3.0
Type
HD Audio (8-channel)
Audio Codec
Realtek ALC897
Compliant Standards
High Definition Audio
Network Controller
Intel I219V
Network Interfaces
Gigabit Ethernet
Expansion Slots
1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x1 ¦ 1 x M.2 socket (Key E) ¦ 1 x M.2 socket (2242/2260/2280 M.2 Key M slot)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 3.0 -connectors: 1 x M.2
Interfaces

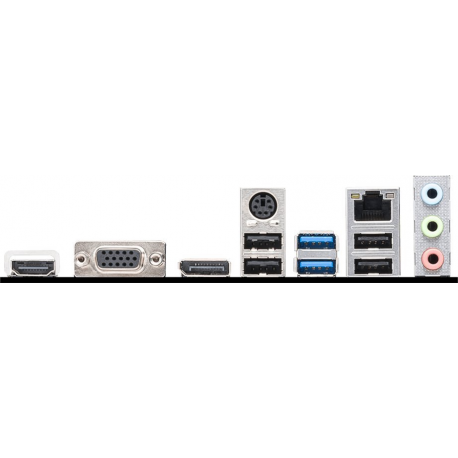

1 x HDMI ¦ 1 x VGA ¦ 1 x DisplayPort ¦ 2 x USB 3.2 Gen 1 ¦ 4 x USB 2.0 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x PS/2 keyboard / mouse ¦ 1 x LAN (Gigabit Ethernet)
Internal Interfaces
2 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x serial - header ¦ 1 x SPI - header
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
BIOS Type
AMI
BIOS Features
UEFI BIOS, MSI ClickBIOS 5, ACPI 6.4 support, SMBIOS 3.5 support
Hardware Features
MSI Audio Boost, MSI Mystic Light, MSI Steel Armor, MSI Core Boost, MSI Memory Boost, Frozr AI Cooling, lightning gen4 solution, M.2 EZ Latch, EZ Debug LED
Included Accessories
Case badge, IO shield, M.2 clip
Cables Included
2 x Serial ATA cable
Software Included
Drivers & Utilities, Norton Internet Security, Intel Extreme Tuning Utility, MSI CPU-Z, MSI Center
Compliant Standards
DisplayPort 1.4
Width
24.1 cm
Depth
21.1 cm
