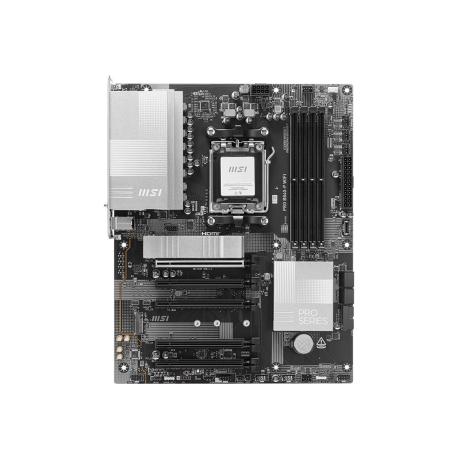

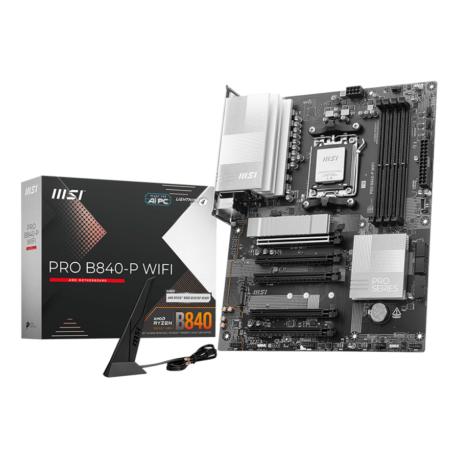

MSI PRO B840-P WIFI - Motherboard - ATX - Socket AM5 - AMD B840 Chipset - USB 3.2 Gen 2, USB-C 3.2 Gen 1, USB 3.2 Gen 1, USB-C 3.2 Gen2 - 2.5 Gigabit LAN, Wi-Fi 7, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
MSI PRO B840-P WIFI - Motherboard - ATX - Socket AM5 - AMD B840 Chipset - USB 3.2 Gen 2, USB-C 3.2 Gen 1, USB 3.2 Gen 1, USB-C 3.2 Gen2 - 2.5 Gigabit LAN, Wi-Fi 7, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
Ražotājs
•MSI
Ražotāja kods
•PRO B840-P WIFI
Artikuls
•4193698
Intrastat
•84717020
Pakas svars
•2.24 kg
Kopā pieejams (gab.)
•4
Tuvākā piegāde
•16.03.2026
Product Type
Motherboard - ATX
Chipset Type
AMD B840
Processor Socket
Socket AM5
Max Processors Qty
1
Compatible Processors
Ryzen (supports Ryzen 7000/8000/9000 Series)
Max Size
256 GB
Technology
DDR5
Bus Clock
4000 MHz (O.C.), 3200 MHz (O.C.), 2800 MHz, 2400 MHz
Supported RAM Integrity Check
On-die ECC, non-ECC, ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, AMD EXPO technology
Type
HD Audio (8-channel)
Compliant Standards
High Definition Audio
Network Controller
Realtek RTL8125D
Network Interfaces
2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4
Expansion Slots
1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 3 x PCIe 3.0 x16 (x1 mode) ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 1 x M.2 socket (2260/2280 M.2 Key M slot) ¦ 1 x M.2 socket (2260/2280/22110 M.2 Key M slot)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -connectors: 2 x M.2
Interfaces
1 x LAN (2.5Gigabit Ethernet) ¦ 1 x HDMI ¦ 1 x USB-C 3.2 Gen 2 ¦ 1 x USB 3.2 Gen 2 ¦ 2 x USB 3.2 Gen 1 ¦ 4 x USB 2.0 ¦ 2 x aerial ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack
Internal Interfaces
USB-C 3.2 Gen 1 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 2 x USB 2.0 - header ¦ 1 x audio - header ¦ 1 x serial - header ¦ 1 x SPI - header
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
BIOS Type
AMI
BIOS Features
MSI ClickBIOS 5
Hardware Features
EZ Debug LED, M.2 Shield FROZR, EZ PCie Clip II, lightning gen4 solution, Extended Heatsink Design, pre-mounted I/O shield, 7+2+1 Phase Power Design, MSI Core Boost
Included Accessories
EZ Wi-Fi antenna, EZ M.2 clip 2 remover, 2 x EZ M.2 clip II
Cables Included
1 x Serial ATA cable
Width
30.48 cm
Depth
24.384 cm
