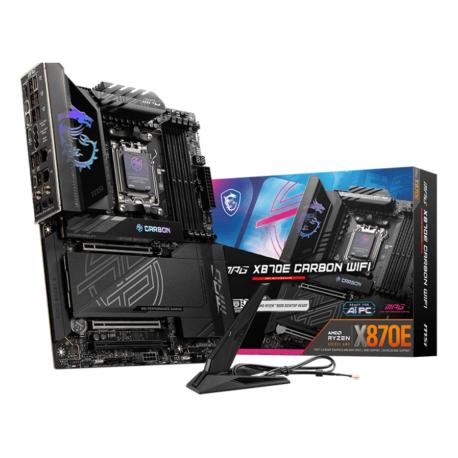

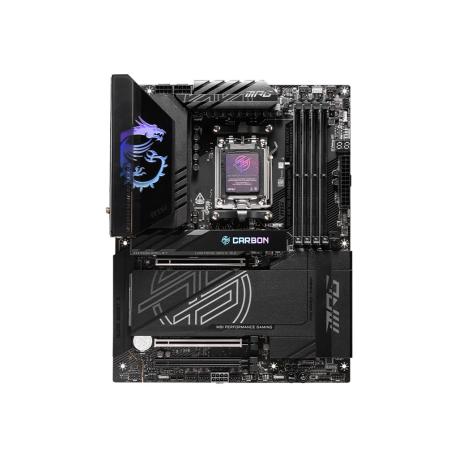

MSI MPG X870E CARBON WIFI - Motherboard - ATX - Socket AM5 - AMD X870E Chipset - USB 3.2 Gen 2, USB4, USB-C 3.2 Gen 2x2, USB 3.2 Gen 1 - 2.5 Gigabit LAN, 5 Gigabit Ethernet, Wi-Fi 7 - onboard graphics (CPU required) - HD Audio (8-channel)
MSI MPG X870E CARBON WIFI - Motherboard - ATX - Socket AM5 - AMD X870E Chipset - USB 3.2 Gen 2, USB4, USB-C 3.2 Gen 2x2, USB 3.2 Gen 1 - 2.5 Gigabit LAN, 5 Gigabit Ethernet, Wi-Fi 7 - onboard graphics (CPU required) - HD Audio (8-channel)
Ražotājs
•MSI
Ražotāja kods
•MPG X870E CARBON WIFI
Artikuls
•4148272
Intrastat
•84717020
Kopā pieejams (gab.)
•33
Tuvākā piegāde
•16.03.2026
Product Type
Motherboard - ATX
Chipset Type
AMD X870E / Nuvoton NCT6687-R
Processor Socket
Socket AM5
Max Processors Qty
1
Compatible Processors
(supports Ryzen 7000/8000/9000 Series)
Max Size
256 GB
Technology
DDR5
Bus Clock
2400 MHz, 2500 MHz, 2600 MHz, 2700 MHz, 2800 MHz (O.C.), 2900 MHz (O.C.), 3000 MHz (O.C.), 3100 MHz (O.C.), 3200 MHz (O.C.), 3300 MHz (O.C.), 3400 MHz (O.C.), 3500 MHz (O.C.), 3600 MHz (O.C.), 3700 MHz (O.C.), 3800 MHz (O.C.), 3900 MHz (O.C.), 4000 MHz (O.C.), 4100 Mhz (O.C), 4200 MHz (O.C.)
Supported RAM Integrity Check
Non-ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, AMD EXPO technology
Type
HD Audio (8-channel)
Audio Codec
Realtek ALC4080
Compliant Standards
High Definition Audio
Network Controller
Realtek RTL8125 / Realtek RTL8126
Network Interfaces
2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7)
Expansion Slots
1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 5.0 x4 ¦ 1 x PCIe 4.0 x4 ¦ 3 x M.2 socket (2260/2280 M.2 Key M slot) ¦ 1 x M.2 socket (2280/22110 M.2 Key M slot) ¦ 1 x M.2 socket (Key E)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 5.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10
Interfaces
1 x HDMI ¦ 9 x USB 3.2 Gen 2 ¦ 2 x USB4 ¦ 2 x USB-C 3.2 Gen 2 ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 2 x aerial ¦ 1 x SPDIF out ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x LAN (5Gigabit Ethernet)
Internal Interfaces
4 x USB 2.0 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 1 x USB-C 3.2 Gen 2x2 - header ¦ 1 x audio - header
Power Connectors
24-pin main power connector, 2 x 8-pin ATX12V connectors, 8-pin PCI Express power connector
BIOS Type
AMI
BIOS Features
UEFI BIOS, ACPI 6.5 support, SMBIOS 3.7 support
Hardware Features
CUDIMM support, MSI Audio Boost 5, MSI AI Engine, MSI Mystic Light, Frozr AI Cooling, Super Charger, MSI LAN Manager, M.2 Shield FROZR, EZ M.2 Clip II, EZ PCIe Release, Clear CMOS Button, flash BIOS button, pre-mounted I/O shield, Smart Button, EZ Debug LED, EZ LED control, Extended Heatsink Design, 2oz Copper PCB, lightning gen5 solution, MSI Core Boost, MSI Memory Boost, 18+2+1 Phase Power Design, 8 Layer PCB, AMD Precision Boost Overdrive (PBO), DIY Friendly Design, Enlarged Chipset Heatsink, EZ Conn-Design, MSI Steel Armor II
Included Accessories
USB drive, ARGB RGB extension cable, 1 to 2 RGB LED extension Y cable, 1 to 3 EZ Conn-Cable, EZ front panel cable, Wi-Fi aerial, cable sticker, EZ M.2 clip, EZ M.2 clip remover
Cables Included
2 x Serial ATA cable
Software Included
Drivers & Utilities, MSI Center, Adobe Creative Cloud (free trial), AIDA64 Extreme - MSI Edition, MSI CPU-Z, MSI App Player, Norton 360, Voicemod
Compliant Standards
DisplayPort 1.4
Width
30.48 cm
Depth
24.384 cm
