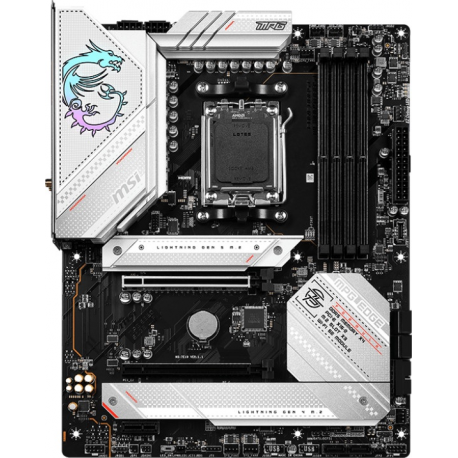

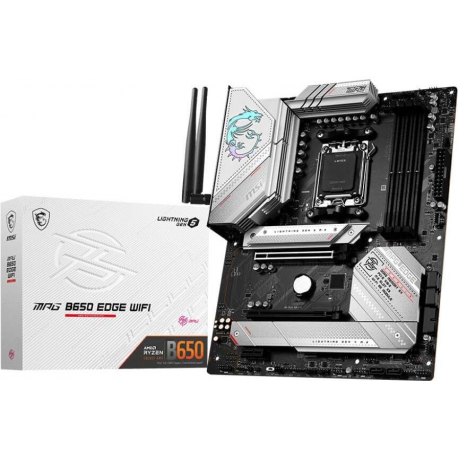

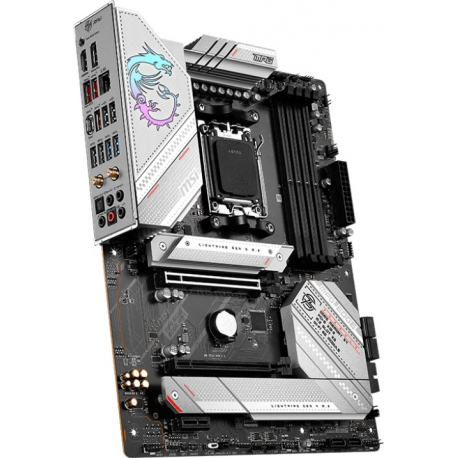

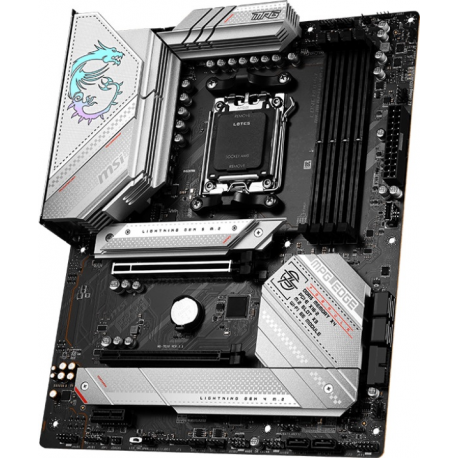

MSI MPG B650 EDGE WIFI - Motherboard - ATX - Socket AM5 - AMD B650 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen 2x2, USB-C 3.2 Gen2 - 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
MSI MPG B650 EDGE WIFI - Motherboard - ATX - Socket AM5 - AMD B650 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen 2x2, USB-C 3.2 Gen2 - 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
Ražotājs
•MSI
Ražotāja kods
•7E10-001R
Artikuls
•3144572
Intrastat
•84717020
Kopā pieejams (gab.)
•9
Tuvākā piegāde
•21.04.2026
Product Type
Motherboard - ATX
Chipset Type
AMD B650
Processor Socket
Socket AM5
Max Processors Qty
1
Compatible Processors
Ryzen (supports Ryzen 7000 Series)
Max Size
128 GB
Technology
DDR5
Bus Clock
5000 MHz (O.C.), 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.)
Supported RAM Integrity Check
Non-ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, AMD EXPO technology
Type
HD Audio (8-channel)
Audio Codec
Realtek ALC4080
Compliant Standards
High Definition Audio
Network Controller
Realtek RTL8125BG
Network Interfaces
2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2
Expansion Slots
1 x PCIe 4.0 x16
1 x PCIe 4.0 x16 (x2 mode)
1 x PCIe 3.0 x1
1 x CPU
4 x DIMM 288-pin
3 x M.2 socket (2260/2280 M.2 Key M slot)
1 x M.2 socket (Key E)
Storage Interfaces
SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10
PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10
PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10

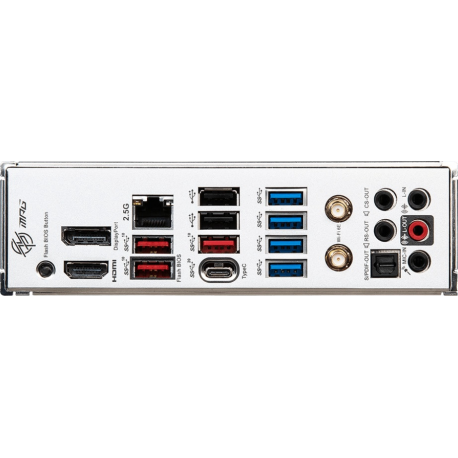

Interfaces
1 x HDMI
DisplayPort
2 x USB 2.0
4 x USB 3.2 Gen 1
3 x USB 3.2 Gen 2
1 x USB-C 3.2 Gen2x2
1 x LAN (2.5Gigabit Ethernet)
1 x audio line-out - mini-jack
1 x audio line-out (rear) - mini-jack
1 x audio line-in - mini-jack
1 x audio line-out (center/subwoofer) - mini-jack
1 x microphone - mini-jack
1 x SPDIF out
2 x aerial
Internal Interfaces
4 x USB 2.0 - header
2 x USB 3.2 Gen 1 - header
1 x USB-C 3.2 Gen 2 - header
1 x audio - header
1 x SPI - header
Power Connectors
24-pin main power connector, 2 x 8-pin ATX12V connectors
Hardware Features
Debug LED, 6 Layer PCB, MSI Mystic Light, MSI Steel Armor, 2oz Copper PCB, M.2 Shield FROZR, Water Pump Header, pre-mounted I/O shield, MSI Core Boost, Extended Heatsink Design, DIY Friendly Design, MSI Audio Boost 5, Surface Mount Technology (SMT), 14+2+1 Phase Power Design, MSI Memory Boost, 80A Smart Power Stage, Enlarged Chipset Heatsink, flash BIOS button
Included Accessories
Wi-Fi aerial, 2 x M.2 clips, cable stickers
Cables Included
2 x Serial ATA cable
Software Included
AIDA64 Extreme (60 days trial), MSI Center
Compliant Standards
WEEE, FCC Part 15 Class B, JIS C 0950, DisplayPort 1.4
Width
30.48 cm
Depth
24.384 cm
