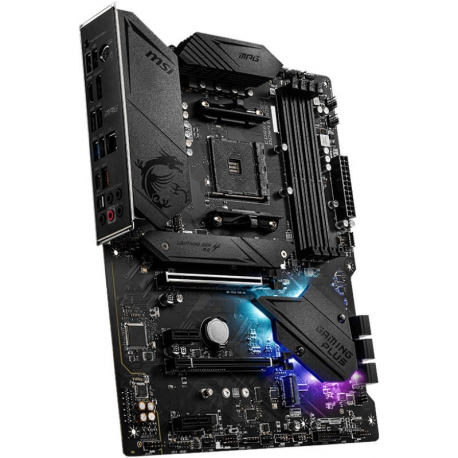

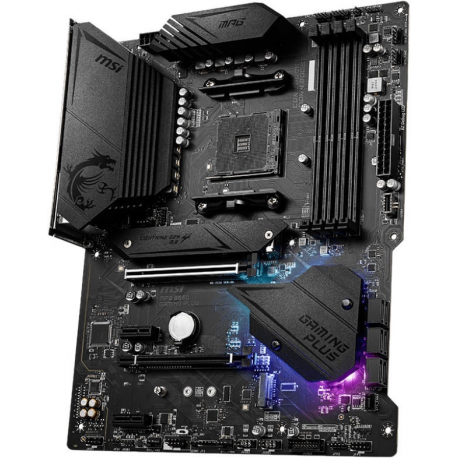

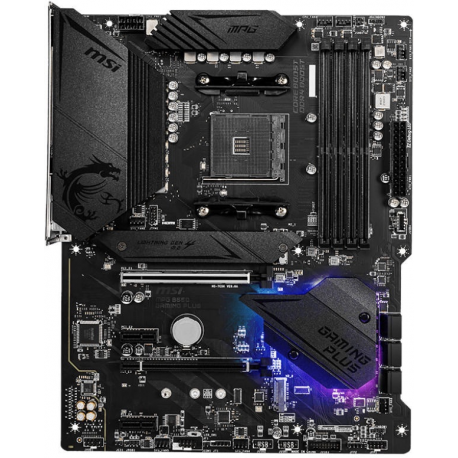

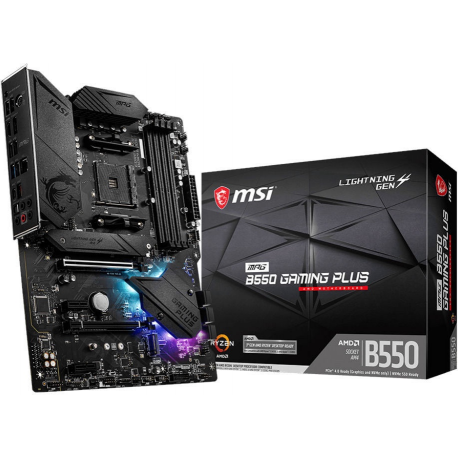

MSI MPG B550 GAMING PLUS - Motherboard - ATX - Socket AM4 - AMD B550 Chipset - USB-C Gen2, USB-C Gen1, USB 3.2 Gen 1, USB 3.2 Gen 2 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
MSI MPG B550 GAMING PLUS - Motherboard - ATX - Socket AM4 - AMD B550 Chipset - USB-C Gen2, USB-C Gen1, USB 3.2 Gen 1, USB 3.2 Gen 2 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Ražotājs
•MSI
Ražotāja kods
•7C56-003R
Artikuls
•3146211
Intrastat
•84717020
Kopā pieejams (gab.)
•87
Tuvākā piegāde
•30.03.2026
Processor manufacturer
AMD
Processor socket
Socket AM4
Compatible processor series
AMD Ryzen 3 3rd Gen, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen 7, 3rd Generation AMD Ryzen 9
Maximum number of SMP processors
1
Supported memory types
DDR4-SDRAM
Number of memory slots
4
Memory slots type
DIMM
Supported memory clock speeds
1866,2133,2400,2667,2800,2933,3000,3066,3200,3466,3600,3733,3866,4000,4133,4266,4400 MHz
Maximum internal memory
128 GB
Memory channels
Dual-channel
ECC
Y
Non-ECC
Y
Unbuffered memory
Y
Supported storage drive interfaces
Serial ATA III
Supported storage drive types
HDD & SSD
RAID levels
0,1,10
Parallel processing technology support
2-Way CrossFireX
Maximum graphics adapter memory
16000 MB
Maximum resolution
4096 x 2160 pixels
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of SATA III connectors
6
Front panel connector
Y
ATX Power connector (24-pin)
Y
CPU fan connector
Y
Number of chassis fan connectors
6
Chassis intrusion connector
Y
TPM connector
Y
12V power connector
Y
RGB LED pin header
Y
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1

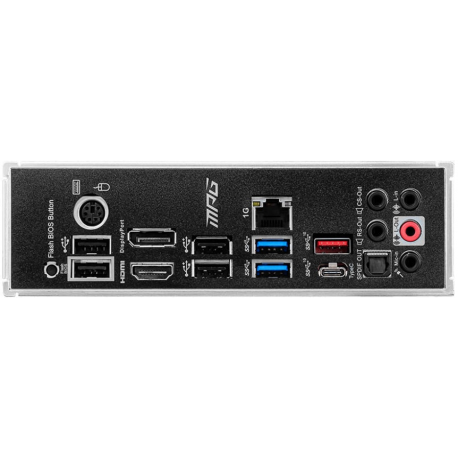

Ethernet LAN (RJ-45) ports
1
PS/2 ports quantity
1
HDMI ports quantity
1
DisplayPorts quantity
1
S/PDIF out port
Y
Digital audio optical out
1
Ethernet LAN
Y
Wi-Fi
N
Ethernet interface type
Gigabit Ethernet
LAN controller
Realtek RTL8111H
Component for
PC
Motherboard form factor
ATX
Motherboard chipset family
AMD
Motherboard chipset
AMD B550
Audio output channels
7.1 channels
Audio chip
Realtek ALC892
PC health monitoring
CPU, Fan, Temperature
Number of mounting holes
9
PCI Express x1 (Gen 3.x) slots
2
PCI Express x16 (Gen 3.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
Number of M.2 (M) slots
2
Clear CMOS jumper
Y
Width
305 mm
Depth
244 mm
Cables included
SATA
Drivers included
Y
