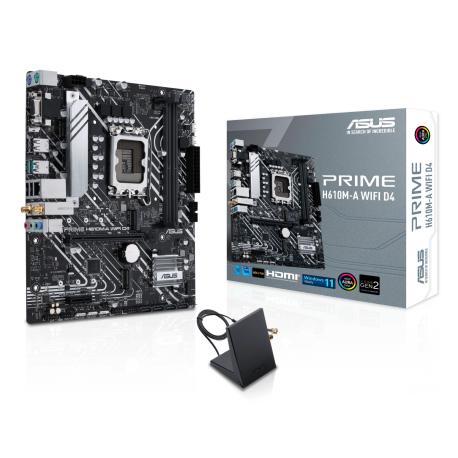

MB H610 S1700 MATX/H610M-A WIFI D4 ASUS
MB H610 S1700 MATX/H610M-A WIFI D4 ASUS
Ražotājs
•ASUS
Ražotāja kods
•H610M-AWIFID4
Artikuls
•1926004
Intrastat
•84717020
Kopā pieejams (gab.)
•50
Tuvākā piegāde
•16.03.2026
Processor manufacturer
Intel
Processor socket
LGA 1700
Compatible processor series
Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
Supported processor sockets
LGA 1700
Supported memory types
DDR4-SDRAM
Number of memory slots
2
Maximum internal memory
64 GB
Memory slots type
DIMM
Memory channels
Dual-channel
Non-ECC
Yes
Supported memory clock speeds
2133,2400,2666,2800,2933,3000,3200 MHz
Supported memory clock speed (max)
3200 MHz
Unbuffered memory
Yes
Supported storage drive interfaces
M.2, SATA
Supported storage drive types
HDD & SSD
Parallel processing technology support
Not supported
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of SATA III connectors
4
S/PDIF out connector
Yes
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of chassis fan connectors
2
EPS power connector (8-pin)
Yes
Number of COM connectors
1
TPM connector
Yes
12V power connector
Yes
RGB LED pin header
Yes
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
Ethernet LAN (RJ-45) ports
1
VGA (D-Sub) ports quantity
1
HDMI ports quantity
1
PS/2 ports quantity
2
HDMI version
2.1
DisplayPorts quantity
1
DisplayPort version
1.4
Headphone outputs
1
Microphone in
Yes
Wi-Fi
Yes
Ethernet LAN
Yes
Ethernet interface type
Gigabit Ethernet
Top Wi-Fi standard
Wi-Fi 5 (802.11ac)
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth
Yes
Bluetooth version
5.0
Component for
PC
Motherboard form factor
micro ATX
Motherboard chipset family
Intel
Motherboard chipset
Intel H610
Audio output channels
7.1 channels
Windows operating systems supported
Windows 10 x64, Windows 11 x64
PCI Express x1 (Gen 3.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
Number of M.2 (M) slots
2
BIOS type
UEFI AMI
BIOS memory size
128 Mbit
Width
244 mm
Depth
211 mm
Cables included
SATA
