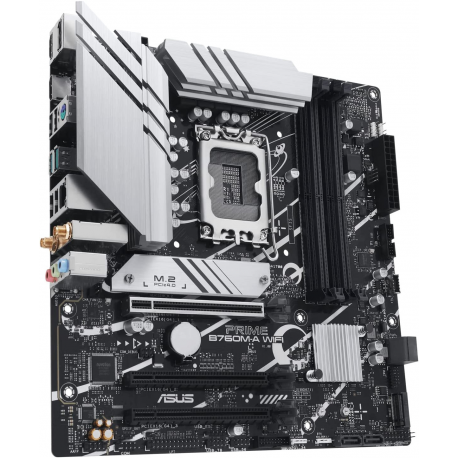

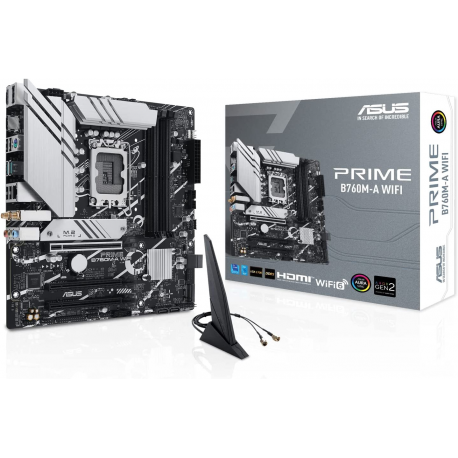

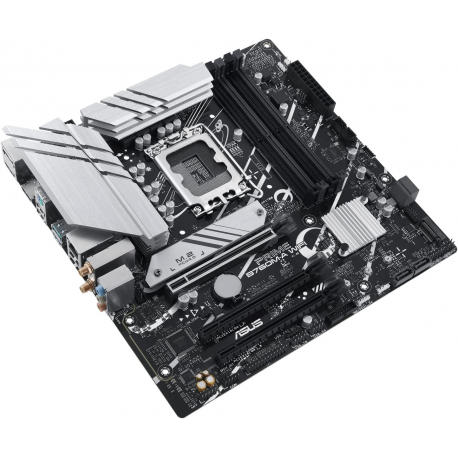

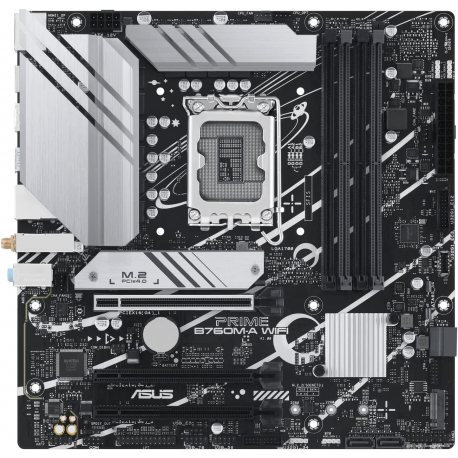

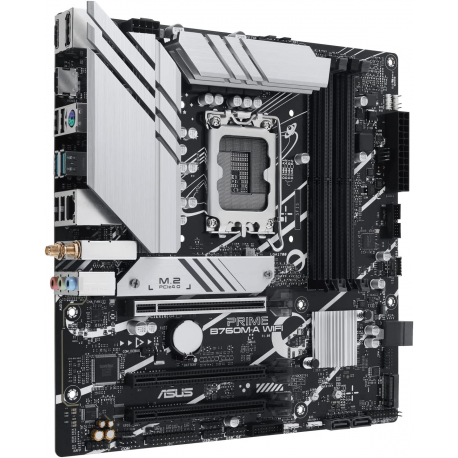

MB B760 S1700 MATX/PRIME B760M-A WIFI ASUS
MB B760 S1700 MATX/PRIME B760M-A WIFI ASUS
Ražotājs
•ASUS
Ražotāja kods
•PRIMEB760M-AWIFI
Artikuls
•3151514
Intrastat
•84717020
Pakas svars
•1.4 kg
Kopā pieejams (gab.)
•21
Tuvākā piegāde
•16.03.2026
Processor manufacturer
Intel
Compatible processor series
Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Celeron®
Supported processor sockets
LGA 1700
Processor socket
LGA 1700
Parallel processing technology support
Not supported
Audio output channels
7.1 channels
Windows operating systems supported
Windows 11, Windows 10 x64
Motherboard form factor
micro ATX
Motherboard chipset family
Intel
Motherboard chipset
Intel B760
Supported memory clock speed (max)
5333 MHz
Memory slots type
DIMM
Number of memory slots
4
Memory channels
Dual-channel
Supported memory types
DDR4-SDRAM
Supported memory clock speeds
4600, 3400, 3000, 5333 MHz, 3466, 4000, 4800, 2133, 2933, 3600 MHz, 2400, 2800, 5066, 3333, 3200, 2666, 4266, 3733, 4400 MHz, 5000
Maximum internal memory
128 GB
Unbuffered memory
Yes
ECC сompatibility
Non-ECC
Width
244 mm
Depth
244 mm
Wi-Fi standards
802.11g, 802.11b, Wi-Fi 5 (802.11ac), 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 4 (802.11n)
Wi-Fi
Yes
Ethernet LAN
Yes
Bluetooth version
5.2
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
Ethernet interface type
2.5 Gigabit Ethernet
Bluetooth
Yes
S/PDIF out connector
Yes
ATX Power connector (24-pin)
Yes
EPS power connector (8-pin)
Yes
CPU fan connector
Yes
12V power connector
Yes
Front panel audio connector
Yes
Number of chassis fan connectors
2
Number of SATA III connectors
4
Number of COM connectors
1
RGB LED pin header
Yes
USB 2.0 connectors
3
USB 3.2 Gen 1 (3.1 Gen 1) connectors
3
TPM connector
Yes
BIOS type
UEFI AMI
Clear CMOS button
Yes
Cables included
SATA
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA III
RAID levels
10, 0, 1, 5
RAID support
Yes
Number of storage drives supported
6
Line-in
Yes
HDMI version
2.1
DisplayPort version
1.4
HDMI ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
PS/2 ports quantity
1
Headphone outputs
3
Ethernet LAN (RJ-45) ports
1
DisplayPorts quantity
1
Microphone in
Yes
USB 2.0 ports quantity
4
PCI Express x16 (Gen 4.x) slots
3
Number of M.2 (M) slots
2
Warnings
Avoid direct contact with electronics to prevent electrostatic damage., Before starting any maintenance or installation, disconnect the product from the power supply., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.
