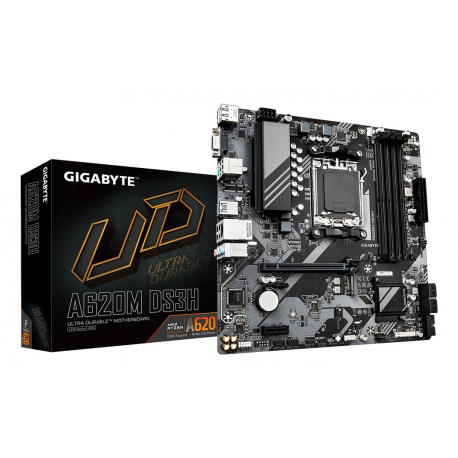

Mainboard|GIGABYTE|AMD A620|Socket AM5|micro ATX|RAM DDR5-SDRAM|4xSlots|1xPCI Express x1 slots|1xPCI Express x16 slots|1xNumber
Mainboard|GIGABYTE|AMD A620|Socket AM5|micro ATX|RAM DDR5-SDRAM|4xSlots|1xPCI Express x1 slots|1xPCI Express x16 slots|1xNumber
Ražotājs
•GIGABYTE
Ražotāja kods
•A620M DS3H 2.0
Artikuls
•4484871
Intrastat
•84717020
Pakas svars
•1.067 kg
Kopā pieejams (gab.)
•30
Tuvākā piegāde
•16.03.2026
Summary
GIGABYTE A620M DS3H Motherboard - Supports AMD Ryzen 8000 CPUs, 5+2+2 Phases Digital VRM, up to 7600MHz DDR5 (OC), 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. USB connector type: USB Type-A, USB Type-C
Vendor Homepage
https://www.gigabyte.com
Category Code
MBA
CnCode
84733020
Unit Box Height
0.265
Unit Box Length
0.27
Unit Box Width
0.055
Audio output channels
7.1 channels
Component for
PC
Motherboard chipset
AMD A620
Motherboard chipset family
AMD
Motherboard form factor
micro ATX
PC health monitoring
Fan/Temperature/Voltage/Water cooling
Product colour
Brown
Windows operating systems supported
Windows 10 x64/Windows 11 x64
Compatible processor series
AMD Ryzen 7000 Series
Maximum internal memory supported by processor
192 GB
Processor manufacturer
AMD
Processor socket
Socket AM5
Supported processor sockets
Socket AM5
ECC сompatibility
Non-ECC
Maximum internal memory
192 GB
Memory channels
Dual-channel
Memory slots type
DIMM
Number of memory slots
4
Supported memory clock speed (max)
7600 MHz
Supported memory clock speeds
4800/5200/5600/6000/6200/6400/6800/7000/7200/7600 MHz
Supported memory module capacities
12GB/16GB/1GB/2GB/32GB/48GB/4GB/8GB
Supported memory types
DDR5-SDRAM
Unbuffered memory
Yes
Number of HDDs supported
1
Number of storage drives supported
4
RAID levels
0/1/10
RAID support
Yes
Supported storage drive interfaces
M.2, SATA III
Supported storage drive types
HDD & SSD
DirectX version
12.0
HDCP
Yes
Maximum resolution
4096 x 2160 pixels
Parallel processing technology support
Not supported
12V power connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Front panel audio connector
Yes
Front panel connector
Yes
Number of SATA III connectors
4
RGB LED pin header
Yes
Total number of SATA connectors
4
TPM connector
Yes
USB 2.0 connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
DisplayPort version
1.4
DisplayPorts quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI ports quantity
1
HDMI version
2.1
Headphone outputs
3
Microphone in
Yes
PS/2 ports quantity
1
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
USB connector type
USB Type-A/USB Type-C
VGA (D-Sub) ports quantity
1
Ethernet interface type
Gigabit Ethernet
Ethernet LAN
Yes
Wi-Fi
No
Number of M.2 (M) slots
1
PCI Express x1 slots
1
PCI Express x16 slots
1
ACPI version
5.0
BIOS memory size
256 Mbit
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Battery weight
3 g
Country of origin
China
Lithium weight per battery
0.07 g
Number of battery cells
1
Package depth
265 mm
Package height
54 mm
Package weight
1067 g
Package width
265 mm
Products per shipping (inner) case
1 pc(s)
Depth
244 mm
Height
35 mm
Width
244 mm
Batteries included
Yes
Bundled software
Norton® Internet Security (OEM version) LAN bandwidth management software
Cables included
SATA
Warranty period
3 year(s)
Units per Pallet
0
Units per Shipping Box
10
Unit Calculated Volume
0.00471 cubm
Unit Calculated Weight
1.02 kg
