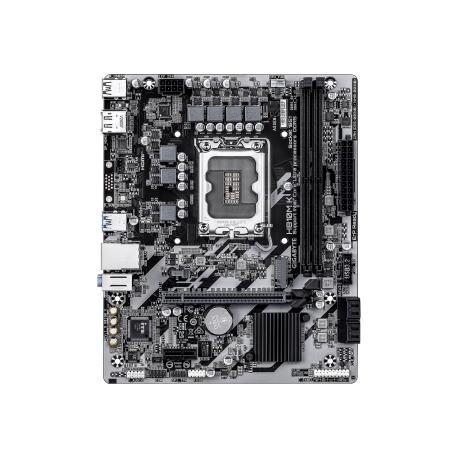

Gigabyte H810M K - Motherboard - micro ATX - LGA1851 Socket - H810 Chipset - USB 3.2 Gen 1 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Gigabyte H810M K - Motherboard - micro ATX - LGA1851 Socket - H810 Chipset - USB 3.2 Gen 1 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Ražotājs
•GIGABYTE
Ražotāja kods
•H810M K
Artikuls
•4390435
Intrastat
•84717020
Kopā pieejams (gab.)
•17
Tuvākā piegāde
•16.03.2026
Product Type
Motherboard - micro ATX
Chipset Type
Intel H810 Express
Processor Socket
LGA1851 Socket
Max Processors Qty
1
Compatible Processors
(supports Intel Core Ultra processors (Series 2))
Max Size
128 GB
Technology
DDR5
Bus Clock
5600 MT/s, 6400 MT/s
Supported RAM Integrity Check
ECC (operate in non-ECC mode), non-ECC
Registered or Buffered
Unbuffered
Features
Intel Extreme Memory Profiles (XMP), dual channel memory architecture, supported ECC modules operate in non-ECC mode
Type
HD Audio (8-channel)
Compliant Standards
High Definition Audio
Network Interfaces
Gigabit Ethernet
Expansion Slots
1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x1 ¦ 1 x M.2 socket (2280 M.2 Key M slot)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 1 x M.2
Interfaces
2 x USB 3.2 Gen 1 ¦ 4 x USB 2.0 ¦ 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack
Internal Interfaces
2 x USB 3.2 Gen 1 - header ¦ 2 x USB 2.0 - header ¦ 1 x audio - header ¦ 1 x SPI - header ¦ 1 x serial - header
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
BIOS Type
AMI
BIOS Features
UEFI BIOS, PnP 1.0a support, DMI 2.7 support, WfM 2.0 support, SMBIOS 2.7 support, ACPI 5.0 support
Hardware Monitoring
Fan control, fan fail warning, fan speed detection, system voltage, temperature detection, water cooling flow rate
Hardware Features
3+1+2 Phase Power Design, chipset heatsink, High-end Audio Capacitors, DIY Friendly Design, PCIe EZ Latch, GIGABYTE Smart Fan 6, Ultra Durable, Q-Flash
Software Included
Norton Internet Security (OEM Version), GIGABYTE Control Center, LAN manager
Width
22.6 cm
Depth
18.5 cm
