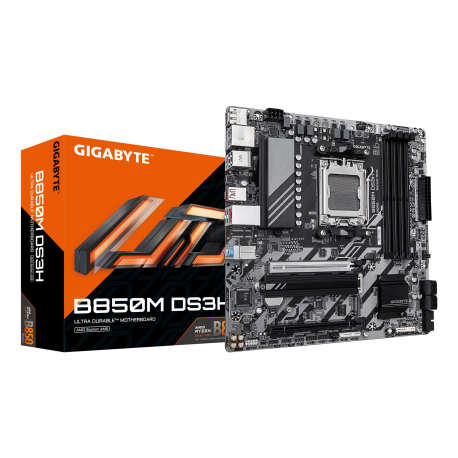

Gigabyte B850M DS3H - Motherboard - micro ATX - Socket AM5 - AMD B850 Chipset - USB-C 3.2 Gen 1, USB 3.2 Gen 2, USB 3.2 Gen 1 - 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Gigabyte B850M DS3H - Motherboard - micro ATX - Socket AM5 - AMD B850 Chipset - USB-C 3.2 Gen 1, USB 3.2 Gen 2, USB 3.2 Gen 1 - 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Ražotājs
•GIGABYTE
Ražotāja kods
•B850M DS3H 1.2
Artikuls
•4484874
Intrastat
•84717020
Pakas svars
•1.337 kg
Kopā pieejams (gab.)
•10
Tuvākā piegāde
•16.03.2026
Product Type
Motherboard - micro ATX
Chipset Type
AMD B850
Processor Socket
Socket AM5
Max Processors Qty
1
Compatible Processors
Ryzen (supports Ryzen 7000/8000/9000 Series)
Max Size
256 GB
Technology
DDR5
Bus Clock
4100 Mhz (O.C), 4000 MHz (O.C.), 3900 MHz (O.C.), 3800 MHz (O.C.), 3600 MHz (O.C.), 3500 MHz (O.C.), 3400 MHz (O.C.), 3333 MHz (O.C.), 3300 MHz (O.C.), 3200 MHz (O.C.), 3100 MHz (O.C.), 3000 MHz (O.C.), 2800 MHz (O.C.), 2600 MHz, 2400 MHz, 2200 MHz
Supported RAM Integrity Check
Non-ECC
Registered or Buffered
Unbuffered
Features
Intel Extreme Memory Profiles (XMP), AMD EXPO technology, dual channel memory architecture
Type
HD Audio (8-channel)
Compliant Standards
High Definition Audio
Network Interfaces
2.5 Gigabit Ethernet
Expansion Slots
1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 3.0 x4 ¦ 2 x M.2 socket (2280/2580/22110/25110 M.2 Key M slot)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
Interfaces
1 x USB-C 3.2 Gen 2 ¦ 1 x USB 3.2 Gen 2 ¦ 4 x USB 2.0 ¦ 2 x USB 3.2 Gen 1 ¦ 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x PS/2 keyboard / mouse ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack
Internal Interfaces
1 x USB-C 3.2 Gen 2 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x audio - header ¦ 1 x SPI - header
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
BIOS Type
AMI
BIOS Features
UEFI BIOS, WfM 2.0 support, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, PnP 1.0a support
Hardware Monitoring
Water cooling flow rate, temperature detection, fan speed detection, fan fail warning, system voltage, fan control
Hardware Features
8+2+2 Phase Power Design, 6 Layer PCB, Server-Grade Low-Loss PCB, 2x Copper PCB, GIGABYTE Smart Fan 6, M.2 EZ Latch, Debug LED, M.2 EZ Latch plus, DIY Friendly Design
Included Accessories
G-Connector, M.2 screw package, rubber pad, Wi-Fi aerial, IO shield
Cables Included
2 x Serial ATA cable
Software Included
Norton Internet Security (OEM Version), GIGABYTE Control Center, LAN manager
Width
24.4 cm
Depth
24.4 cm
