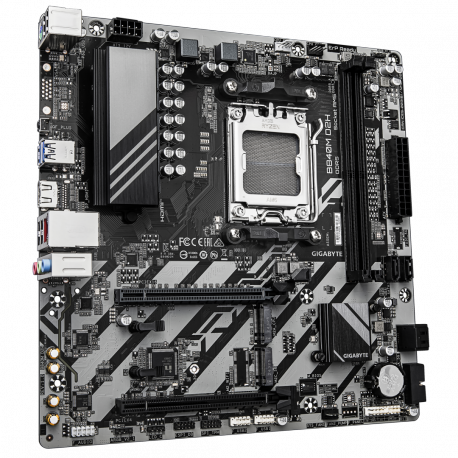

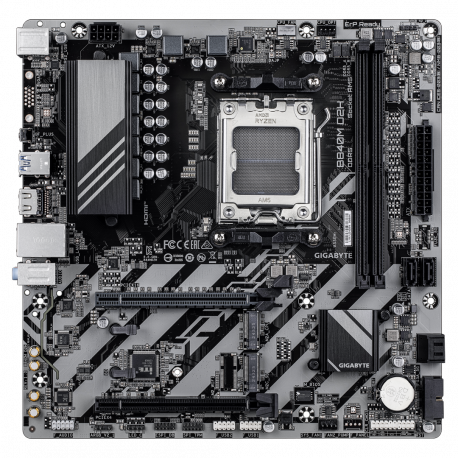

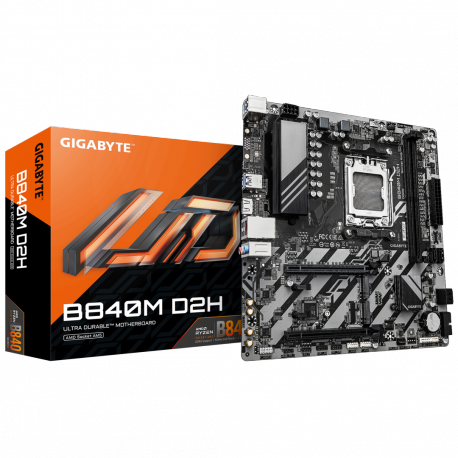

Gigabyte B840M D2H - Motherboard - micro ATX - Socket AM5 - AMD B840 Chipset - USB 3.2 Gen 1 - 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Gigabyte B840M D2H - Motherboard - micro ATX - Socket AM5 - AMD B840 Chipset - USB 3.2 Gen 1 - 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Ražotājs
•GIGABYTE
Ražotāja kods
•B840M D2H
Artikuls
•4243132
Intrastat
•84717020
Kopā pieejams (gab.)
•56
Tuvākā piegāde
•16.03.2026
Product Type
Motherboard - micro ATX
Chipset Type
AMD B840
Processor Socket
Socket AM5
Max Processors Qty
1
Compatible Processors
Ryzen (supports Ryzen 7000/8000/9000 Series)
Max Size
128 GB
Technology
DDR5
Bus Clock
3800 MHz (O.C.), 3600 MHz (O.C.), 3500 MHz (O.C.), 3400 MHz (O.C.), 3333 MHz (O.C.), 3300 MHz (O.C.), 3200 MHz (O.C.), 3100 MHz (O.C.), 3000 MHz (O.C.), 2800 MHz (O.C.), 2600 MHz, 2400 MHz, 2200 MHz
Supported RAM Integrity Check
Non-ECC
Registered or Buffered
Unbuffered
Features
AMD EXPO technology, Intel Extreme Memory Profiles (XMP), dual channel memory architecture
Type
HD Audio (8-channel)
Compliant Standards
High Definition Audio
Network Interfaces
2.5 Gigabit Ethernet
Expansion Slots
1 x CPU
2 x DIMM 288-pin
1 x PCIe 3.0 x16 (x4 mode)
1 x PCIe x16
1 x M.2 socket (2280/2580 M.2 Key M slot)
1 x M.2 socket (2280 M.2 Key M slot)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 3.0 -connectors: 1 x M.2
PCIe 4.0 -connectors: 1 x M.2

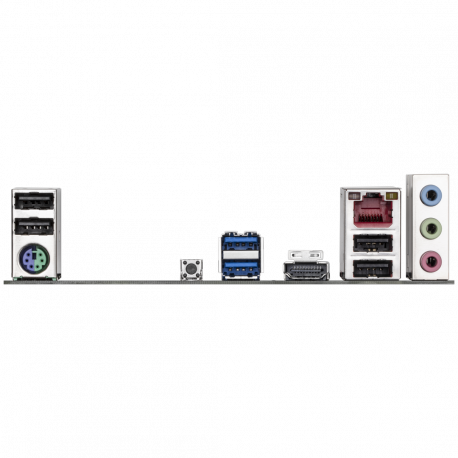

Interfaces
2 x USB 3.2 Gen 1
2 x USB 2.0
1 x HDMI
1 x PS/2 keyboard / mouse
1 x LAN (2.5Gigabit Ethernet)
1 x audio line-in - mini-jack
1 x audio line-out - mini-jack
1 x microphone - mini-jack
Internal Interfaces
2 x USB 3.2 Gen 1 - header
4 x USB 2.0 - header
1 x audio - header
1 x SPI - header
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
BIOS Type
AMI
BIOS Features
UEFI BIOS, WfM 2.0 support, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, PnP 1.0a support
Hardware Monitoring
System voltage, temperature detection, fan control, water cooling flow rate, fan fail warning, fan speed detection
Hardware Features
Chipset heatsink, VRM heatsink design, GIGABYTE Smart Fan 6, RGB FUSION, Q-Flash Plus button, DIY Friendly Design, PCIe EZ Latch, EZ Debug LED
Software Included
Norton Internet Security (OEM Version), LAN manager, GIGABYTE Control Center
Width
24.4 cm
Depth
24.4 cm
