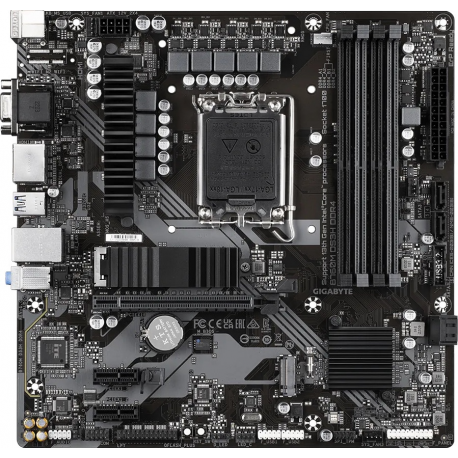

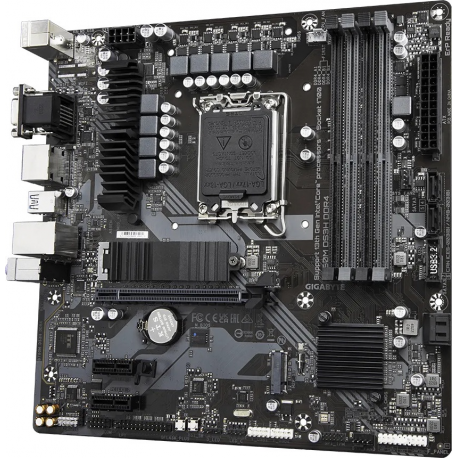

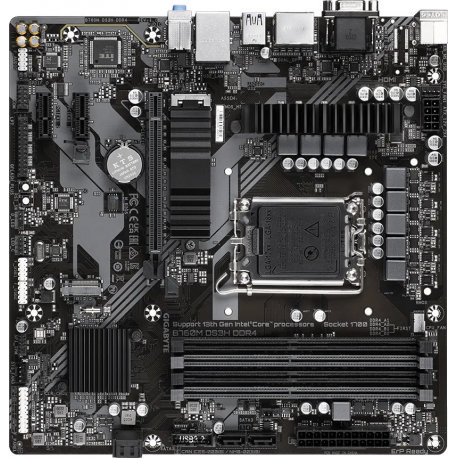

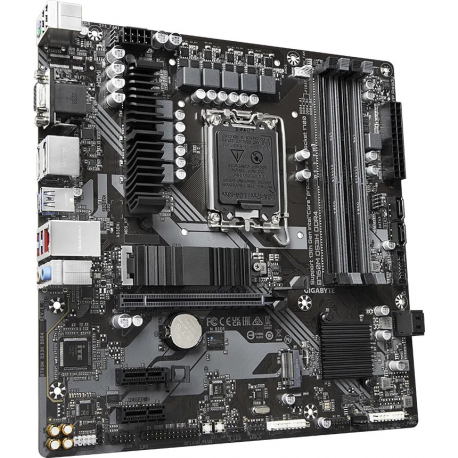

Gigabyte B760M H DDR4 - 1.0 - motherboard - micro ATX - LGA1700 Socket - B760 Chipset - USB 3.2 Gen 1 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Gigabyte B760M H DDR4 - 1.0 - motherboard - micro ATX - LGA1700 Socket - B760 Chipset - USB 3.2 Gen 1 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Ražotājs
•GIGABYTE
Ražotāja kods
•B760M H DDR4
Artikuls
•3150916
Intrastat
•84717020
Kopā pieejams (gab.)
•40
Tuvākā piegāde
•16.03.2026
Product Type
Motherboard - micro ATX
Chipset Type
Intel B760
Processor Socket
LGA1700 Socket
Max Processors Qty
1
Compatible Processors
(supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron)
Max Size
64 GB
Technology
DDR4
Bus Clock
2400 MHz, 2133 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3200 MHz
Supported RAM Integrity Check
Non-ECC, ECC (operate in non-ECC mode)
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Type
HD Audio (8-channel)
Compliant Standards
High Definition Audio
Network Interfaces
Gigabit Ethernet
Expansion Slots
1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x1 ¦ 2 x M.2 socket (2280 M.2 Key M slot)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 2 x M.2

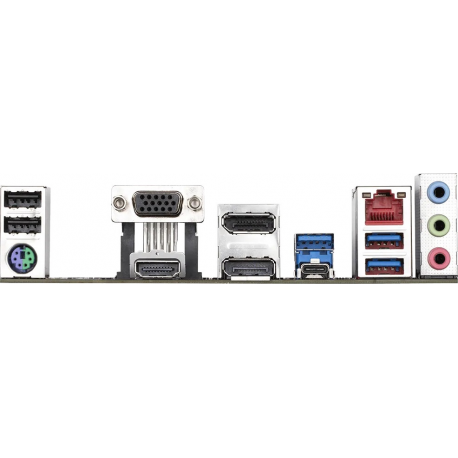

Interfaces
1 x HDMI ¦ 1 x VGA ¦ 2 x USB 2.0 ¦ 4 x USB 3.2 Gen 1 ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x microphone - mini-jack
Internal Interfaces
1 x SPI - header ¦ 1 x audio - header ¦ 1 x SPDIF out - header ¦ 1 x serial - header ¦ 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
BIOS Type
AMI
BIOS Features
WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, PnP 1.0a support
Hardware Monitoring
System voltage, water cooling flow rate, fan fail warning, fan control, fan speed detection, temperature detection
Hardware Features
Q-Flash, DIY Friendly Design, 6+1+1 Phase Power Design, GIGABYTE Smart Fan 6, PCIe EZ Latch, GIGABYTE PerfDrive
Software Included
Norton Internet Security, GIGABYTE Control Center, LAN manager
Compliant Standards
HDCP 2.3
Width
23 cm
Depth
21.5 cm
