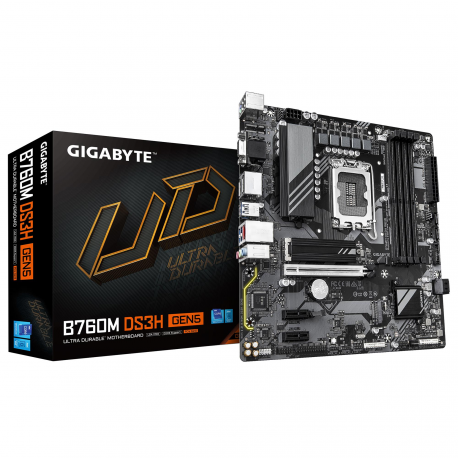

Gigabyte B760M DS3H GEN5 - Motherboard - micro ATX - LGA1700 Socket - B760 Chipset - USB 3.2 Gen 1, USB-C 3.2 Gen2 - 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Gigabyte B760M DS3H GEN5 - Motherboard - micro ATX - LGA1700 Socket - B760 Chipset - USB 3.2 Gen 1, USB-C 3.2 Gen2 - 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Ražotājs
•GIGABYTE
Ražotāja kods
•B760M DS3H GEN5
Artikuls
•4390434
Intrastat
•84717020
Kopā pieejams (gab.)
•18
Tuvākā piegāde
•16.03.2026
Product Type
Motherboard - micro ATX
Chipset Type
Intel B760
Processor Socket
LGA1700 Socket
Max Processors Qty
1
Compatible Processors
(supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron)
Max Size
256 GB
Technology
DDR5
Bus Clock
4400 MT/s, 4800 MT/s, 5200 MT/s, 5600 MT/s
Supported RAM Integrity Check
Non-ECC, ECC (operate in non-ECC mode)
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), supported ECC modules operate in non-ECC mode
Type
HD Audio (8-channel)
Compliant Standards
High Definition Audio
Network Interfaces
2.5 Gigabit Ethernet
Expansion Slots
1 x CPU
4 x DIMM 288-pin
1 x PCIe 5.0 x16
2 x PCIe 3.0 x1
2 x M.2 socket (2280 M.2 Key M slot)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 4.0 -connectors: 2 x M.2
Interfaces
2 x DisplayPort
1 x HDMI
1 x VGA
2 x USB 2.0
3 x USB 3.2 Gen 1
1 x USB-C 3.2 Gen 2
1 x audio line-in - mini-jack
1 x microphone - mini-jack
1 x audio line-out - mini-jack
1 x LAN (2.5Gigabit Ethernet)
1 x PS/2 keyboard / mouse
Internal Interfaces
4 x USB 2.0 - header
2 x USB 3.2 Gen 1 - header
1 x audio - header
1 x parallel - header
1 x serial - header
1 x SPI - header
1 x SPDIF out - header
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
BIOS Type
AMI
BIOS Features
UEFI BIOS, PnP 1.0a support, DMI 2.7 support, WfM 2.0 support, SMBIOS 2.7 support, ACPI 5.0 support
Hardware Monitoring
Fan fail warning, fan control, water cooling flow rate, system voltage, temperature detection, fan speed detection
Hardware Features
6+2+1 Phase Power Design, M.2 Thermal Guard, 6 Layer PCB, Premium Power Choke, VRM Thermal Armor Advanced, High-end Audio Capacitors, Q-Flash Plus, PCIe EZ Latch, Ultra Durable, GIGABYTE Smart Fan 6
Software Included
Norton Internet Security (OEM Version), GIGABYTE Control Center
Compliant Standards
DisplayPort 1.2, HDCP 2.3
Width
24.4 cm
Depth
24.4 cm
